1.8 Order Form
How to order
A type code defines the specific configuration of the VLT
®

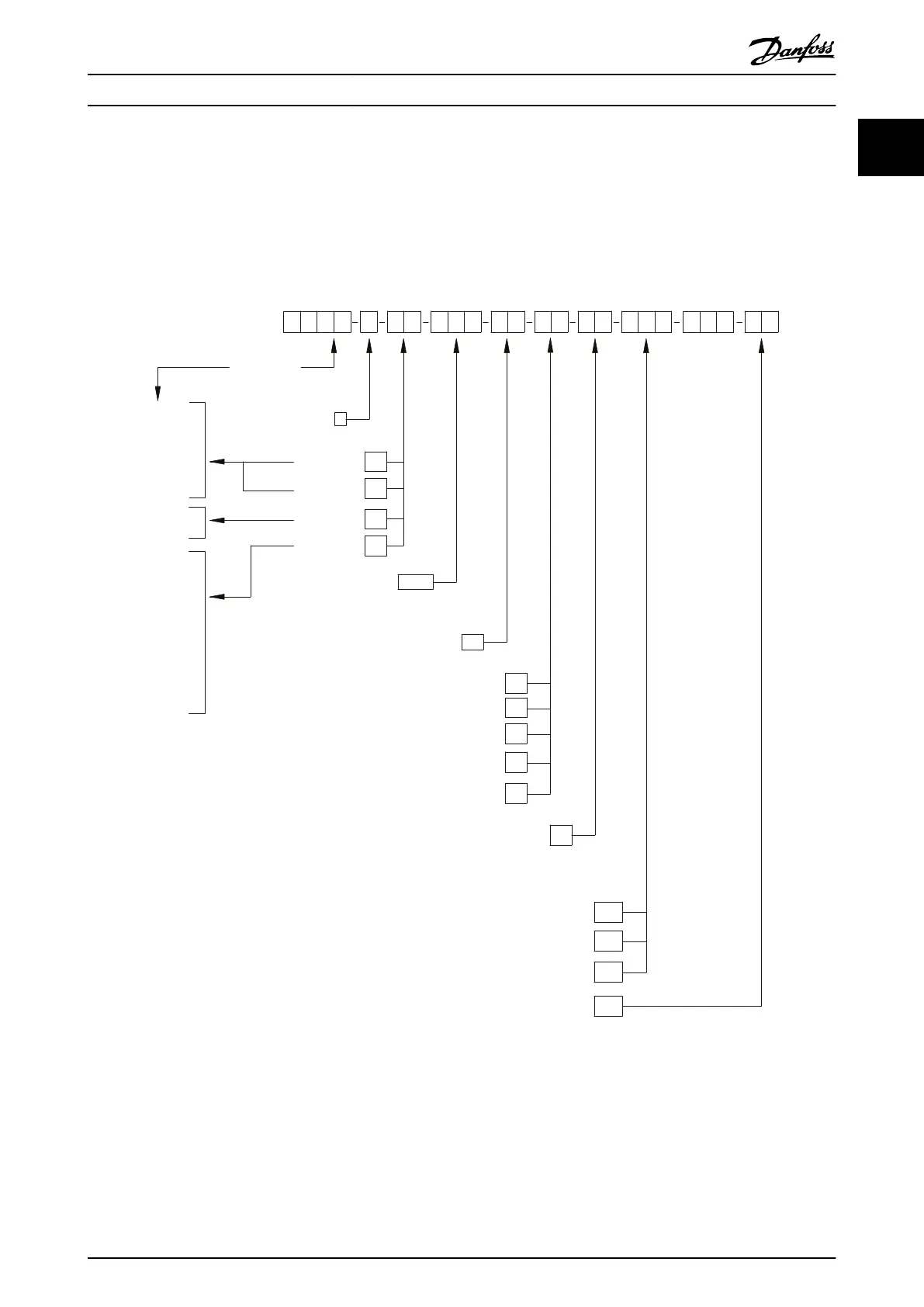

2800 frequency converter. Use Illustration 1.8 to create a type
code string for the desired configuration.
A dedicated drive configurator is available at www.danfoss.com/drives. It is recommended to use the configurator to get the
specific ordering number.
195NA026.24
VLT 2 8 P B 2 0 S R D B F
Power Sizes
e. g. 2815
Application range
Process
P
Mains voltage
1x220-240 V
1x220-240 V
3x200-240 V
3x200-240 V
S2
D2
T2
T4
1)
2)
3x380-480 V
5)
6)
2805 0.55 kW
2807 0.75 kW
2811 1.1 kW
2815 1.5 kW
2822 2.2 kW
2830 3.0 kW
2840 4.0 kW
2855 5.5 kW
2875 7.5 kW
2880 11.0 kW
2881 15.0 kW
2882 18.5 kW
2803 0.37 kW
2805 0.55 kW
2807 0.75 kW
2811 1.1 kW
2815 1.5 kW
2822 2.2 kW
2840 3.7 kW
2822 2.2 kW
2840 3.7 kW
Enclosure
IP 20
Standard with brake
B20
SB
RFI-lter
Without lter
With integral 1A lter
(2803-2875)
With integral 1B lter
(2880-2882)
With integral 1A lter
For RCD use
With integral 1A lter
For IT mains (2805-2840)
R0
R1
R3
R4
R5
3)
4)
A 0 0 C 1
Display unit
with built-in display unit
LCP display unit is an option
Code no. : 175N0131
Cable for LCP - Code no.: 175Z0929
DB
Fieldbus
Without eldbus
With Probus DP 12 MBit/s
With DeviceNet
F00
F12
F30
C1
1) S2 = Unit can only be ordered with RFI lter
2) D2 = Unit cannot be ordered with RFI lter
3) = Unit can only be ordered with S2
4) = Unit can only be ordered with T4
5) = Only available in 2822PD2 STRO version
6) = Only available in 2840PD2 STRO version
Coating
Coated printed circuit boards
B
Illustration 1.8 Type Code Definition
