Danfoss VLT AQUA Drive FC 202

-
-
e30bu192.10
L1-L2
-FC4
-TA4
2
3
#
-FC6
-XD1
4 A
1
2

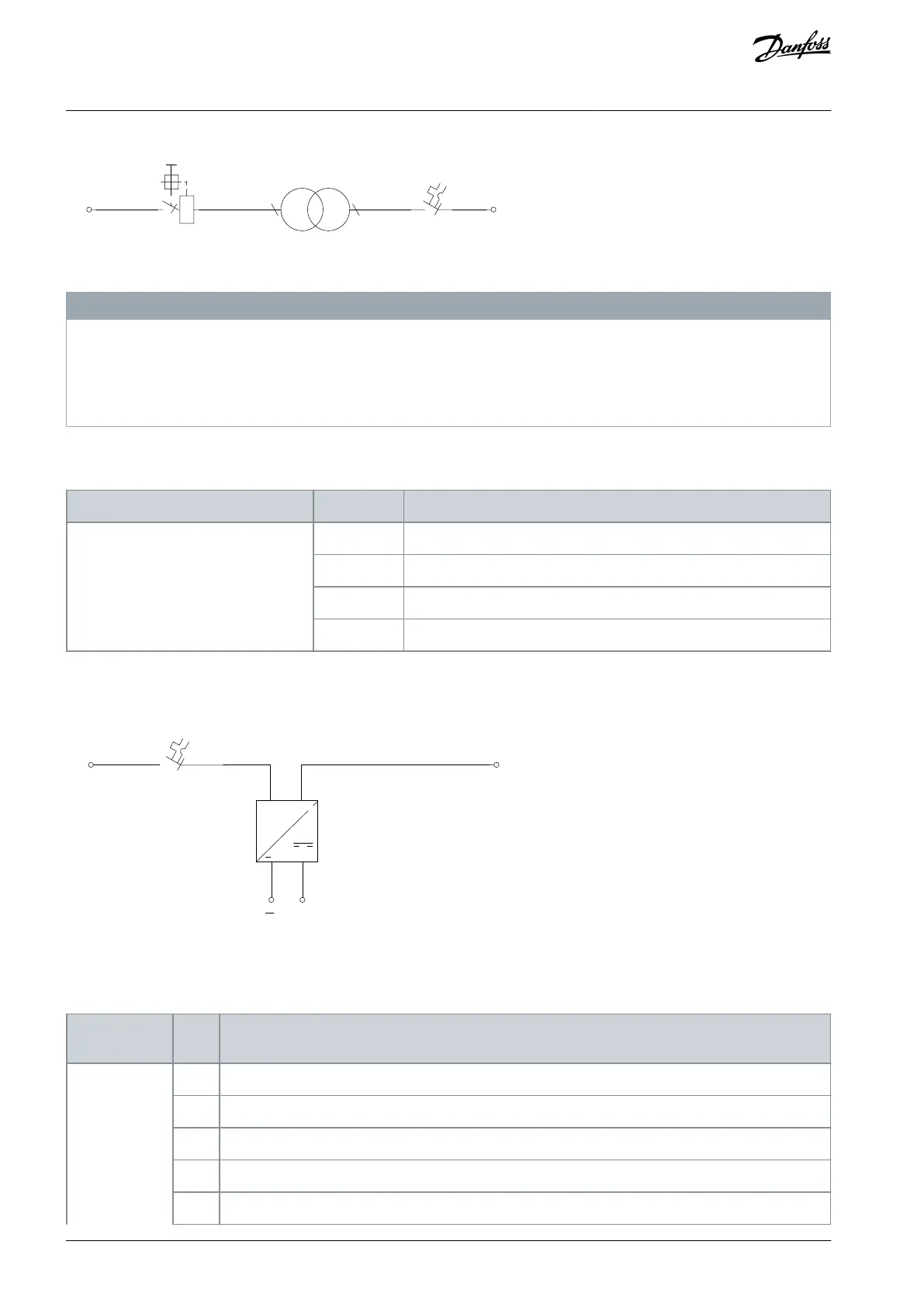

Illustration 42: Auxiliary Voltage Transformer Terminals
N O T I C E
AUXILIARY COMPONENT FAILURE
Incorrect voltage or incorrect tapping installation will cause other auxiliary components in the control compartment to fail.
When tapping the transformer, make sure to apply the correct voltage for the drive.
Use the correct tapping and trip settings.
5.7.6.3 +24 V DC External Supply
Table 56: Auxiliary Supply Type Codes
Character position
Code
Description
21
4
230 V AC internal+24 V DC internal
5
230 V AC external+24 V DC internal
8
120 V AC internal+24 V DC internal
9
120 V AC external+24 V DC internal
The 24 V DC external supply option enables other auxiliary options to be connected to a 24 V DC supply within the control compart-
ment.
e30bu194.10
L1-L2
-FC7
-TB7
1
24 V
-XD1
2 A
N
L
+
~
+
60 W
Illustration 43: 24 V DC External Supply Terminals
5.7.6.4 AC Customer Socket
Table 57: Auxiliary Function Type Codes
Character posi-
tion
Code
Description
23–24
A1
AC socket + cabinet light
AA
AC socket + cabinet light + extended I/O terminals
AB
AC socket + cabinet light + cabinet heater
AC
AC socket + cabinet light + motor heater control
AD
AC socket + cabinet light + insulation monitor
AQ262141056213en-000201 / 130R088276 | Danfoss A/S © 2020.09
Electrical Installation
VLT® AQUA Drive FC 202
Operating Guide
