3.6.2 Control Compartment Door
e30bu142.11
4
6
7
8
5
3
2
1
9

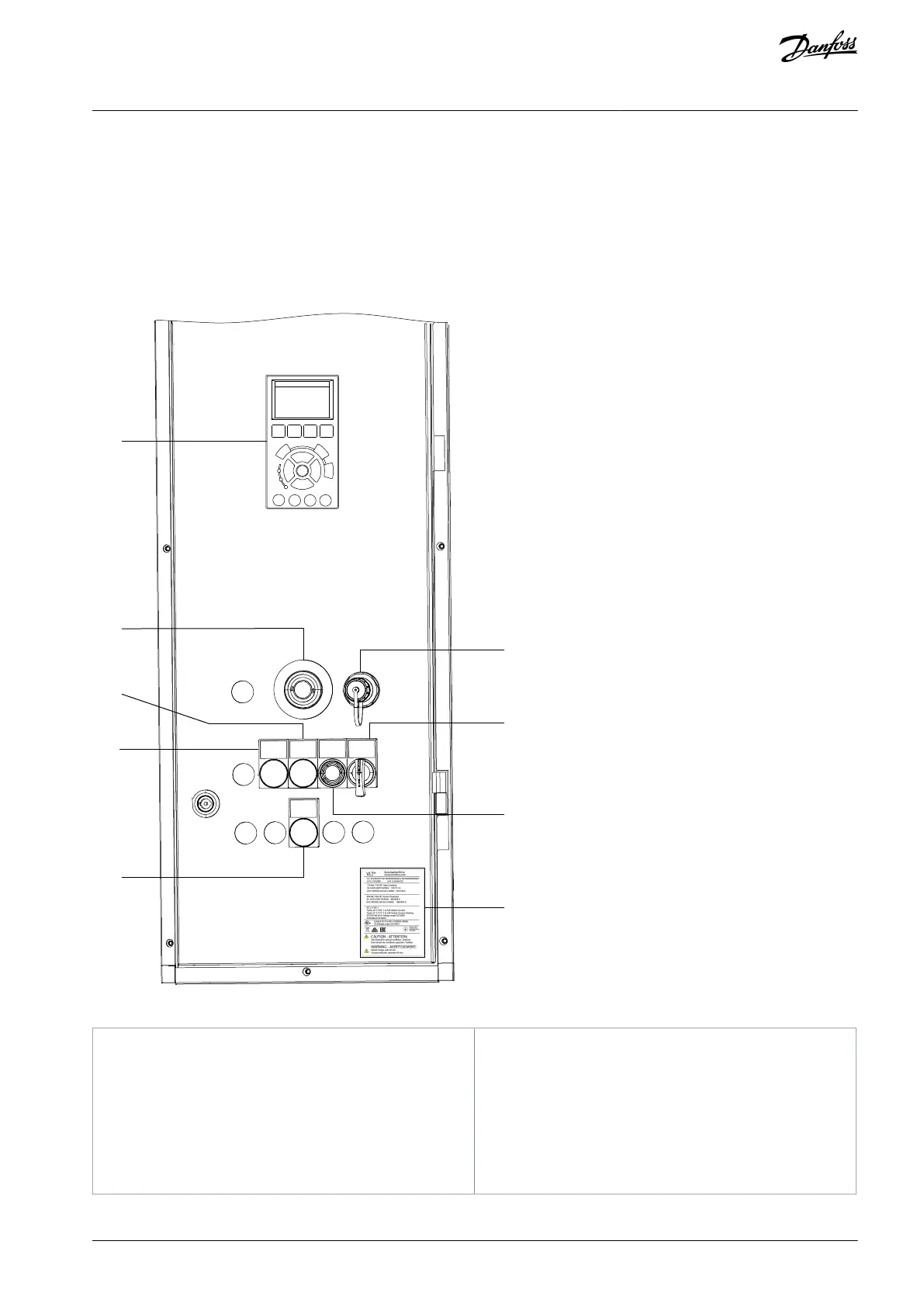

Illustration 8: Exterior Door of Control Compartment (Shown with All Options)
1
Local control panel (LCP)
2
Emergency push-button
3
Fault indicator light
4
Run indicator light
5
Insulation fault indicator light
6
USB slot
7
0–1 Start switch
8
Reset button
9
Nameplate
