Danfoss VLT AQUA Drive FC 202

5.6.2 D10h Wiring Harness
-XDL.1
-XD4.1
-XD11.1
1
2
3
4
e30bu179.11

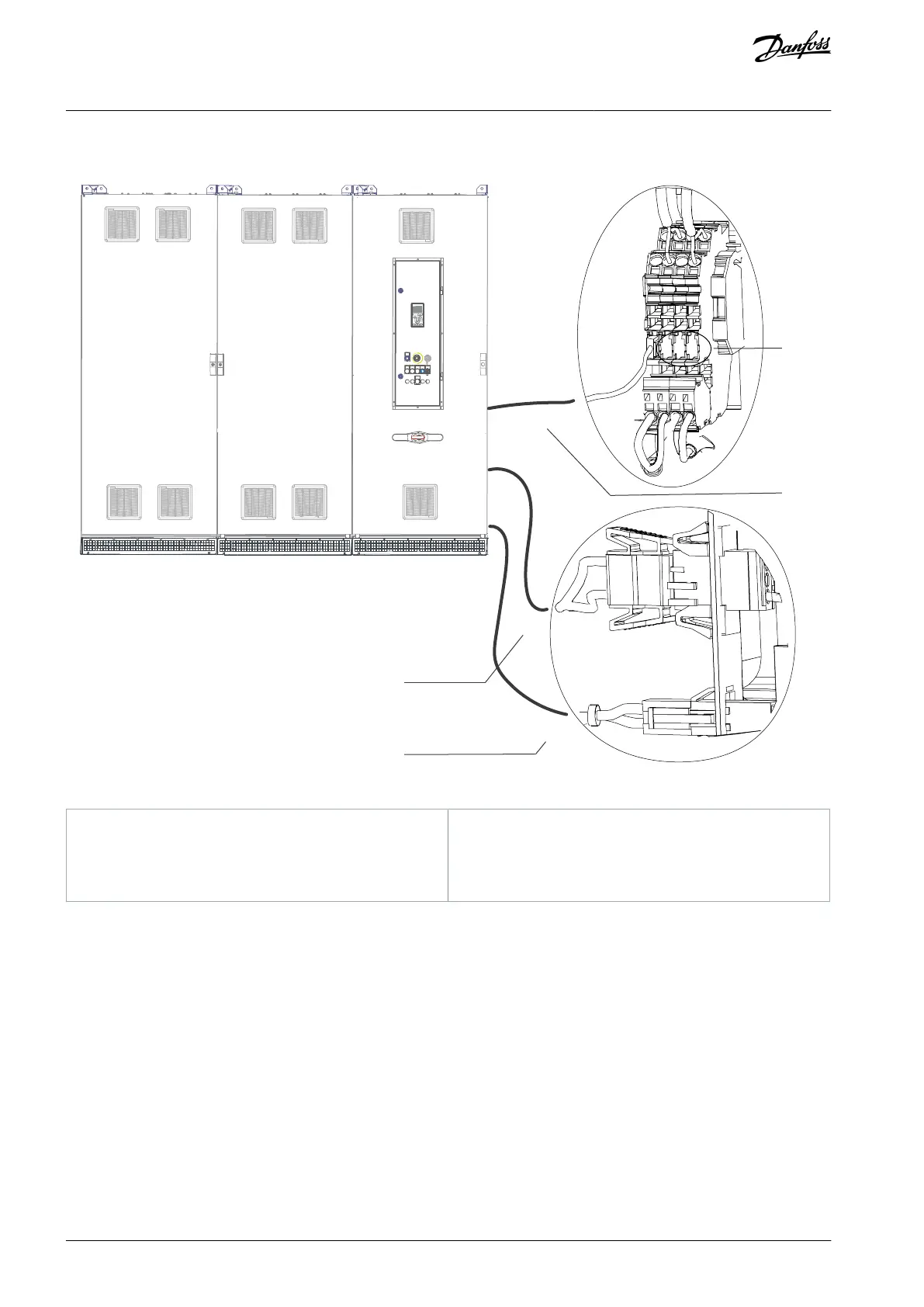

Illustration 23: Split Shipment Electrical Connections (Input Filter Cabinet + Input Power Options Cabinet + D10h Drive Cabinet)
1
DC-link harness to fan supply in output lter cabinet
2
Cabinet heater supply harness to output lter cabi-
net
3
Additional terminal connections
4
Thermal protection wiring harness to output lter
cabinet
