3.3 Location of Options within an Enclosed Drive
e30bu177.11
1
2
3
4
5
6
7
8
9
10

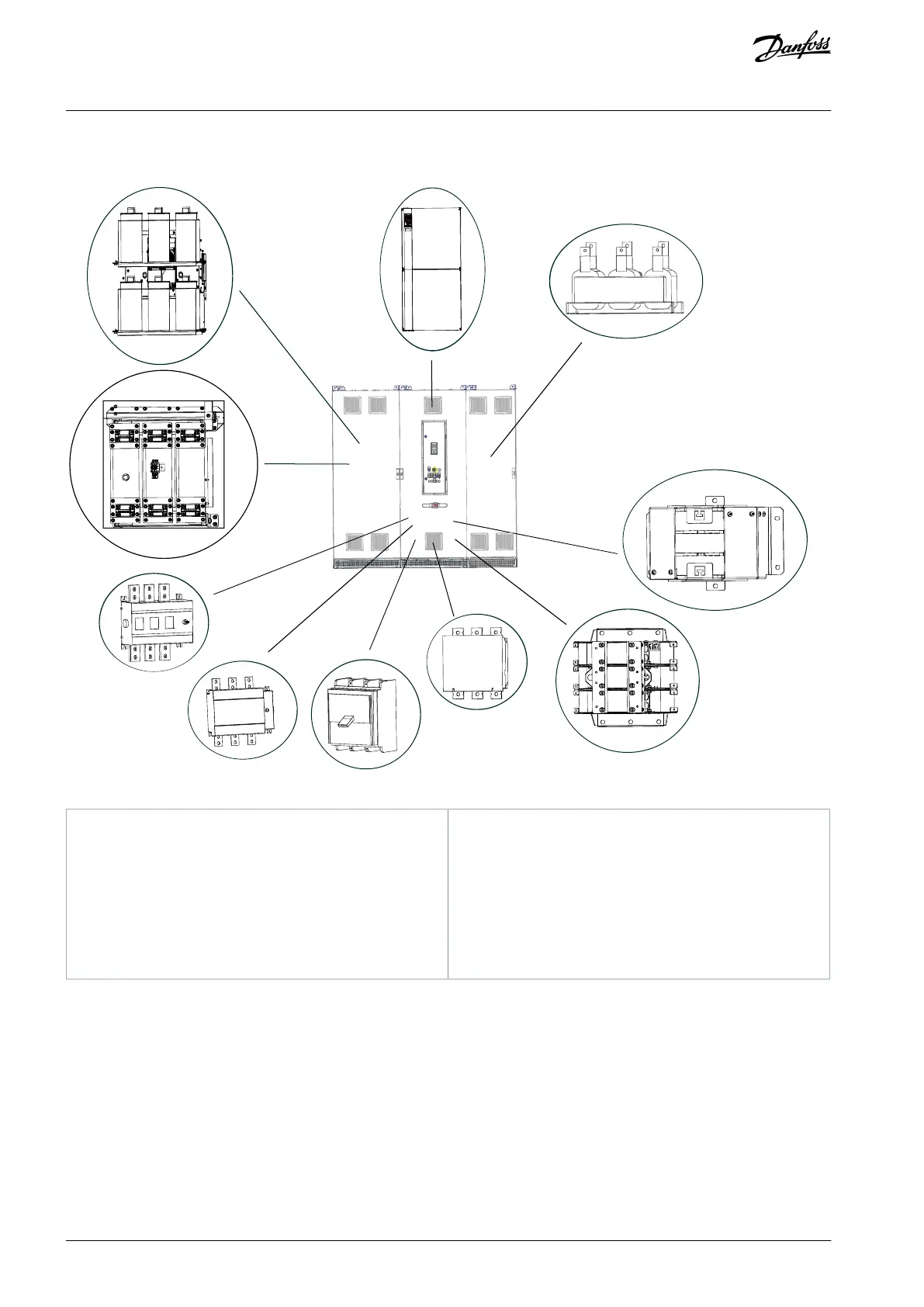

Illustration 4: Visual Representation of a D9h Enclosure and the Locations of Available Options
1
Passive harmonic lter (PHF)
2
Line reactor
3
Non-fusible disconnect
4
Fusible disconnect
5
Molded-case circuit breaker (MCCB)
6
Mains contactor
7
dU/dt lter
8
Common-mode lter
9
Sine-wave lter
10
Drive module (varies in power rating)
