Danfoss VLT AQUA Drive FC 202

4.
5.
6.
Connect the ground wire to the nearest grounding terminal in accordance with the grounding instructions provided in
5.8.6 Connecting to Ground.
Connect the 3-phase AC motor cables to terminals U (T1), V (T2), and W (T3).
Tighten the terminals in accordance with the specications shown in 10.11 Fastener Torque Ratings.
Example
e30bu171.10
1
3
4
5
6
2

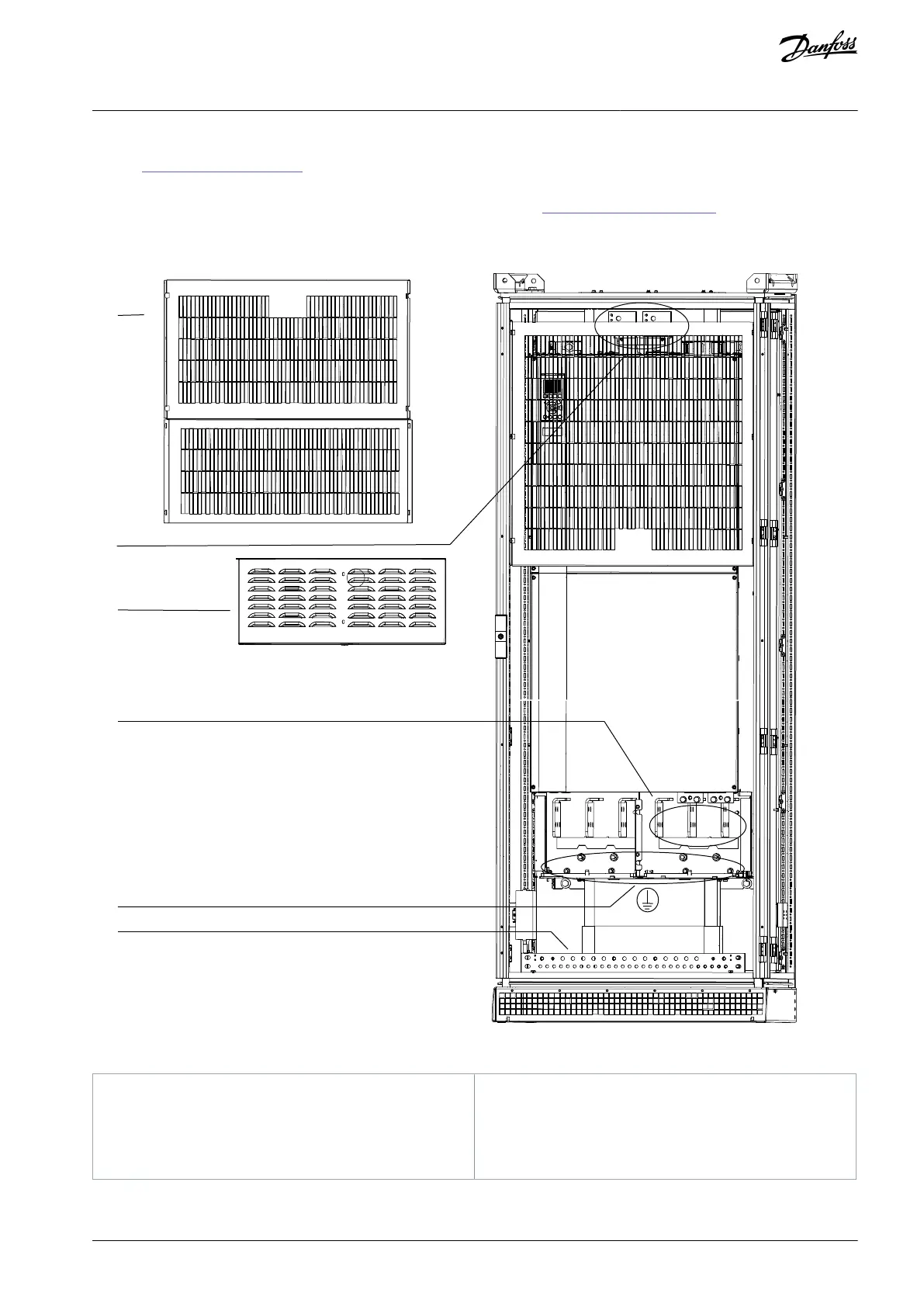

Illustration 50: Connection Points for Drive Module to Motor (E6h Model Shown)
1
Lower cover
2
DC terminals
3
Terminal cover
4
Motor terminals
5
Ground terminals on drive module
6
Grounding bar
5.8.4 Connecting the Sine-wave Filter to the Motor
