Hole number and recommended use
Dimensions
(1)
Nearest metric
3) Brake/loadsharing
3/4
28.4
M25
4) Control cable
1/2
22.5
M20
5) Control cable
1/2
22.5
M20
6) Control cable
1/2
22.5
M20
1
Tolerance ±0.2 mm.

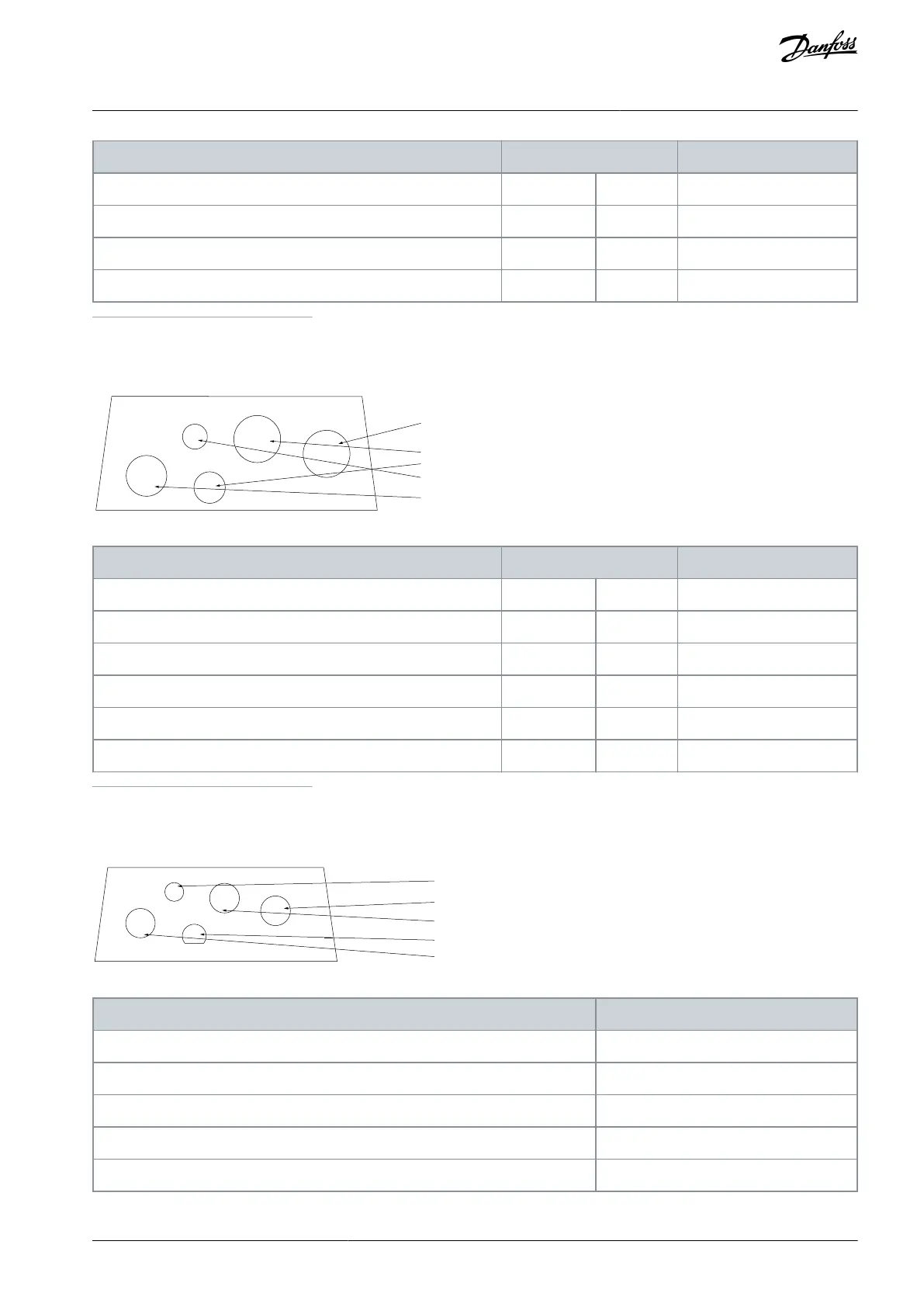

10.4.3.3 Entry Holes, Enclosure Size A4, IP55
[5]
[3]
[2]
[4]
[1]
e30bb663.10
Table 49: Dimensions of Entry Holes for Enclosure Size A4, IP55
Hole number and recommended use
Dimensions
(1)
Nearest metric
UL [in]
[mm]
1) Mains
3/4
28.4
M25
2) Motor
3/4
28.4
M25
3) Brake/loadsharing
3/4
28.4
M25
4) Control cable
1/2
22.5
M20
5) Removed
1
Tolerance ±0.2 mm.
10.4.3.4 Entry Holes, Enclosure Size A4, IP55 Threaded Gland Holes
[4]
[2]
[3]
[5]
[1]
e30bb665.10
Table 50: Dimensions of Entry Holes for Enclosure Size A4, IP55 Threaded Gland Holes
Hole number and recommended use
Metric thread size
1) Mains
M25
2) Motor
M25
3) Brake/loadsharing
M25
4) Control cable
M16
5) Control cable
M20
AJ300847815559en-000101 / 130R0337 | 115Danfoss A/S © 2020.09
Electrical Installation
Considerations
VLT® AQUA Drive FC 202
Design Guide
