1
3
2
e30bf904.11

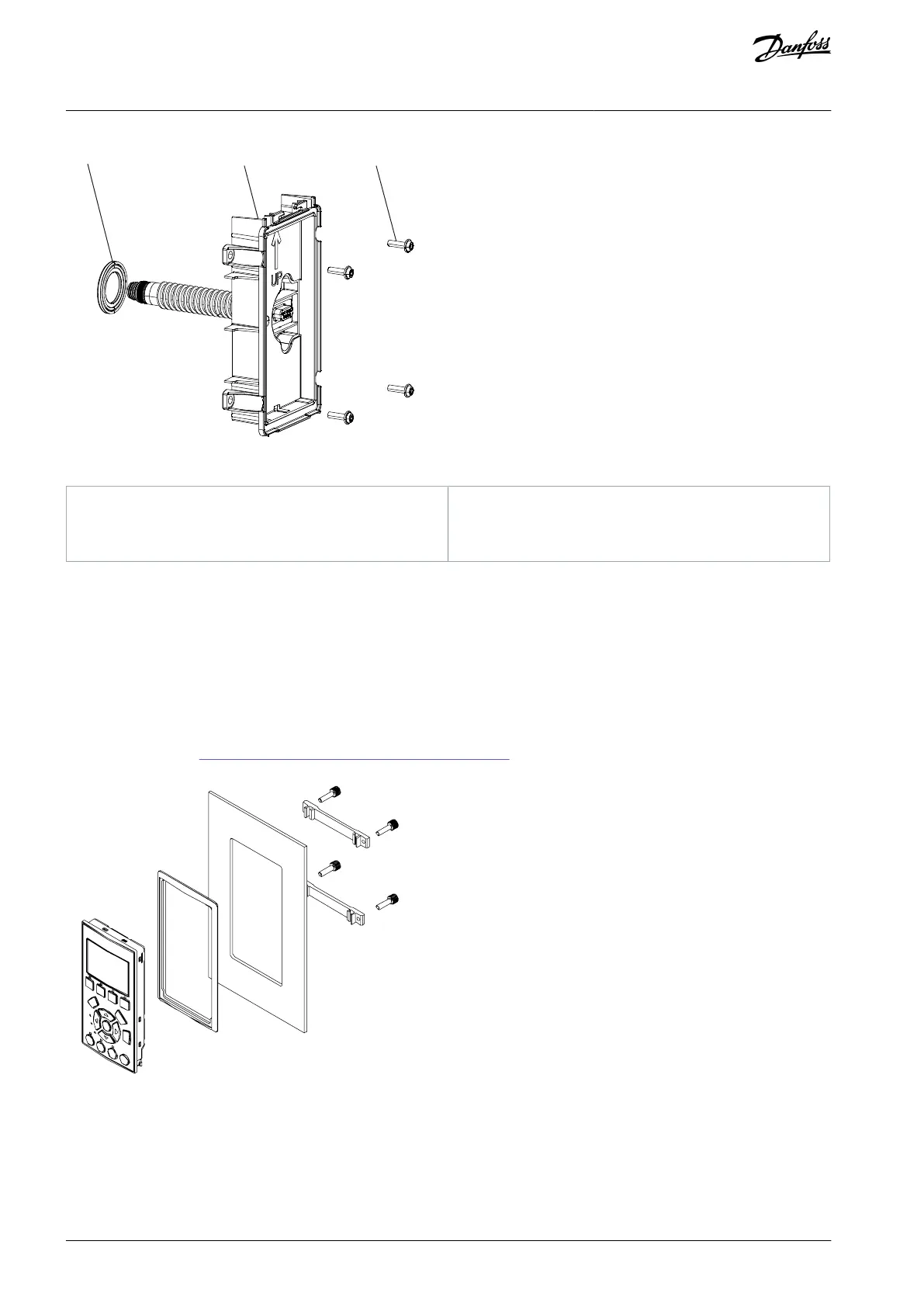

Illustration 49: Base Plate with Sub-D Connector
1
Gasket
2
Base plate
3
Screws
7.8.4.2 Panel Mounting Kit for LCP 102, LCP 101, and LCP 103
The kit allows the LCP to move the LCP to the front of a cabinet.
The kit contains the following parts:
Optional: Graphical LCP 102, numerical LCP 101, or Wireless Control Panel LCP 103.
3 m (10 ft) cable to the LCP.
Gasket.
Fasteners.
For order number, see: 13.2.7 Order Numbers for Local Control Panel Options.
130BA138.11
AJ300847815559en-000101 / 130R033768 | Danfoss A/S © 2020.09
Options and Accessories Overview
VLT® AQUA Drive FC 202
Design Guide
