Table 23: Enclosure Dimensions with installed IP21/Nema Type 1 Kit
Enclosure size
Height A [mm (in)]
Width B [mm (in)]
Depth C
(1)
[mm (in)]
A2
372 (14.6)
90 (3.5)
205 (8.1)
A3
372 (14.6)
130 (5.1)
205 (8.1)
B3
475 (18.7)
165 (6.5)
249 (9.8)
B4
670 (26.4)
255 (10.1)
246 (9.7)
C3
755 (29.7)
329 (13.0)
337 (13.3)
C4
950 (37.4)
391 (15.4)
337 (13.3)
1
If an A and/or B option is used, the depth increases.

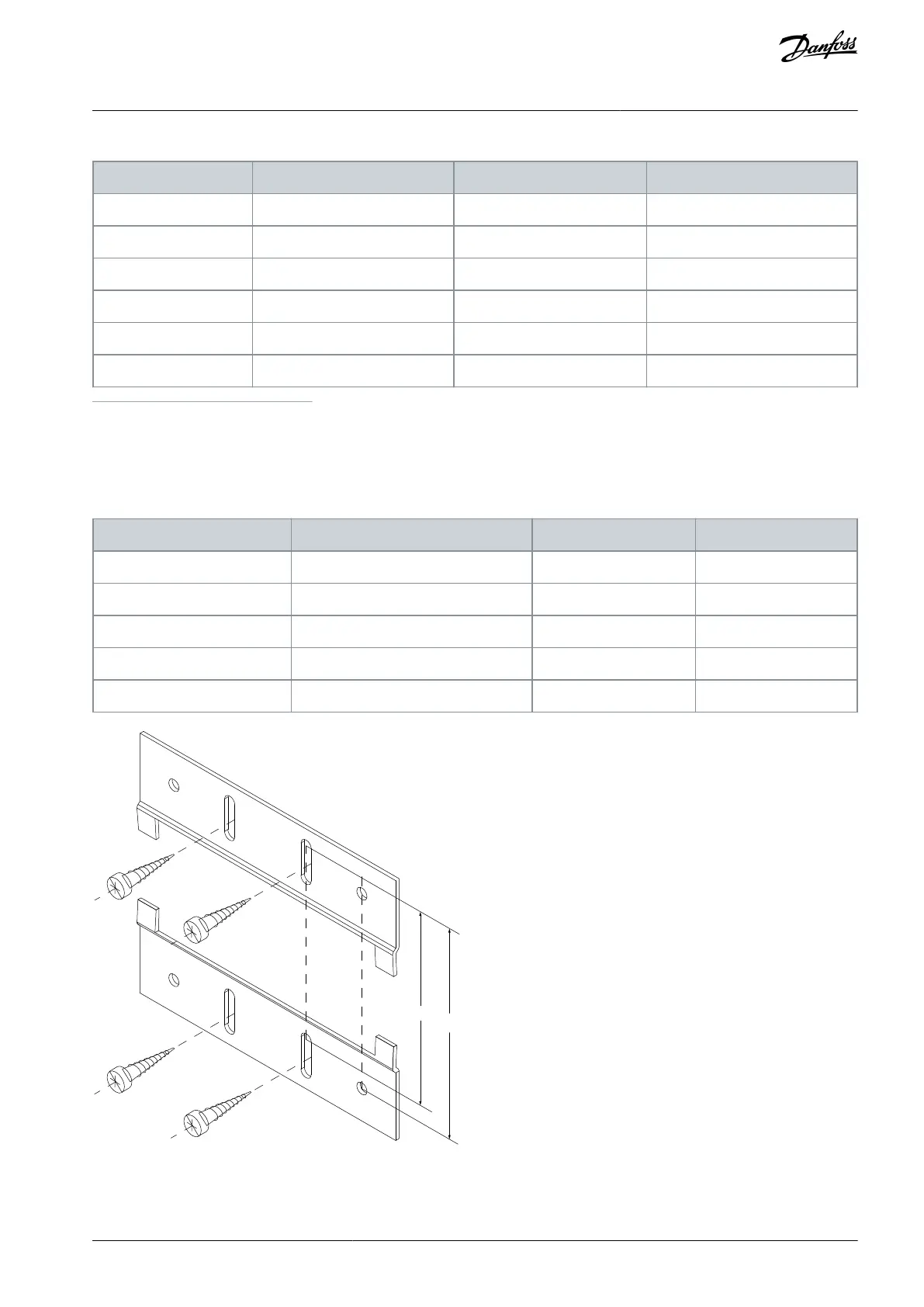

7.8.3 Mounting Brackets for VLT® FC Series Enclosure Sizes A5, B1, B2, C1, and C2
The kits contain an upper and a lower bracket for the respective enclosure size.
Table 24: Mounting Brackets, Dimensions
Enclosure size
Protection Rating
A [mm (in)]
B [mm (in)]
A5
IP55/66
480 (18.9)
495 (19.5)
B1
IP21/55/66
535 (21.1)
550 (21.7)
B2
IP21/55/66
705 (27.8)
720 (28.4)
C1
IP21/55/66
730 (28.7)
745 (29.3)
C2
IP21/55/66
820 (32.3)
835 (32.9)
e30ba845.10
A
B
AJ300847815559en-000101 / 130R0337 | 65Danfoss A/S © 2020.09
Options and Accessories Overview
VLT® AQUA Drive FC 202
Design Guide
