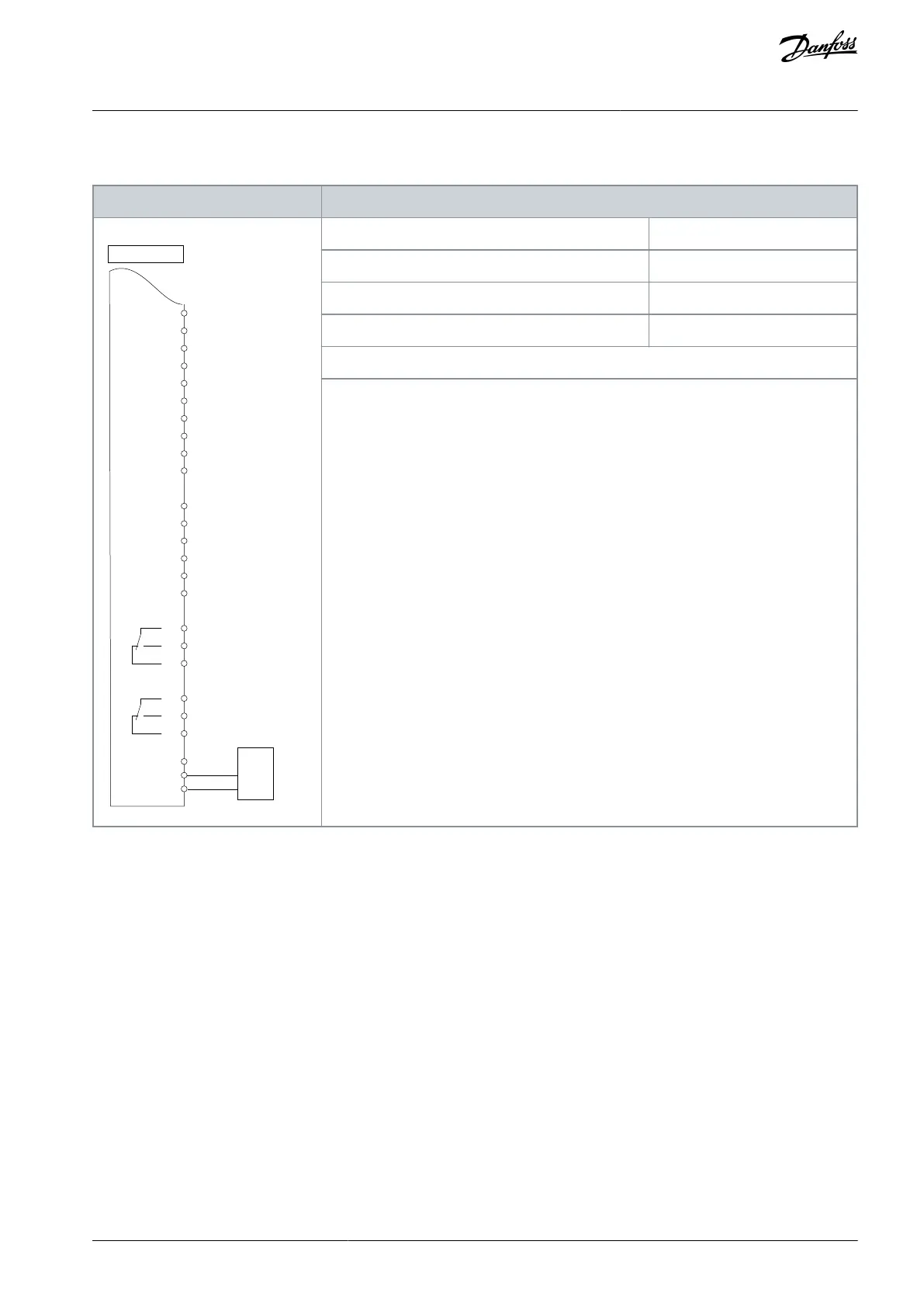

12.1.8 Wiring Conguration: RS485
Table 119: RS485 Network Connection
Parameter
+24 V
+24 V
D IN
D IN
D IN
COM
D IN
D IN
D IN
D IN
+10
V
A IN
A IN
COM
A OUT
COM
R1
R2
12
13
18
19
20
27
29
32
33
37
50
53
54
55
42
39
01
02
03
04
05
06
-
61
68
69
RS485
+
e30bb685.11
Drive
Function
Setting
Parameter 8-30 Protocol
FC*
Parameter 8-31 Address
1*
Parameter 8-32 Baud Rate
9600*
*=Default value
Notes/comments:
Select protocol, address, and baud rate in the above-mentioned parameters.
D IN 37 is an option.
AJ300847815559en-000101 / 130R0337 | 175Danfoss A/S © 2020.09
Basic I/O Congurations
VLT® AQUA Drive FC 202
Design Guide
