Danfoss VLT AQUA FC 202 - 3.6.22 Electrical Installation, Control Terminals

e30bt621.12
D
C
A
G

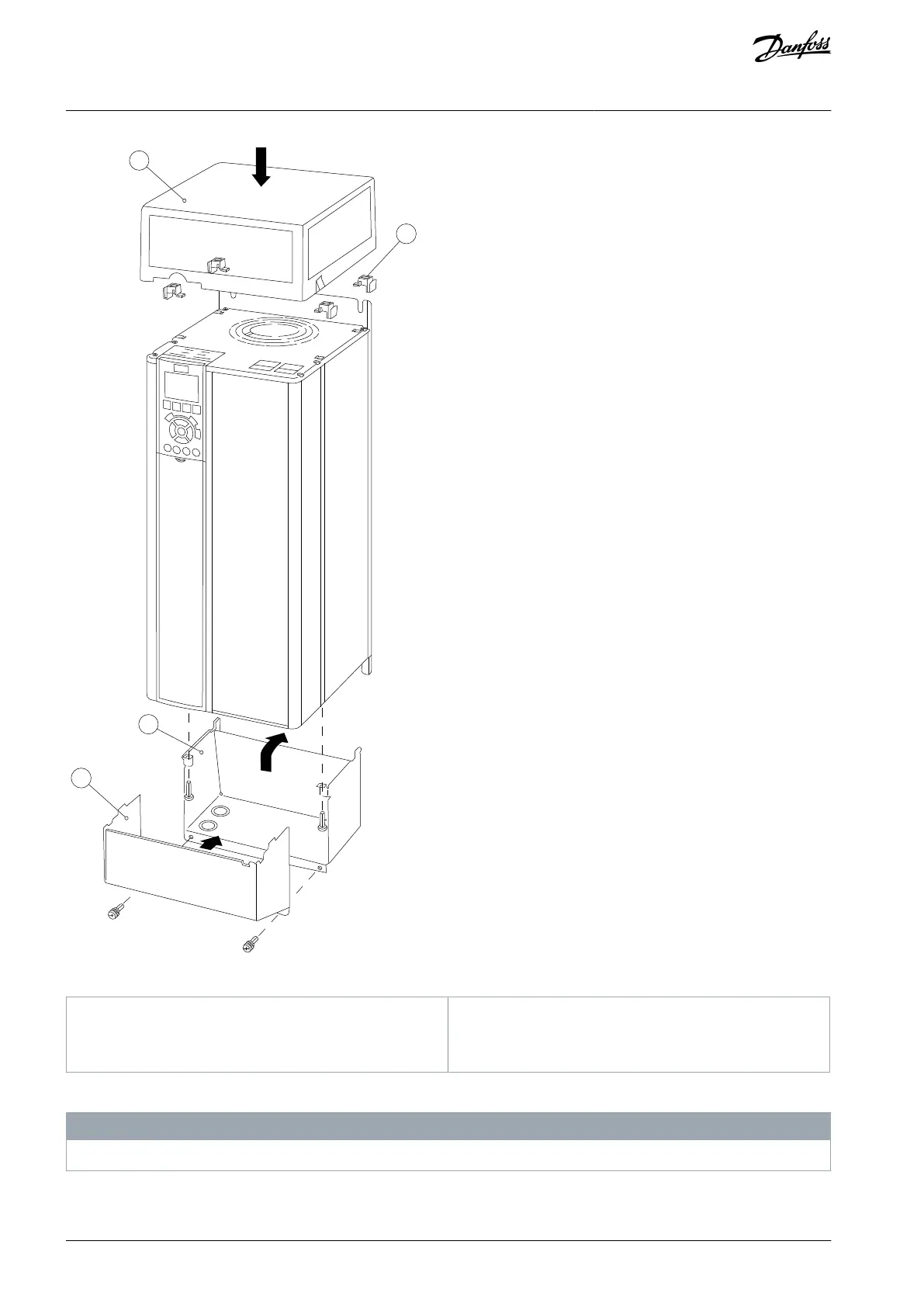

Illustration 46: IP21/Nema Type 1 Kit on B4/C3/C4 Enclosure
A
Top cover
C
Base part
D
Base cover
G
Top clip
When option module A and/or option module B is/are used, t the brim (B) to the top cover (A).
N O T I C E
Side-by-side installation is not possible when using the IP21/IP4X/Nema Type 1 Enclosure Kit.
