5.2 Local Control Panel Operation
e30bf714.11
Auto
On
Reset
Hand
On
Off
Status
OK
Status
1(1)
36.4 kW
Auto Remote Ramping
0.000
On
Alarm
Warn.
7.83 A
799 RPM
53.2 %
1
2
3
16
17
4
15
14
13
12
5
6
7
8 9 10 11

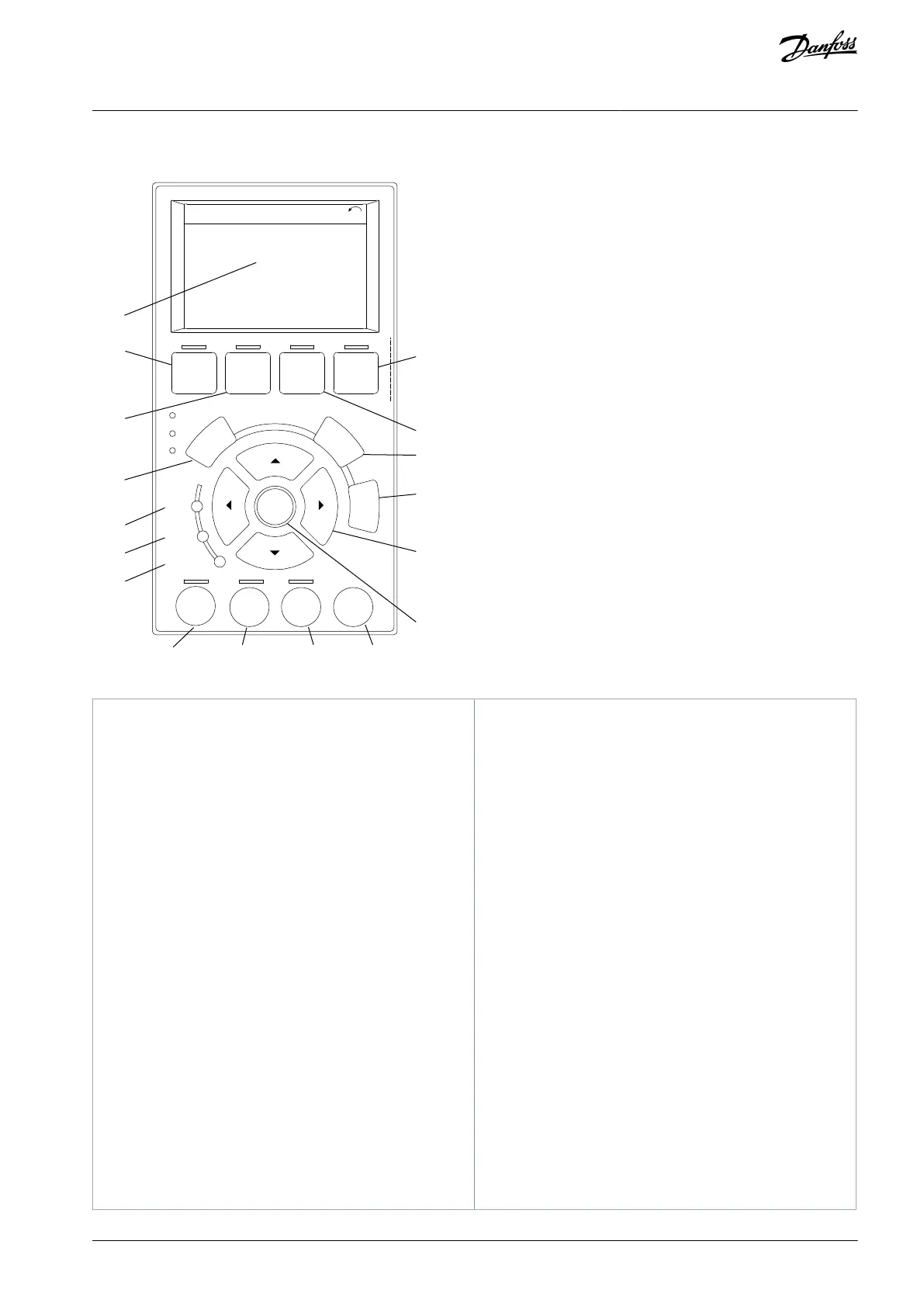

Illustration 9: Graphical Local Control Panel (GLCP)
The information shown in the display area depends
on the selected function or menu (in this case Quick
Menu Q3-13 Display Settings).
[Status] shows operational status.
[Quick Menu] allows access to programming param-
eters for initial set-up instructions and many de-
tailed application instructions.
[Back] reverts to the previous step or list in the menu
structure.
A green indicator light indicates that power is on.
A yellow indicator light comes on when a warning is
active. A text appears in the display area identifying
the problem.
A red flashing indicator light indicates a fault condi-
tion, and an alarm text is shown.
[Hand On] puts the drive in local control mode, so
that it responds to the LCP.
An external stop signal by control input or serial
communication overrides local [Hand On] key.
[Off] stops the motor but does not remove power to
the drive.
[Auto On] puts the system in remote operational
mode.
Responds to an external start command by con-
trol terminals or serial communication.
[Reset] resets the drive manually after a fault has
been cleared.
[OK] gives access to parameter groups or enables a
selection.
[▵][▹] [▿] [◃] enables moving between items in the
menu.
[Info] shows a definition of the function being
shown.
[Cancel] cancels the last change or command as
long as the display mode is not changed.
[Main Menu] gives access to all programming pa-
rameters.
[Alarm Log] shows a list of current warnings, the last
10 alarms, and the maintenance log.
AQ267037727118en-000101 / 130R0300 | 23Danfoss A/S © 2021.01
Commissioning
VLT® AutomationDrive FC 301/FC 302
Operating Guide
