Danfoss VLT AutomationDrive FC 301 Operating Guide

e30bb805.13
Speed
Start/Stop (18)

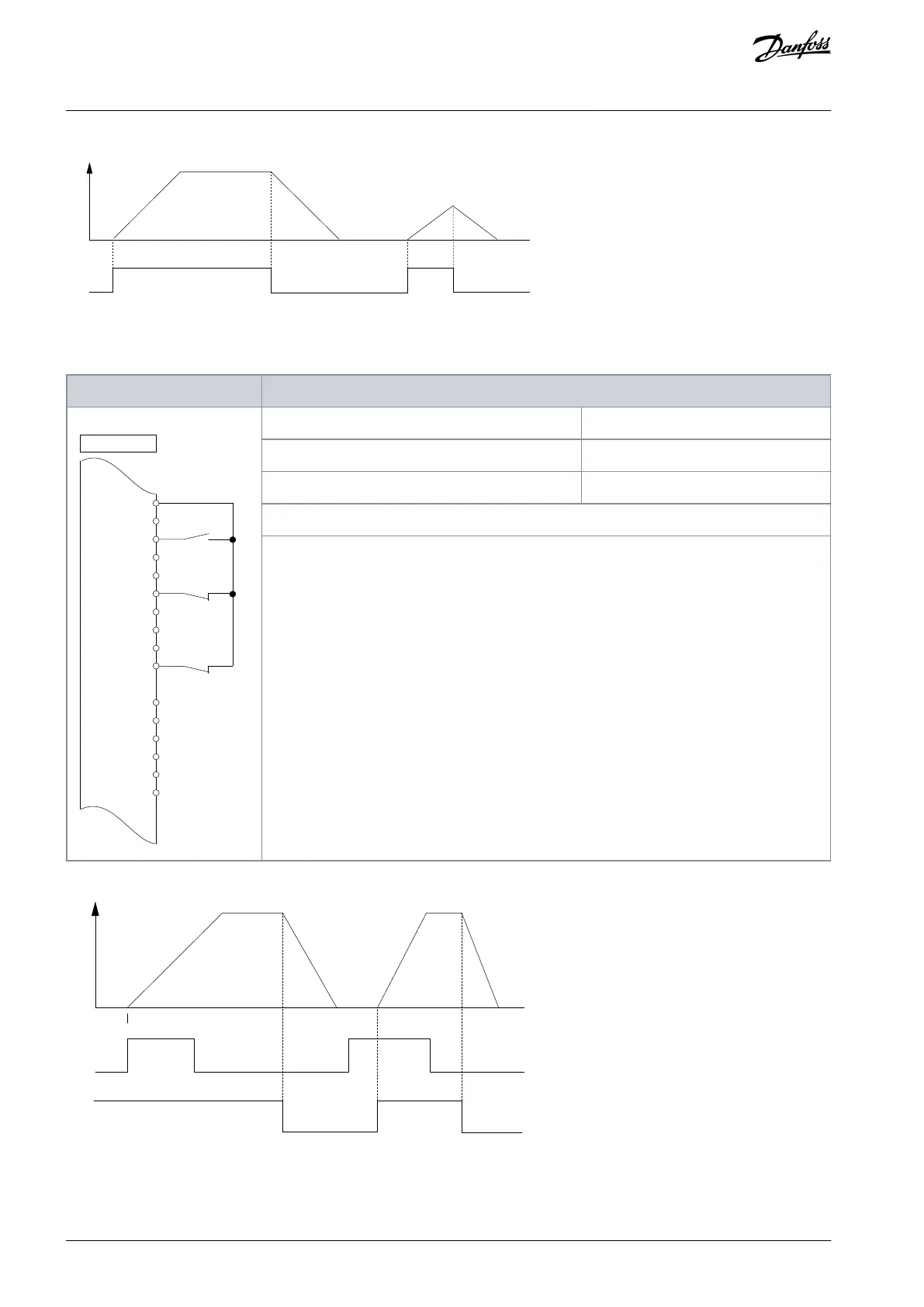

Illustration 12: Start/Stop Command with Safe Torque Off
Table 20: Pulse Start/Stop
Parameter
+24 V
+24 V
D IN
D IN
D IN
COM
D IN
D IN
D IN
D IN
+10
V
A IN
A IN
COM
A OUT
COM
12
13
18
19
20
27
29
32
33
37
50
53
54
55
42
39
e30bb803.10
Drive
Function
Setting
Parameter 5-10 Terminal 18 Digital Input
[9] Latched Start
Parameter 5-12 Terminal 27 Digital Input
[6] Stop Inverse
*=Default value
Notes/comments:
If parameter 5-12 Terminal 27 Digital Input is set [0] No operation, a jumper wire to terminal 27 is
not needed.
D IN 37 is an option.
Speed
e130bb806.11
Latched Start (18)
Stop Inverse (27)
Illustration 13: Latched Start/Stop Inverse
AQ267037727118en-000101 / 130R030034 | Danfoss A/S © 2021.01
Basic I/O Configuration
VLT® AutomationDrive FC 301/FC 302
Operating Guide
