Clockwise (CW) direction means channel A is 90 electrical degrees before channel B.
Counterclockwise (CCW) direction means channel B is 90 electrical degrees before A.
B
A
B
A
1
e30ba646.10
2

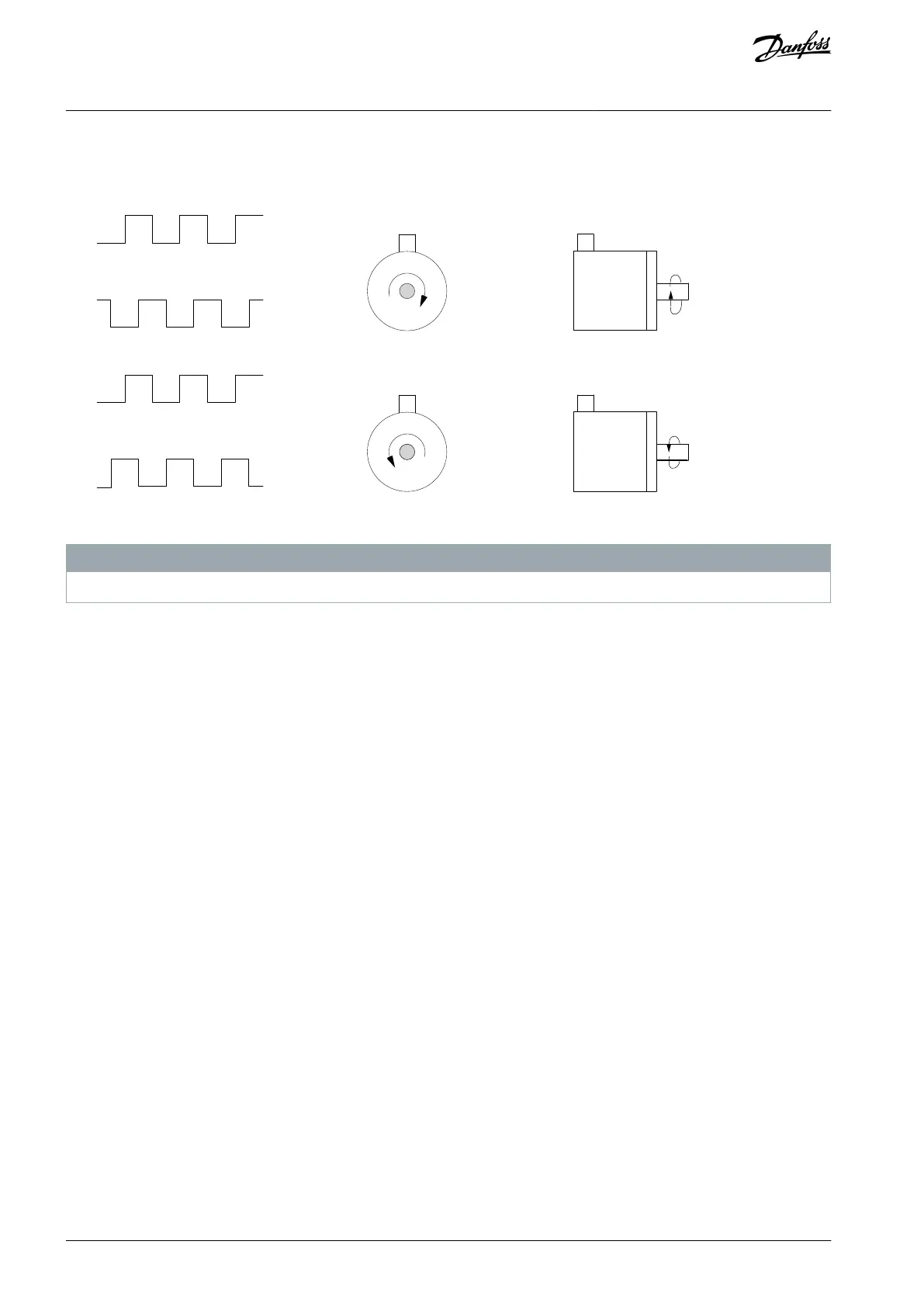

Illustration 15: Determining Encoder Direction
N O T I C E
Maximum cable length is 5 m (16 ft.)
AQ267037727118en-000101 / 130R030040 | Danfoss A/S © 2021.01
Basic I/O Configuration
VLT® AutomationDrive FC 301/FC 302
Operating Guide
