3-17 Reference 3 Source
Option: Function:
Select the reference input to be used
for
the third reference signal.
3-15 Reference 1 Source, 3-16 Reference
2 Source and 3-17 Reference 3 Source
define up to three different reference
signals. The sum of these reference
signals defines the actual reference.
[0] * No function
[1] Analog Input 53
[2] Analog Input 54
[7] Pulse input 29
[8] Pulse input 33
[20] Digital pot.meter
[21] Analog input X30/11
[22] Analog input X30/12
[23] Analog Input X42/1
[24] Analog Input X42/3
[25] Analog Input X42/5
[30] Ext. Closed Loop 1
[31] Ext. Closed Loop 2
[32] Ext. Closed Loop 3
NOTE
This
parameter cannot be changed while the motor is
running.
3-19 Jog Speed [RPM]
Range: Function:
Size
related*
[ 0
- par.
4-13
RPM]
Enter a value for the jog speed n
JOG
,
which is a fixed output speed. The
frequency converter runs at this speed
when the jog function is activated. The
maximum limit is defined in 4-13 Motor
Speed High Limit [RPM].
See also 3-80 Jog Ramp Time.

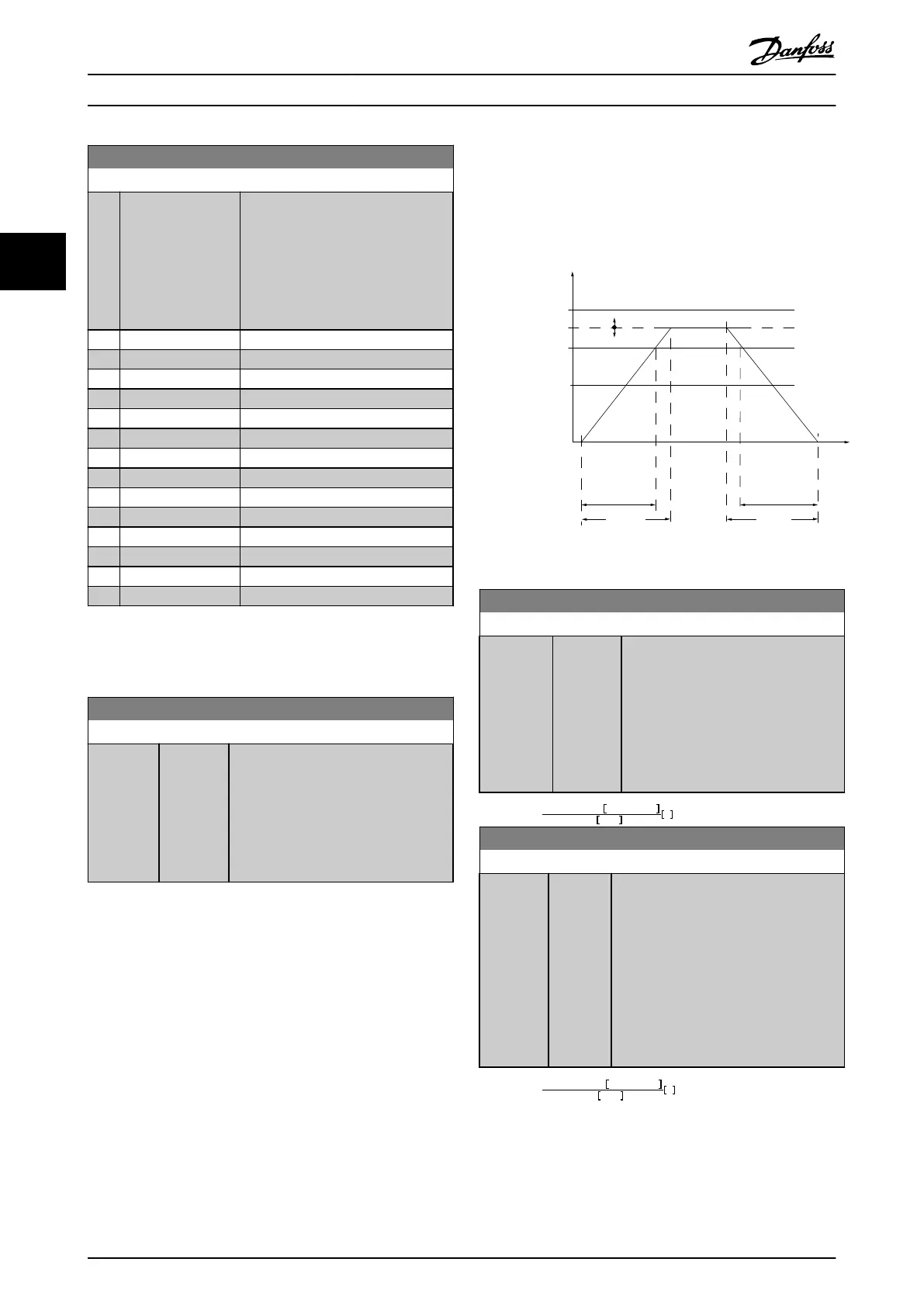

3.5.3 3-4* Ramp 1
Configure the ramp parameter, ramping times, for each of
the
two ramps (parameter group 3-4* and parameter
group 3-5*).
t
acc
t
dec
130BA169.11
P 3-*2
Ramp (X)
Down
Time (Dec)
P 4-13
High-limit
RPM
Reference
P 1-25
Motor
speed
P 4-11
Low limit
Time
P 3-*1
Ramp (X)Up
Time (Acc)
Illustration 3.15
3-41 Ramp 1 Ramp Up Time
Range: Function:
Size
related*
[ 1.00
-
3600
s]
Enter the ramp-up time, i.e. the
acceleration time from 0 RPM to
1-25 Motor Nominal Speed. Choose a
ramp-up time such that the output
current does not exceed the current
limit in 4-18 Current Limit during
ramping. See ramp-down time in
3-42 Ramp 1 Ramp Down Time.
par .3 − 41 =
tacc × nnom par .1 − 25
ref rpm
s
3-42 Ramp 1 Ramp Down Time
Range: Function:
Size
related*
[ 1.00 -
3600
s]
Enter the ramp-down time, i.e. the
deceleration time from 1-25 Motor
Nominal Speed to 0 RPM. Choose a ramp-
down time such that no over-voltage
arises in the inverter due to regenerative
operation of the motor, and such that
the generated current does not exceed
the current limit set in 4-18 Current Limit.
See ramp-up time in 3-41 Ramp 1 Ramp
Up Time.
par .3 − 42 =
tdec × nnom par .1 − 25
ref rpm
s
Parameter Description
VLT
®
Refrigeration Drive Programming Guide
52 MG16H102 - VLT
®
is a registered Danfoss trademark
