Danfoss VLT Flow Drive FC 111 Design Guide

e30bb903.10

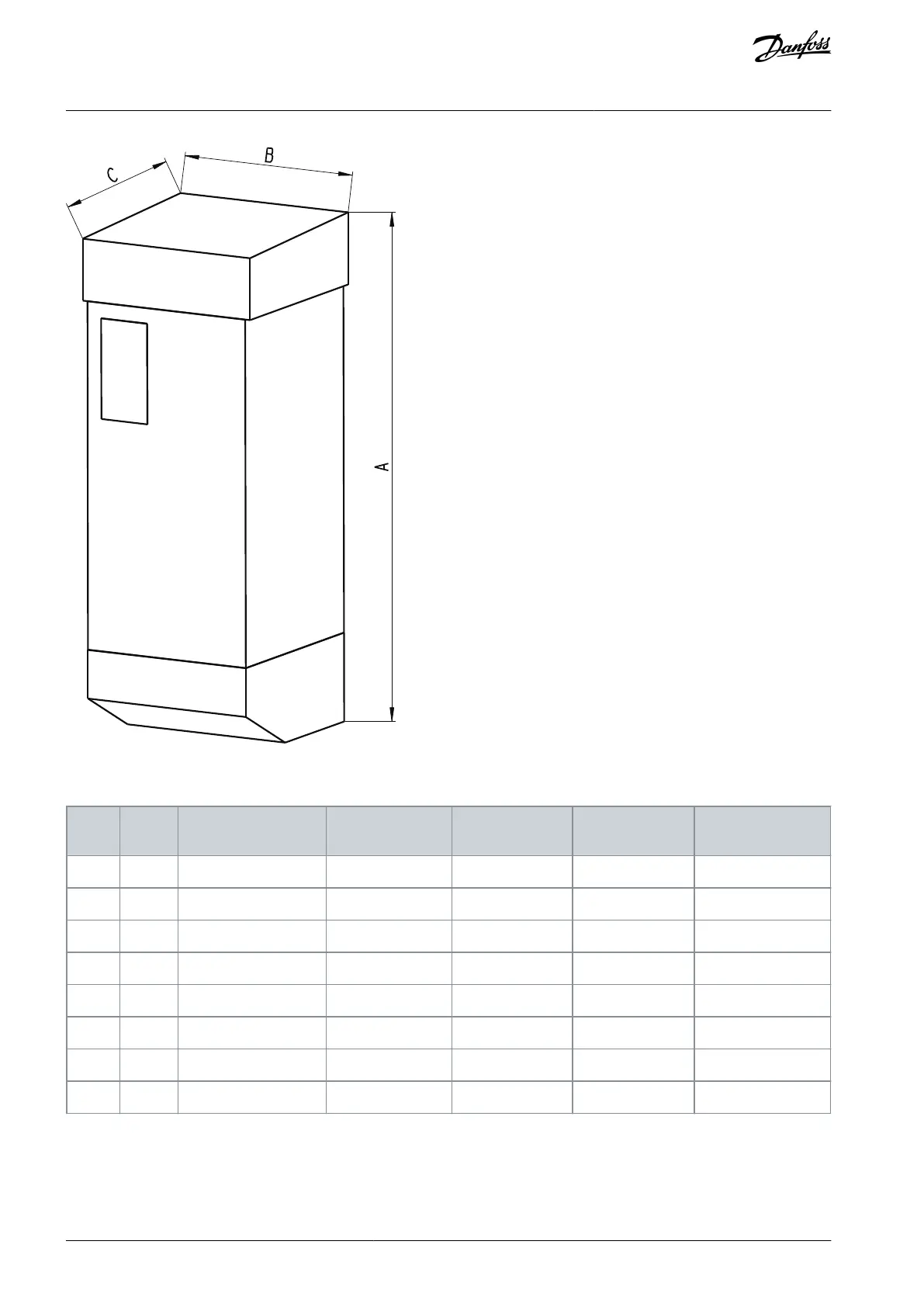

Illustration 37: Dimensions
Table 23: Enclosure Kit Specifications
Frame
IP class
3x380-480 V [kW (hp)]
Height [mm (in)] A
Width [mm (in)] B
Depth [mm (in)] C
IP21 kit ordering
number
H1
IP20
0.37–1.5 (0.5–2.0)
293 (11.5)
81 (3.2)
173 (6.8)
132B0212
H2
IP20
2.2-4.0 (3.0–5.4)
322 (12.7)
96 (3.8)
195 (7.7)
132B0213
H3
IP20
5.5-7.5 (7.4–10)
346 (13.6)
106 (4.2)
210 (8.3)
132B0214
H4
IP20
11–15 (15–20)
374 (14.7)
141 (5.6)
245 (9.6)
132B0215
H5
IP20
18.5–22 (25–30)
418 (16.5)
161 (6.3)
260 (10.2)
132B0216
H6
IP20
30–45 (40–60)
663 (26.1)
260 (10.2)
242 (9.5)
132B0217
H7
IP20
55–75 (74–100)
807 (31.8)
329 (13.0)
335 (13.2)
132B0218
H8
IP20
90 (120)
943 (37.1)
390 (15.3)
335 (13.2)
132B0219
4.2.3 Decoupling Plate
Use the decoupling plate for EMC-correct installation. The following illustration shows the decoupling plate on an H3 enclosure.
AJ363928382091en-000101 / 130R098348 | Danfoss A/S © 2021.04
Selection and Ordering
VLT® Flow Drive FC 111
Design Guide
