Danfoss VLT Flow Drive FC 111 - 6.4 Relays and Terminals; 6.4.1 Relays and Terminals on Enclosure Sizes H1-H5

6.4 Relays and Terminals
6.4.1 Relays and Terminals on Enclosure Sizes H1–H5
e30bb634.10
1
2
2
3
4
M
ot
or
U
V
W
-DC
+DC
M
AINS

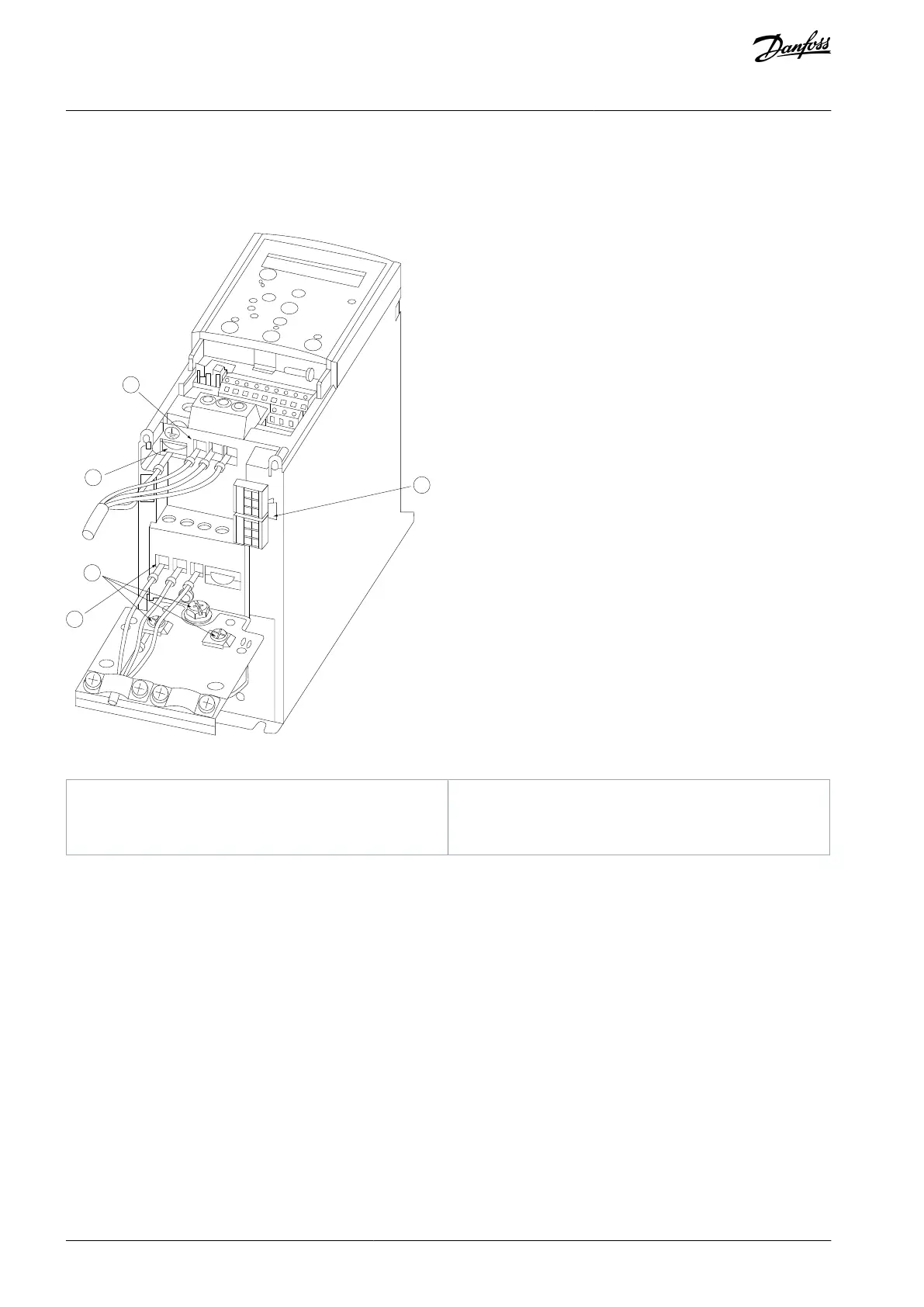

Illustration 48: Enclosure Sizes H1–H5 IP20, 380–480 V, 0.37–22 kW (0.5–30 hp)
1
Mains
2
Ground
3
Motor
4
Relays
