Danfoss VLT Flow Drive FC 111 Design Guide

•
•
•
•
7 Programming
7.1 Local Control Panel (LCP)
The LCP is divided into 4 functional sections.
A. Display
B. Menu key
C. Navigation keys and indicator lights
D. Operation keys and indicator lights
e30bu792.10
B
a
c
k
Com.
1-20 Motor Power
[5] 0.37kW - 0.5HP
Setup 1
A
B
1
12
13 14 15
11
11
10
9
8
7
6
5
4
3
2
C
D
Status
Main
Menu
Quick
Menu
Hand
On
OK
Menu
Off
Reset
Auto
On
Alarm
Warn.
On
11
B
C
D
A
13 14 15
12
11
11
5
4
10
6
7
8
9
1
2
11
LCP 32 LCP 31

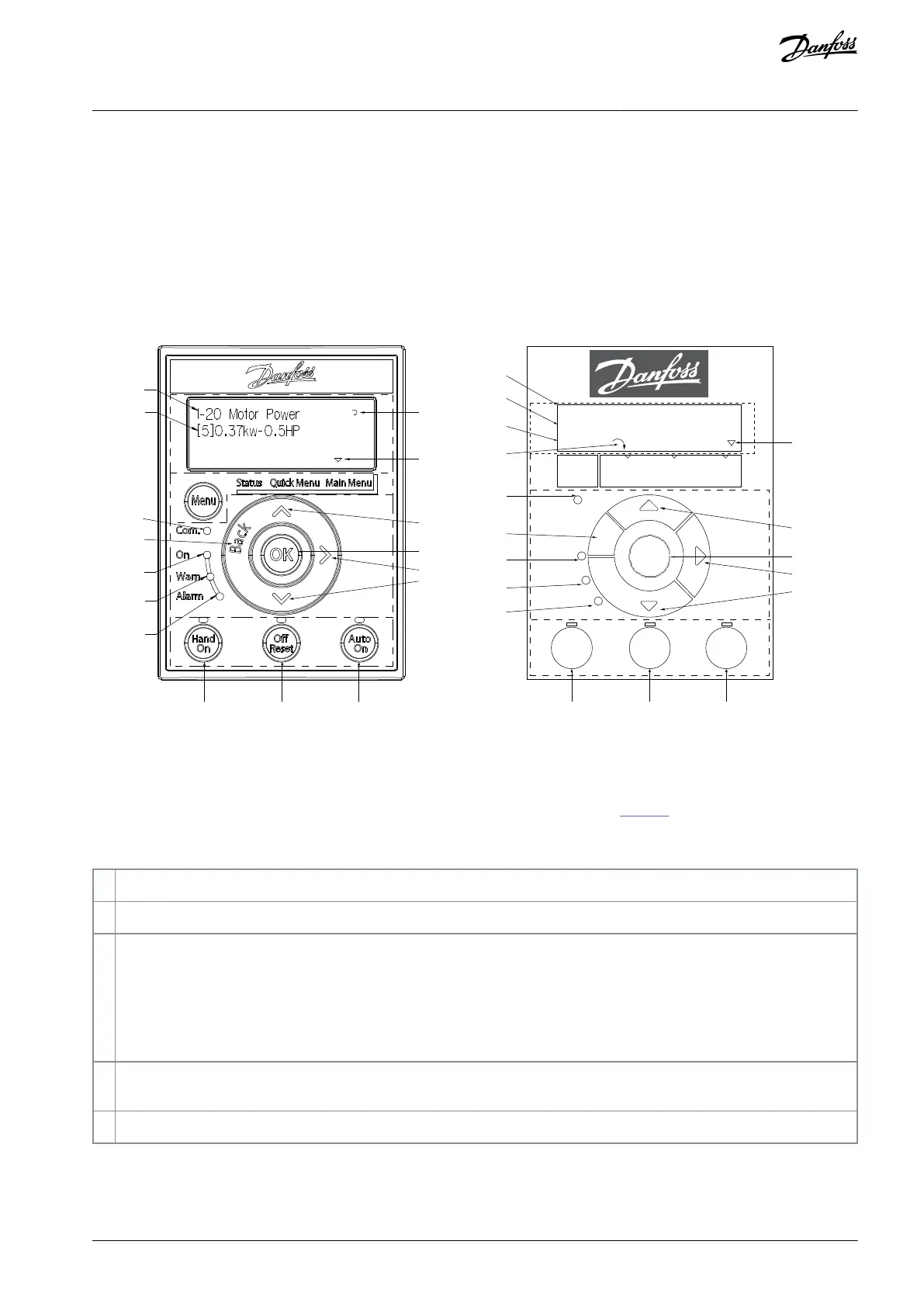

Illustration 59: Local Control Panel (LCP)
A. Display
The LCD-display is illuminated with 2 alphanumeric lines. All data is shown on the LCP. The Table 43 describes the information that
can be read from the display.
Table 43: Legend to Section A, Illustration 3
1
Parameter number and name.
2
Parameter value.
3
The setup number shows the active setup and the edit setup.
For LCP 32, the setup number only shows in Status menu, the number outside brackets is active setup, and the number inside
brackets is edit setup. For example, 1(2) means 1 is the active setup, and 2 is the edit setup.
For LCP 31, if the same setup acts as both active and edit setup, only that setup number is shown (factory setting). When the
active and the edit setup differ, both numbers are shown in the display (setup 12). The number flashing indicates the edit
setup.
4
Motor direction is shown to the bottom left of the display – indicated by a small arrow pointing either clockwise or counter-
clockwise.
5
The triangle indicates if the LCP is in Status, Quick Menu, or Main Menu.
B. Menu key
Press [Menu] to select among Status, Quick Menu, or Main Menu.
AJ363928382091en-000101 / 130R0983 | 81Danfoss A/S © 2021.04
Programming
VLT® Flow Drive FC 111
Design Guide
