7.5 Examples
7.5.1 Writing a Parameter Value
Change par. 4-14 Motor Speed High Limit [Hz] to 100 Hz.
Write the data in EEPROM.
PKE = E19E Hex - Write single word in par. 4-14
Motor Speed High Limit
[Hz]
IND = 0000 Hex
PWEHIGH = 0000 Hex
PWELOW = 03E8 Hex - Data value 1000, corresponding to 100 Hz, see
Conversion.

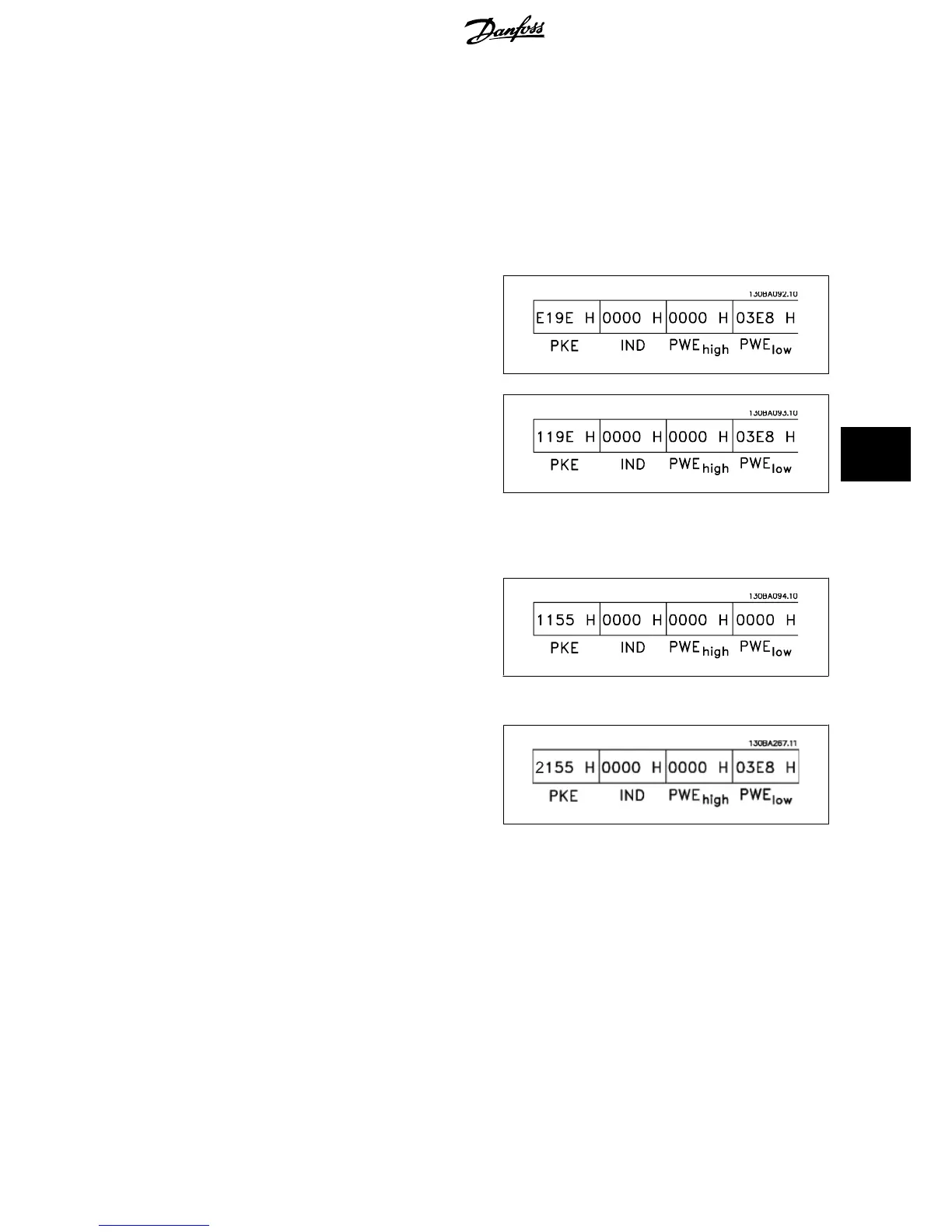

The telegram will look like this:
Note: par. 4-14 Motor Speed High Limit [Hz] is a single word, and the
parameter command for write in EEPROM is “E”. Parameter number 4-14
is 19E in hexadecimal.
The response from the slave to the master will be:
7.5.2 Reading a Parameter Value
Read the value in par. 3-41 Ramp 1 Ramp Up Time
PKE = 1155 Hex - Read parameter value in par. 3-41 Ramp 1 Ramp Up
Time
IND = 0000 Hex
PWEHIGH = 0000 Hex
PWELOW = 0000 Hex
If the value in par. 3-41 Ramp 1 Ramp Up Time is 10 s, the response from
the slave to the master will be:
3E8 Hex corresponds to 1000 decimal. The conversion index for par. 3-41 Ramp 1 Ramp Up Time is -2, i.e. 0.01.
par. 3-41
Ramp 1 Ramp up Time is of the type Unsigned 32 .
VLT
®
HVAC Drive Design Guide 7 RS-485 Installation and Set-up
MG.11.B9.02 - VLT
®
is a registered Danfoss trademark 137
7

Danfoss VLT HVAC Specifications

General

Enclosure Rating	IP20, IP21, IP54, IP55, IP66
Storage Temperature Range	-25°C to +70°C
Output Voltage Range	0-100% of supply voltage
Communication Protocols	Modbus RTU, BACnet, Ethernet/IP, Profibus DP
Ambient Temperature Range	-10°C to +50°C (without derating)
Relative Humidity	5% to 95% non-condensing
Altitude	Up to 1000 m without derating
Cooling Method	Air cooled
Application	HVAC systems, Pumps, Fans, Compressors
Voltage Range	200-240 V, 380-500 V, 525-600 V
Frequency Range	0 Hz to 590 Hz
