5.1.5 Lifting
Always lift the frequency converter in the dedicated lifting eyes. For all D and E2 (IP00) enclosures, use a bar to avoid bending the lifting holes of the
frequency converter.
Illustration 5.3: Recommended lifting method, frame sizes D and E .
The lifting bar must be able to handle the weight of the frequency converter. See Mechanical Dimensions for the weight of the different
frame sizes. Maximum diameter for bar is 2.5 cm (1 inch). The angle from the top of the drive to the lifting cable should be 60° C or
greater.

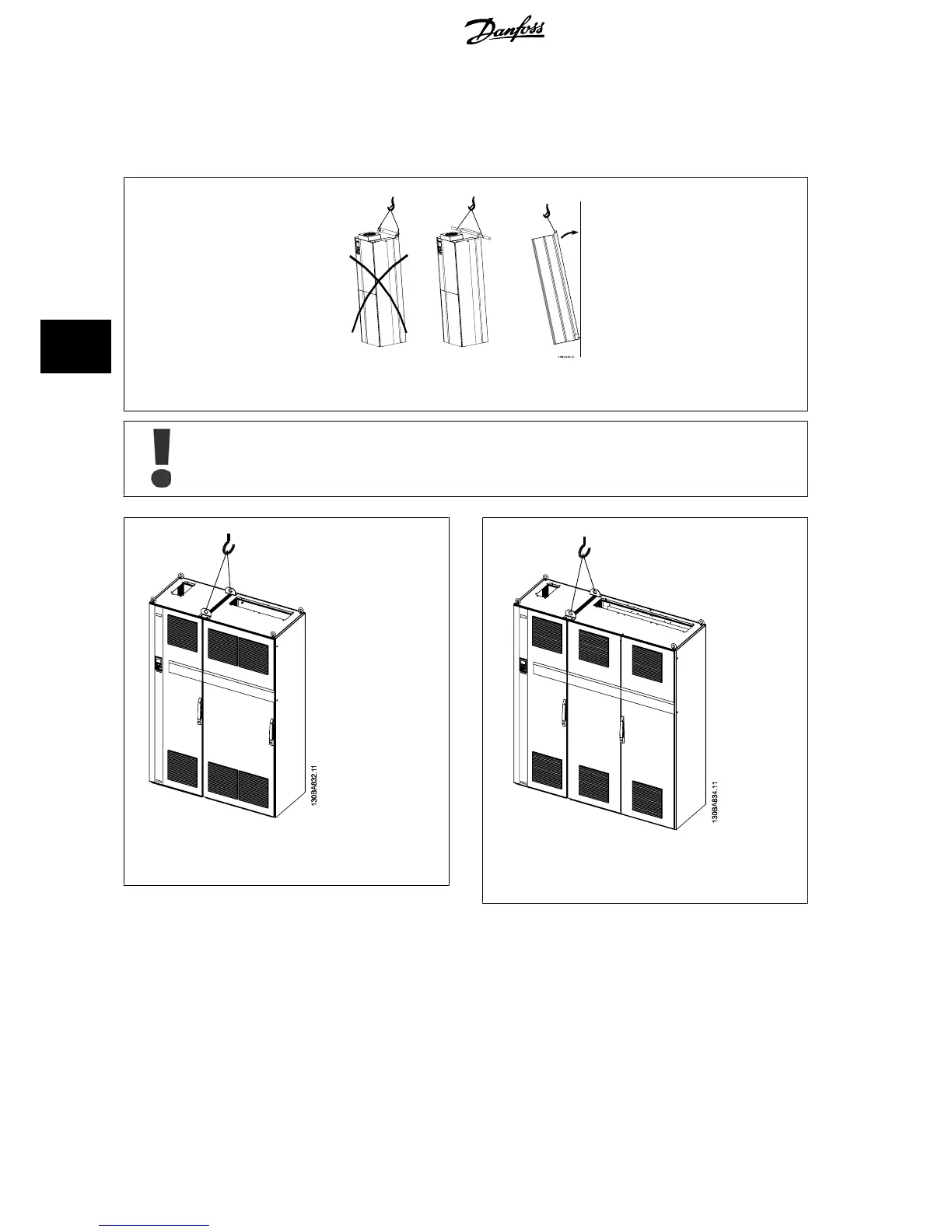

Illustration 5.4: Recommended lifting method, frame size
F1.
Illustration 5.5: Recommended lifting method, frame size
F2.
5 How to Install VLT
®
HVAC Drive Design Guide
86 MG.11.B9.02 - VLT
®
is a registered Danfoss trademark
5

Danfoss VLT HVAC Specifications

General

Enclosure Rating	IP20, IP21, IP54, IP55, IP66
Storage Temperature Range	-25°C to +70°C
Output Voltage Range	0-100% of supply voltage
Communication Protocols	Modbus RTU, BACnet, Ethernet/IP, Profibus DP
Ambient Temperature Range	-10°C to +50°C (without derating)
Relative Humidity	5% to 95% non-condensing
Altitude	Up to 1000 m without derating
Cooling Method	Air cooled
Application	HVAC systems, Pumps, Fans, Compressors
Voltage Range	200-240 V, 380-500 V, 525-600 V
Frequency Range	0 Hz to 590 Hz
