5.3 Final Set-Up and Test
To test the set-up and ensure that the frequency converter is running, follow these steps.

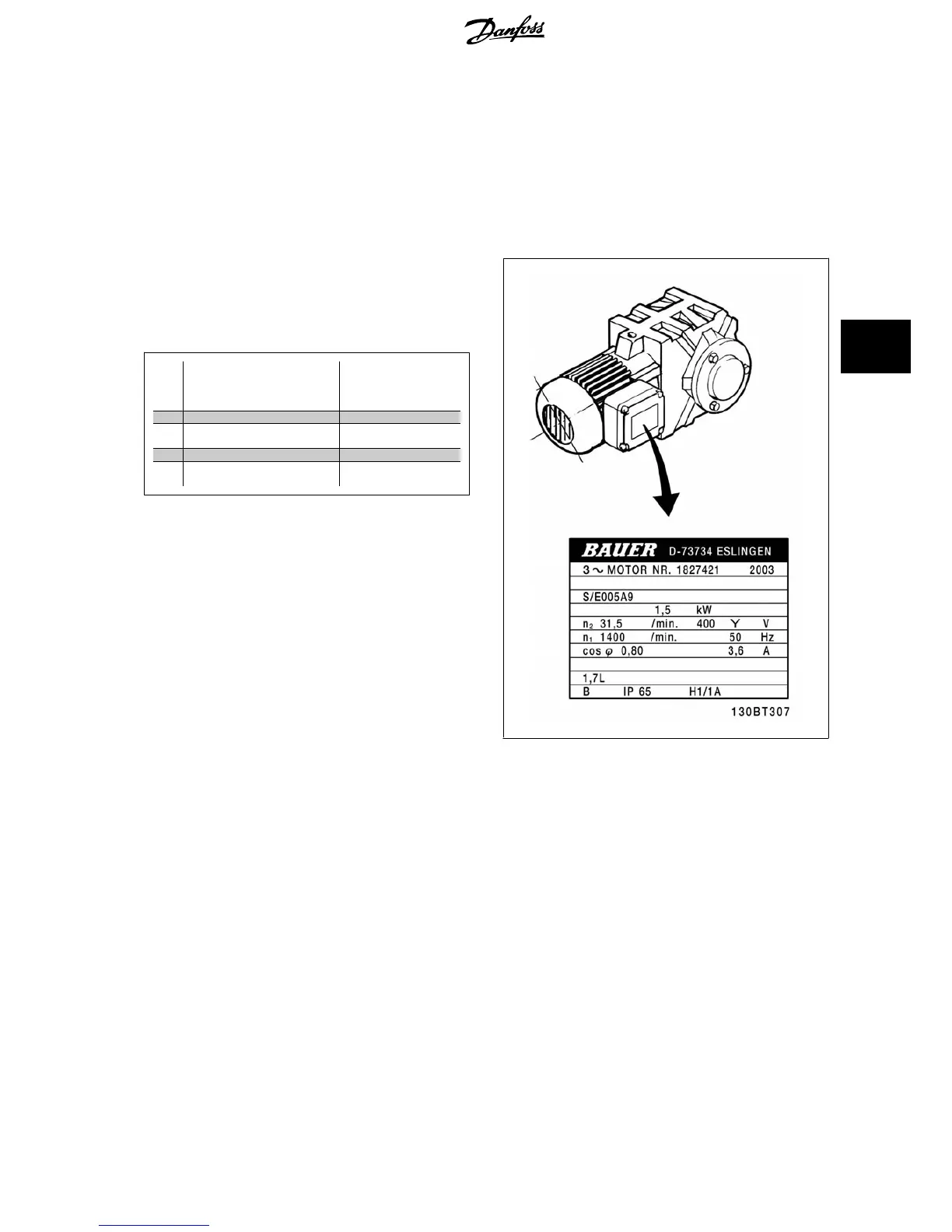

Step 1. Locate the motor name plate
The motor is either star- (Y) or delta- connected (Δ). This information is located on the motor name plate data.
Step 2. Enter the motor name plate data in this parameter list.
To access this list first press the [QUICK MENU] key then select “Q2 Quick
Setup”.
1.
Motor Power [kW]
or Motor Power [HP]
par. 1-20
Motor Power
[kW]
par. 1-21
Motor Power
[HP]
2. Motor Voltage par. 1-22
Motor Voltage
3. Motor Frequency par. 1-23
Motor Frequen-
cy
4. Motor Current par. 1-24
Motor Current
5. Motor Nominal Speed par. 1-25
Motor Nominal
Speed
Step 3. Activate the Automatic Motor Adaptation (AMA)
Performing an AMA will ensure optimum performance. The AMA measures the values from the motor model equivalent diagram.
1. Connect terminal 27 to terminal 12 or set par. 5-12
Terminal 27 Digital Input
to 'No function' (par. 5-12
Terminal 27 Digital Input
[0])
2. Activate the AMA par. 1-29
Automatic Motor Adaptation (AMA)
.
3. Choose between complete or reduced AMA. If an LC filter is mounted, run only the reduced AMA, or remove the LC filter during the AMA
procedure.
4. Press the [OK] key. The display shows “Press [Hand on] to start”.
5. Press the [Hand on] key. A progress bar indicates if the AMA is in progress.
VLT
®
HVAC Drive Design Guide 5 How to Install
MG.11.B9.02 - VLT
®
is a registered Danfoss trademark
105
5
