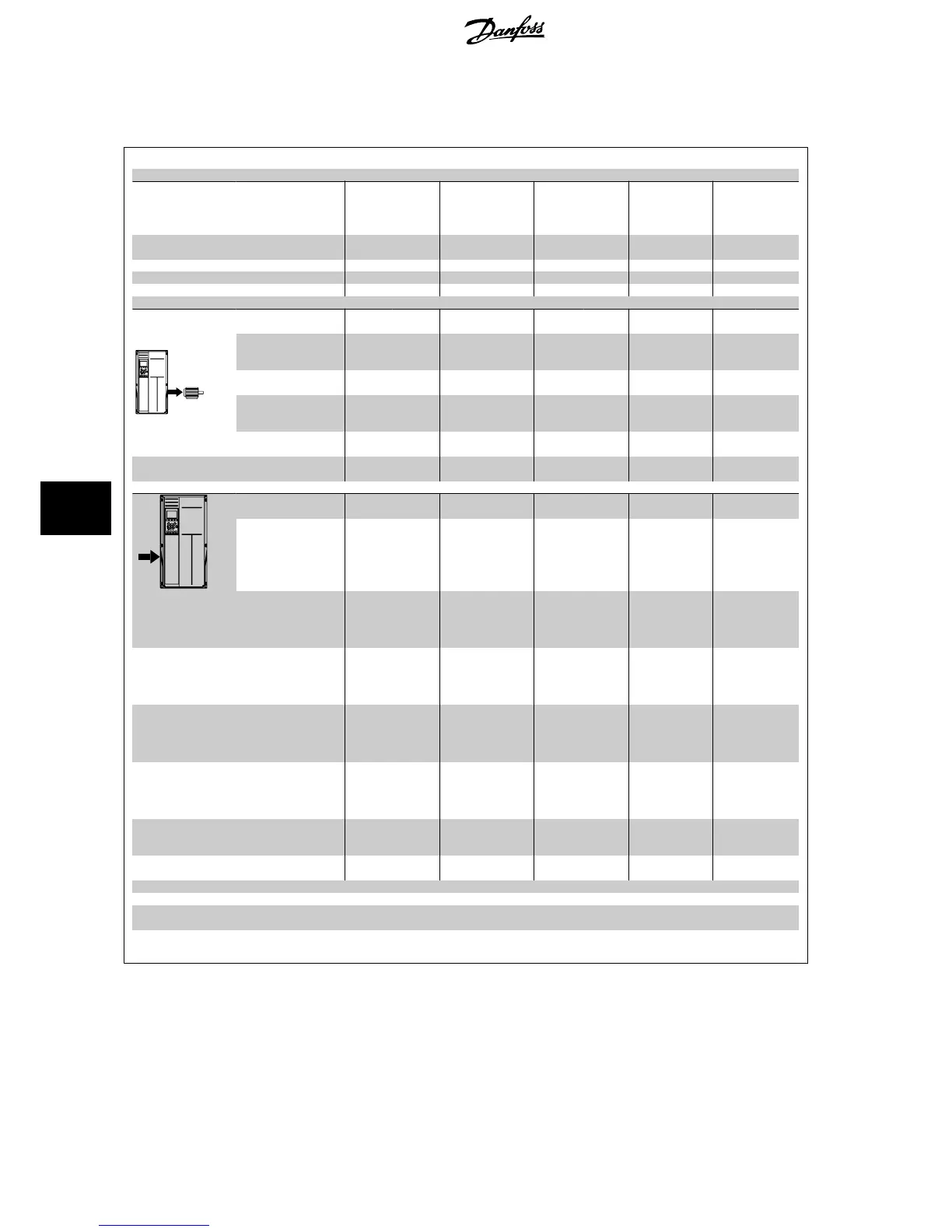

8.1.1 Mains Supply High Power
Mains Supply 3 x 380 - 480 VAC
P110 P132 P160 P200 P250
Typical Shaft output at
400 V [kW]
110 132 160 200 250
Typical Shaft output at
460 V [HP]
150 200 250 300 350
Enclosure IP21 D1 D1 D2 D2 D2
Enclosure IP54 D1 D1 D2 D2 D2
Enclosure IP00 D3 D3 D4 D4 D4
Output current
Continuous
(at 400 V) [A]
212 260 315 395 480
Intermittent (60 sec
overload)
(at 400 V) [A]
233 286 347 435 528
Continuous
(at 460/ 480 V) [A]
190 240 302 361 443
Intermittent (60 sec
overload)
(at 460/ 480 V) [A]
209 264 332 397 487
Continuous KVA
(at 400 V) [KVA]
147 180 218 274 333
Continuous KVA
(at 460 V) [KVA]
151 191 241 288 353
Max. input current
Continuous
(at 400 V ) [A]
204 251 304 381 463
Continuous
(at 460/ 480 V) [A]
183 231 291 348 427
Max. cable size, mains
motor, brake and load
share [mm
2
(AWG
2)
)]
2 x 70
(2 x 2/0)
2 x 70
(2 x 2/0)
2 x 150
(2 x 300 mcm)
2 x 150
(2 x 300 mcm)
2 x 150
(2 x 300 mcm)
Max. external pre-
fuses [A]
1
300 350 400 500 630
Estimated power loss
at rated max. load [W]
4)
, 400 V
3234 3782 4213 5119 5893
Estimated power loss
at rated max. load [W]
4)
, 460 V
2947 3665 4063 4652 5634
Weight,
enclosure IP21, IP 54
[kg]
96 104 125 136 151
Weight,
enclosure IP00 [kg]
82 91 112 123 138
Efficiency
4)
0.98
Output frequency 0 - 800 Hz
Heatsink overtemp.
trip
85 °C 90 °C 105 °C 105 °C 115 °C
Power card ambient
trip
60 °C
8 General Specifications and Troubleshooting VLT
®
HVAC Drive Design Guide
160
MG.11.B9.02 - VLT
®
is a registered Danfoss trademark
8
