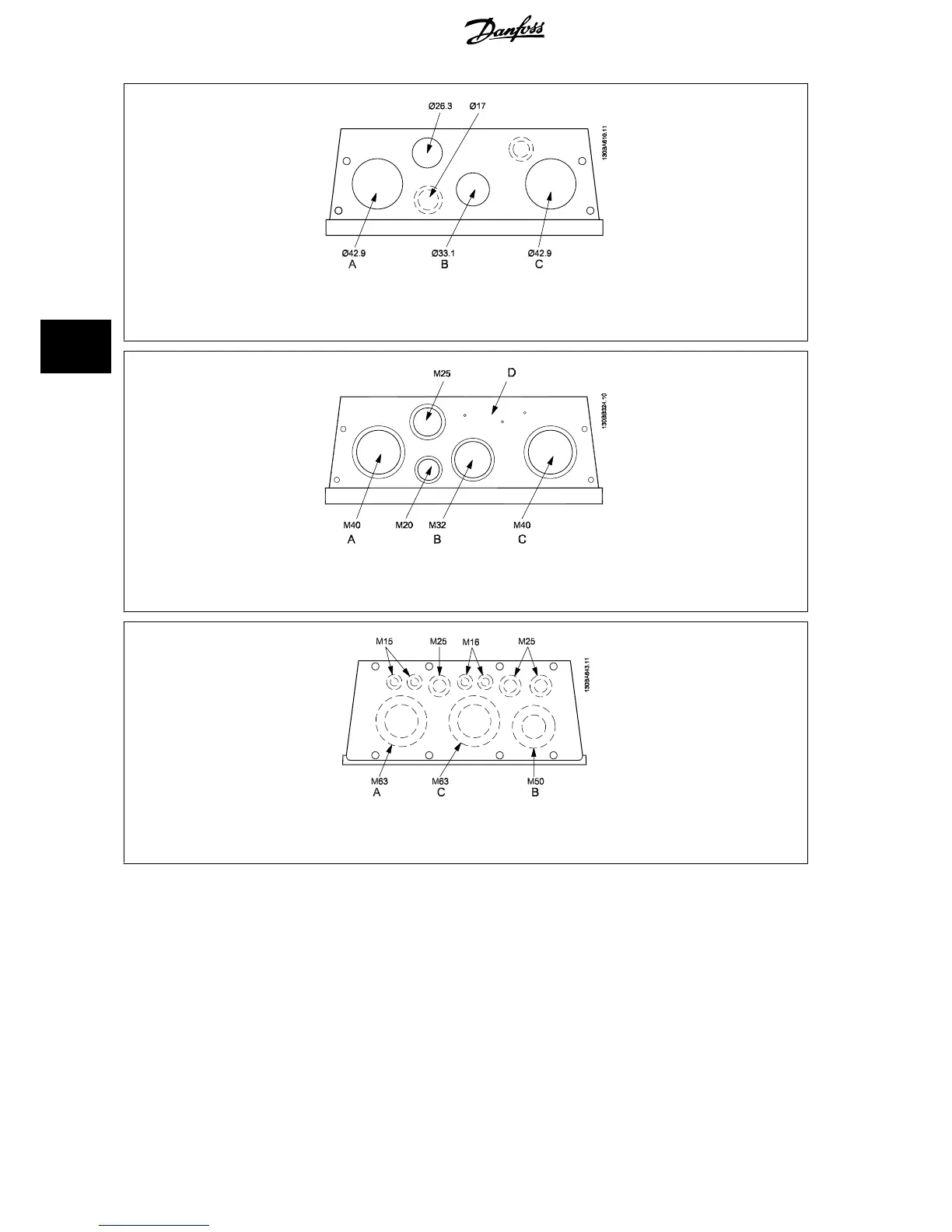

Illustration 5.12: Cable entry holes for enclosure B2. The suggested use of the holes are purely recommendations and other solutions are
possible.
Illustration 5.13: Cable entry holes for enclosure B2. The suggested use of the holes are purely recommendations and other solutions are
possible.
Illustration 5.14: Cable entry holes for enclosure C1. The suggested use of the holes are purely recommendations and other solutions are
possible.
5 How to Install VLT
®
HVAC Drive Design Guide
92
MG.11.B9.02 - VLT
®
is a registered Danfoss trademark
5
