96-30051-001 Rev. D3 DDN SFA12K (SFA OS 2.3.1) Hardware Installation & Configuration Guide | 102
C.2 Enclosure Labels
The enclosures used with the SFA12KXE/12K-20E or pre-configured systems are labeled as
shown in Figure 120. The enclosure number is used to determine the enclosure’s position in
the rack.
Figure 121 shows the enclosure positions for systems using up to 10 disk enclosures.
Figure 122 shows the enclosure positions for systems using 20 disk enclosures.

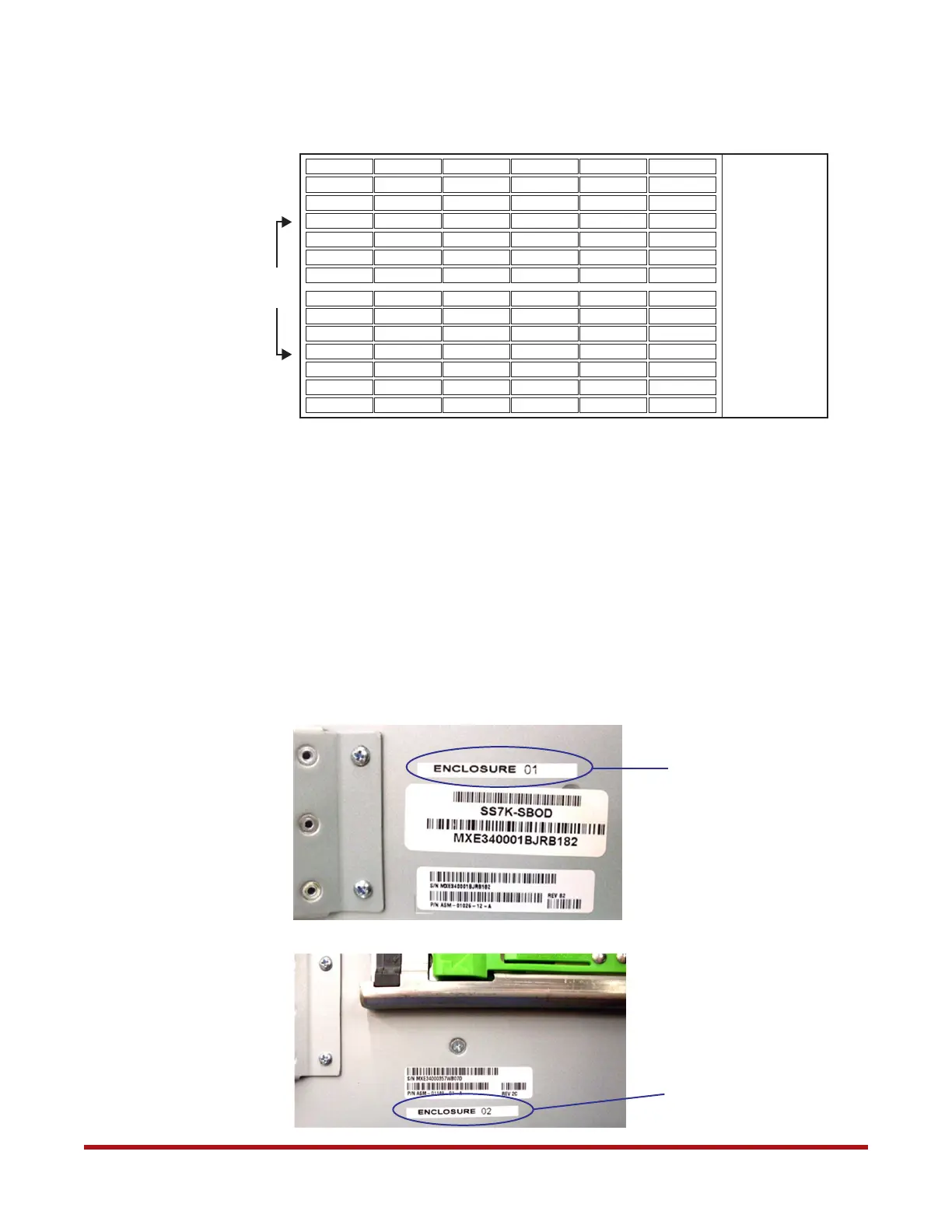

Figure 119. 84-Bay Enclosure Disk Slot Numbering
01 15 29 43 57
02 16 30 44 58
03 17 31 45 59
04 18 32 46 60
05 19 33 47 61
06 20 34 48 62
71
72
73
74
75
76
07 21 35 49 63
08 22 36 50 64
09 23 37 51 65
10 24 38 52 66
11 25 39 53 67
12 26 40 54 68
77
78
79
80
81
82
13 27 41 55 69 83
14 28 42 56 70 84
Front
of
Chassis
Figure 120. Enclosure Labels
Enclosure Number
Enclosure Number
