DataDirect Networks SFA12KXE - Figure 115. SFA12 KXE;12 K-20 E Configuration with 10 X SS8460 Enclosures

96-30051-001 Rev. D3 DDN SFA12K (SFA OS 2.3.1) Hardware Installation & Configuration Guide | 99
Disk Enclosure Cabling

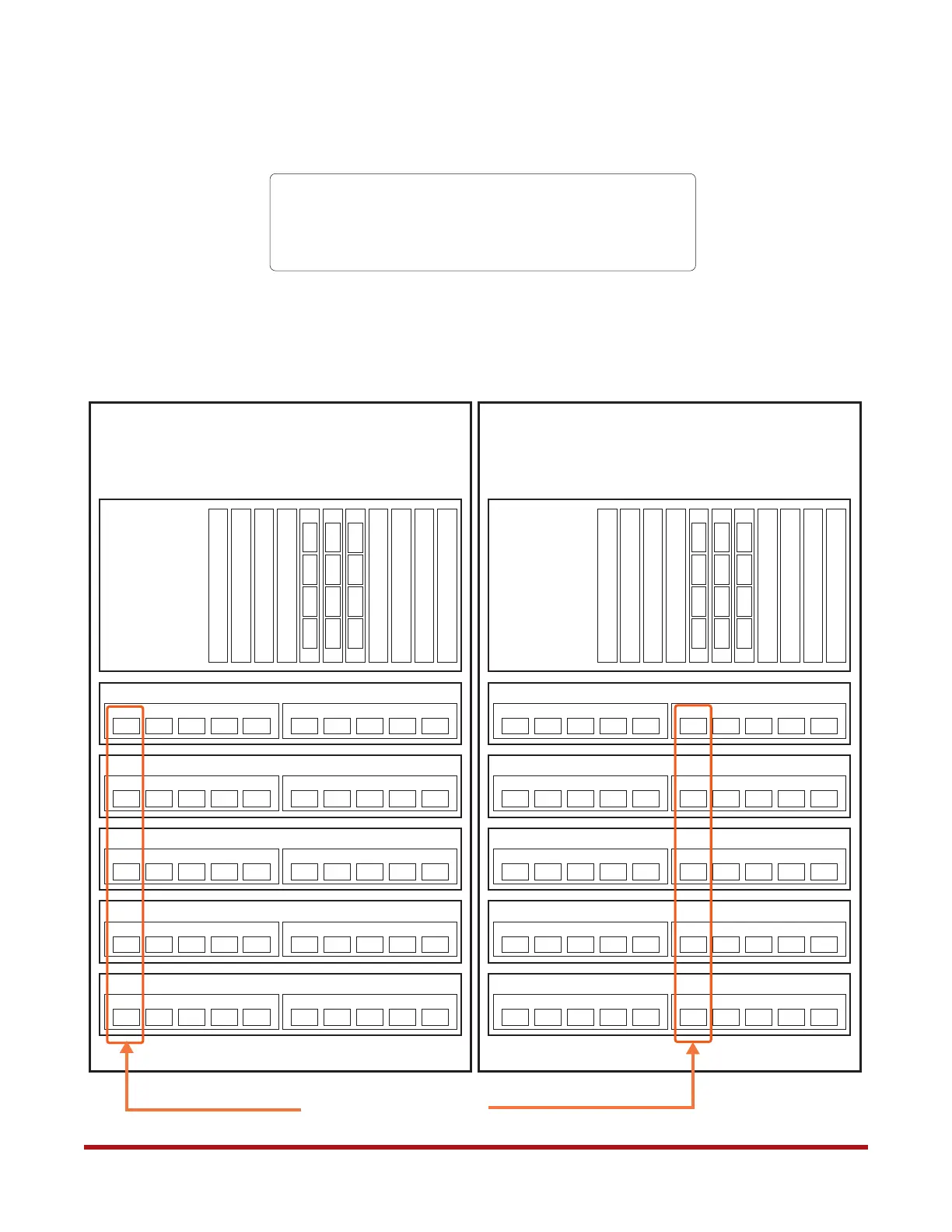

Figure 115. SFA12KXE/12K-20E Configuration with 10 x SS8460 Enclosures
002
I/O Module A
Disk Enclosure 01
102
I/O Module B
012
I/O Module A
Disk Enclosure 02
112
I/O Module B
010
I/O Module A
Disk Enclosure 03
110
I/O Module B
020
I/O Module A
Disk Enclosure 04
120
I/O Module B
022
I/O Module A
Disk Enclosure 06
122
I/O Module B
000
I/O Module A
Disk Enclosure 05
100
I/O Module B
013
I/O Module A
Disk Enclosure 10
113
I/O Module B
003
I/O Module A
Disk Enclosure 09
103
I/O Module B
021
I/O Module A
Disk Enclosure 08
121
I/O Module B
001
I/O Module A
Disk Enclosure 07
101
I/O Module B
020 021 022 010 012 013 000 001 002 003
Controller 0
120 121 122 110 112 113 100 101 102 103
Controller 1
Optional—If you are using 3-meter cables only:
- Remove side panels from the adjoining sides of racks.
- Run cables from the back of the controllers into the channels on the
right and left of each rack at the same altitude as the controller.
No. of HD Mini-SAS to HD Mini-SAS Cables Required:
3-meter: 10
6-meter: 10
Use 6-meter cables to connect
these ports to the controller
installed in the other rack
Zoning Configuration: 0
