DataDirect Networks SFA12KXE - Figure 89. SFA12 KX;12 K-40 Configuration with 1 X SS7000 Enclosure

Disk Enclosure Cabling
96-30051-001 Rev. D3 DDN SFA12K (SFA OS 2.3.1) Hardware Installation & Configuration Guide | 73

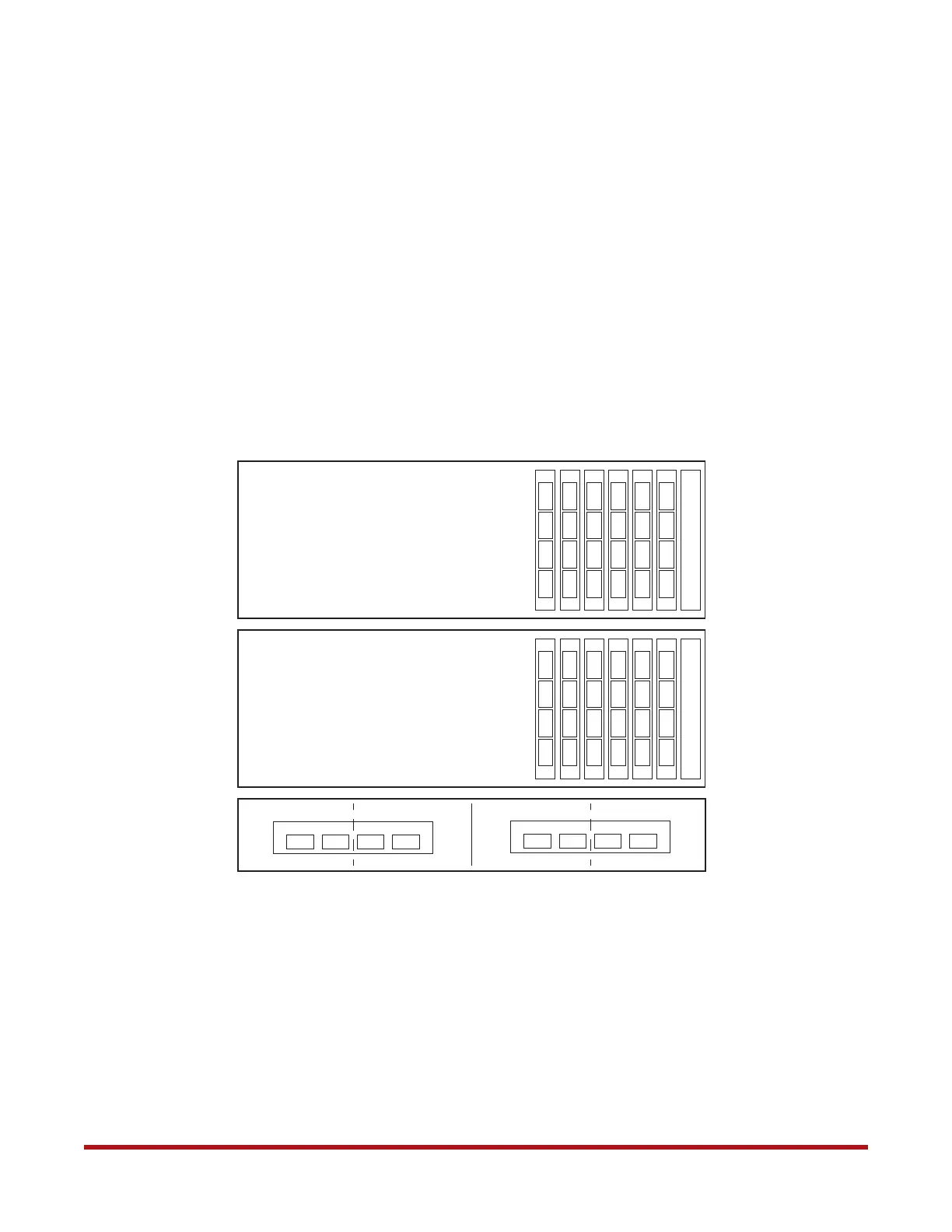

Figure 89. SFA12KX/12K-40 Configuration with 1 x SS7000 Enclosure
012 002
042032 012002
142132 112102
I/O Module A
I/O Module B
Disk Enclosure 01
Controller 0
032 042
112 102
Controller 1
132 142
No. of HD Mini-SAS to Mini-SAS Cables Required (3-meter): 8
Zoning Configuration: 1
