DataDirect Networks SFA12KXE - Figure 85. SFA12 K-20 Configuration with 4 × SS8460 Enclosures

Disk Enclosure Cabling
96-30051-001 Rev. D3 DDN SFA12K (SFA OS 2.3.1) Hardware Installation & Configuration Guide | 69

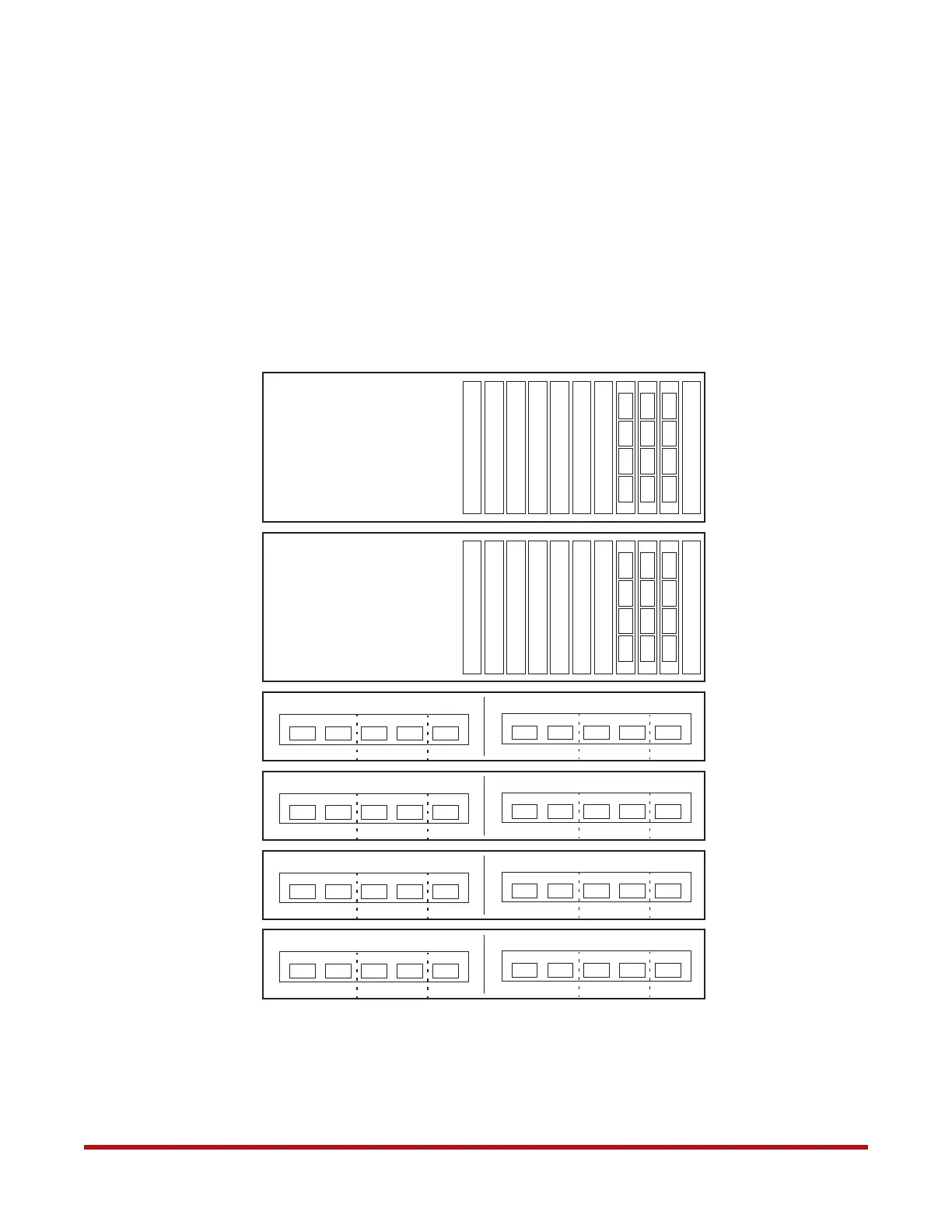

Figure 85. SFA12K-20 Configuration with 4 × SS8460 Enclosures
020 021 022 010 012 000 001 002
Controller 0
120 121 122 110 112 100 101 102
Controller 1
021001
I/O Module A
Disk Enclosure 04
121101
I/O Module B
022000
I/O Module A
Disk Enclosure 03
122100
I/O Module B
020010
I/O Module A
Disk Enclosure 02
120110
I/O Module B
012002
I/O Module A
Disk Enclosure 01
112102
I/O Module B
No. of HD Mini-SAS to HD Mini-SAS Cables Required (3-meter): 16
Zoning Configuration: 1
