DK-45 Kullanım Kılavuzu V1.0 (22.09.2016)
- 9 -

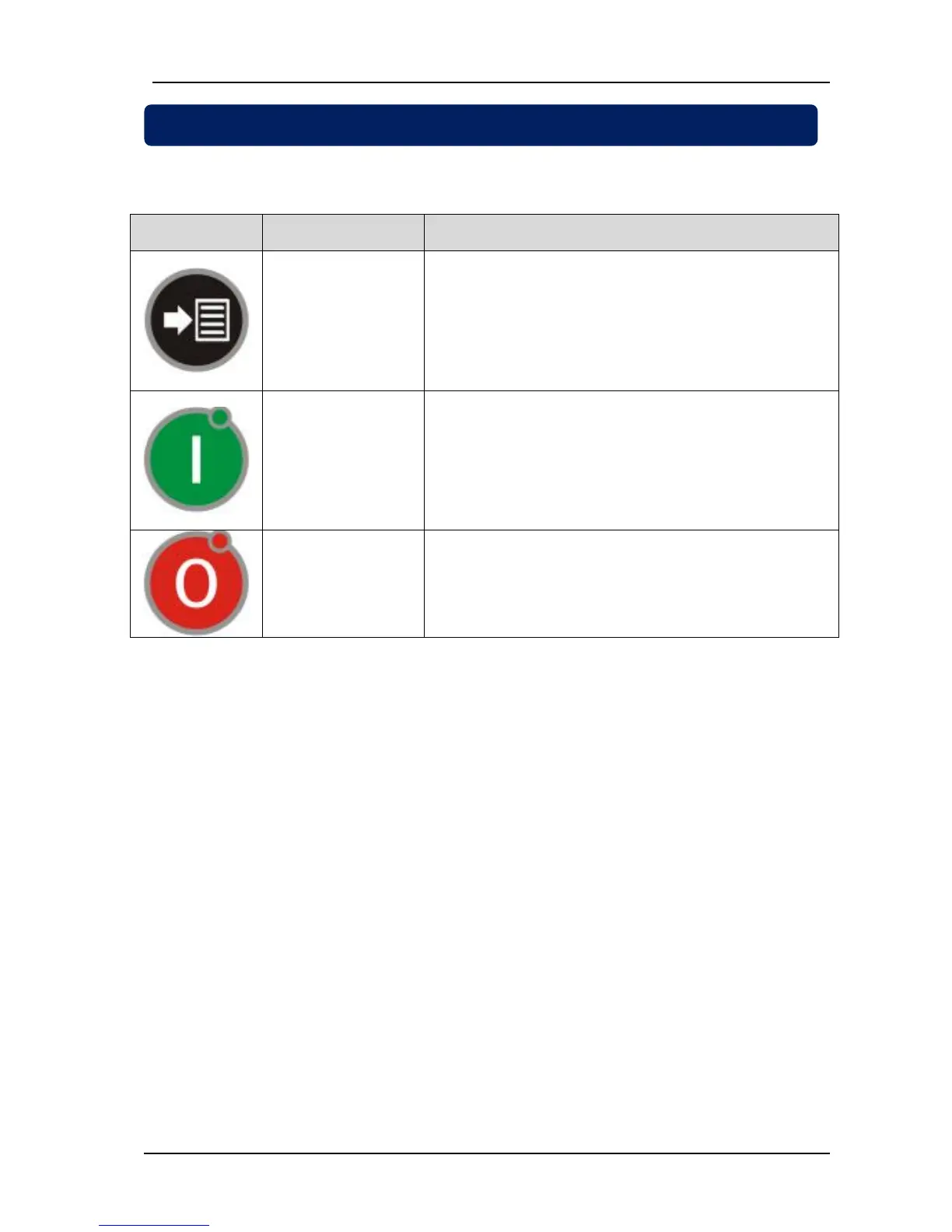

Three pushbuttons on the front panel allow access to programming and measuring screens.
BUTTON
DESCRIPTION
FUNCTION
MENU
Displays the next parameter.
Reset alarms.
PROGRAMMING: Save the adjusted parameter.
RUN
Reset alarms and run the compressor.
PROGRAMMING: Increase parameter value.
STOP
Reset alarms and stop the compressor.
PROGRAMMING: Decrease parameter value.
2. PUSHBUTTON FUNCTIONS

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Datakom DK-45 and is the answer not in the manual?

Datakom DK-45 Specifications

Power IconPower
supply voltage305 – 460 VAC
supply frequency50 - 60Hz
power consumption< 4 VA
Measurement Inputs IconMeasurement Inputs
voltage input range phase-phase20 - 520 V AC
voltage input range phase-neutral10 - 300 V AC
frequency input range30 - 100 Hz
Relay Outputs IconRelay Outputs
relay output current5A
relay output voltage250V AC
burden< 0.1VA per phase
Operating Environment IconOperating Environment
operating temperature-20°C to +70 °C
storage temperature-40°C to +80 °C
max. relative humidity%95 non condensing
Physical Characteristics IconPhysical Characteristics
dimensions133x107x46mm
panel cutout117x87mm minimum
weight350 gr
