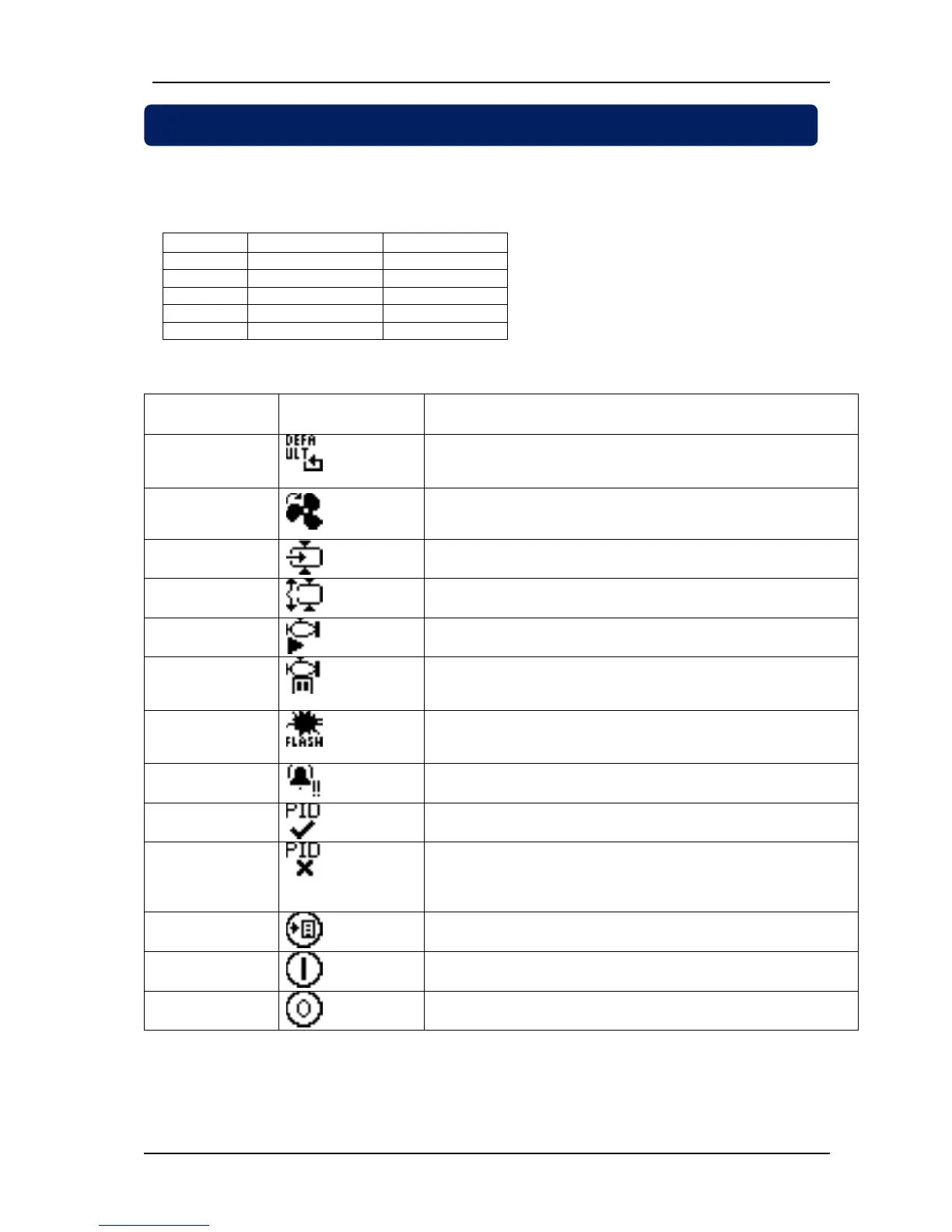

The unit provides 5 relay outputs with fully programmable functions.
The factory set values of relay functions and related program parameters are shown in below table:
RELAY #
FACTORY SET
PROGRAM #
RL 1
Main relay
D.06
RL 2
Delta relay
D.07
RL 3
Star relay
D.08
RL 4
Load relay
D.09
RL 5
Alarm relay
D.01
RELAY FUNCTION LIST:
PARAMETER
VALUE
FUNCTION
DESCRIPTION
0
DEFAULT
Relay adjusted to “FACTORY DEFAULT” function.
1
FAN
Operates when the temperature measured from the first
temperature sensor is higher than E.34.Releases when lower
than (E.34-E.35).
2
LOAD
Load relay
3
NO LOAD
Inverse of load relay
4
MOTOR
Operates when the motor is running, releases when the motor is
stopped.
5
MOTOR STOP
Operates when the motor is stopped, releases when the motor
is running.
6
FLASHING RELAY
Released during E.36 timer
Operates during E.37 timer.
7
ALARM
Operates when there is an alarm.
8
PID ACTIVE
Operates when the PID is active.
9
FORCE TO MIN
(PID INACTIVE)
Operates when PID is not active.
10
BUTTON 1
Operates when button_1 (MENU) is pressed.
11
BUTTON 2
Operates when button_2 (START) is pressed.
12
BUTTON 3
Operates when button_3 (STOP) is pressed.
9. RELAY OUTPUTS

Datakom DK-45 Specifications

Power

supply voltage	305 – 460 VAC
supply frequency	50 - 60Hz
power consumption	< 4 VA

Measurement Inputs

voltage input range phase-phase	20 - 520 V AC
voltage input range phase-neutral	10 - 300 V AC
frequency input range	30 - 100 Hz

Relay Outputs

relay output current	5A
relay output voltage	250V AC
burden	< 0.1VA per phase

Operating Environment

operating temperature	-20°C to +70 °C
storage temperature	-40°C to +80 °C
max. relative humidity	%95 non condensing

Physical Characteristics

dimensions	133x107x46mm
panel cutout	117x87mm minimum
weight	350 gr
