RAPID CONFIGURATION
1
Steps 3 to 10 can be repeated to mount the LT-410 Coaxial Lighting System:
C
D
B
A

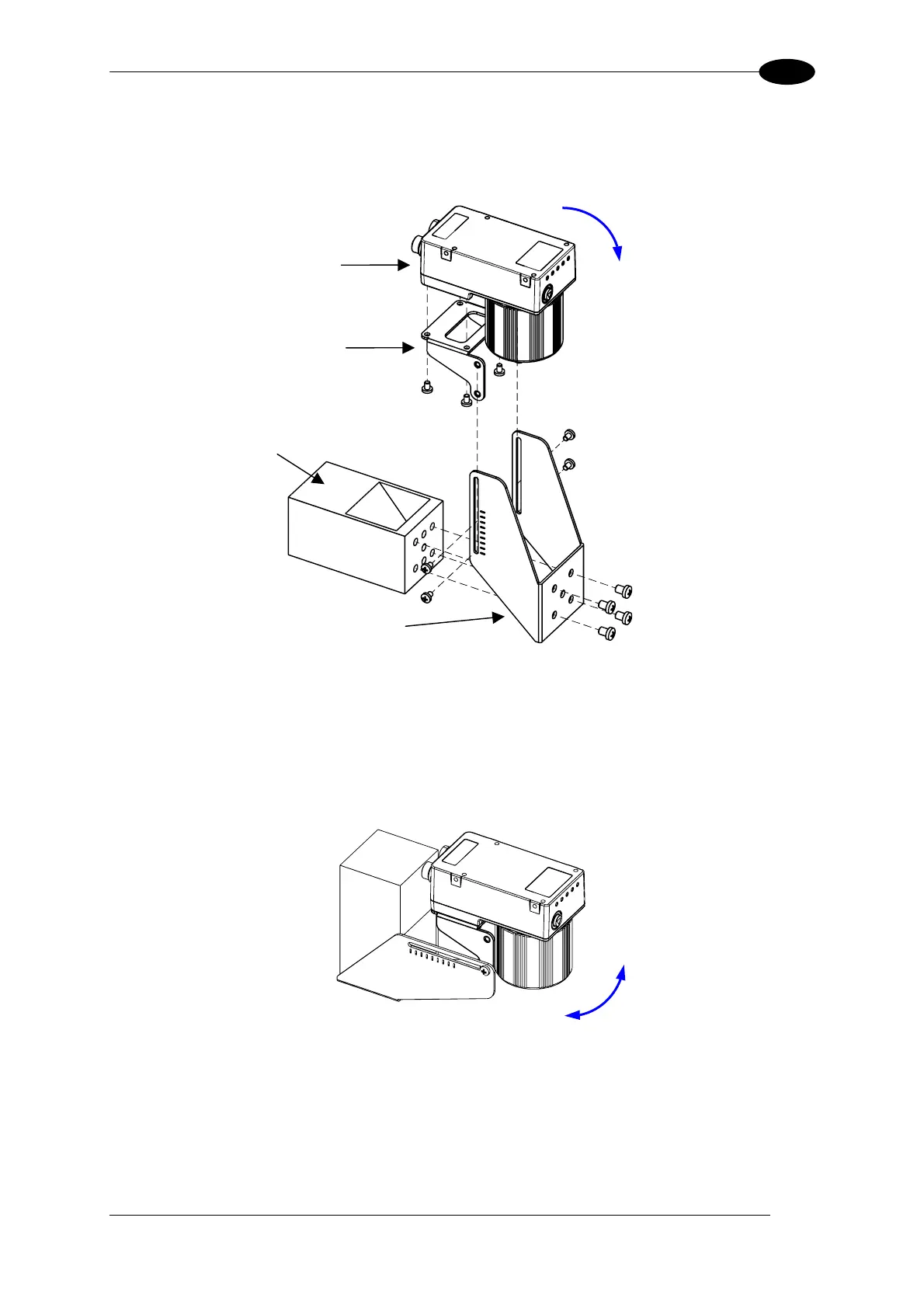

3. The BK-4410 bracket comes already partially mounted (D+A) with 2 M4 screws.
4. Mount the bracket A onto the LT-410 illuminator B using the 4 M6x8 screws.
5. Swing the bracket D 90° and mount the reader C onto it through the mounting holes on
the bracket. Use 4 of the M4 screws.
6. Remove the Lens Cover and loosen the Locking Knobs as described in the Matrix 400™
Reference Manual. Swing the bracket D 90° returning to the reading position.
7. Position and mount the Matrix assembly over the code reading area at the correct Focus
Distance (or range) for your model, (described in the Matrix 400™ Reference Manual).
8. Perform the Focusing and Image Density Calibration procedures described in the Step 5.
