MATRIX 400™ CODE QUALITY VERIFIER SOLUTION
1
9. After Focusing, tighten the Focus and Diaphragm Locking Knobs.
10. Swing the bracket D 90° as previously shown to replace the Lens Cover. Swing the
bracket D 90° returning to the reading position and fix the reader assembly (C+D) to the
illuminator assembly (A+B) with the remaining 2 M4 screws.
40 mm
code surface

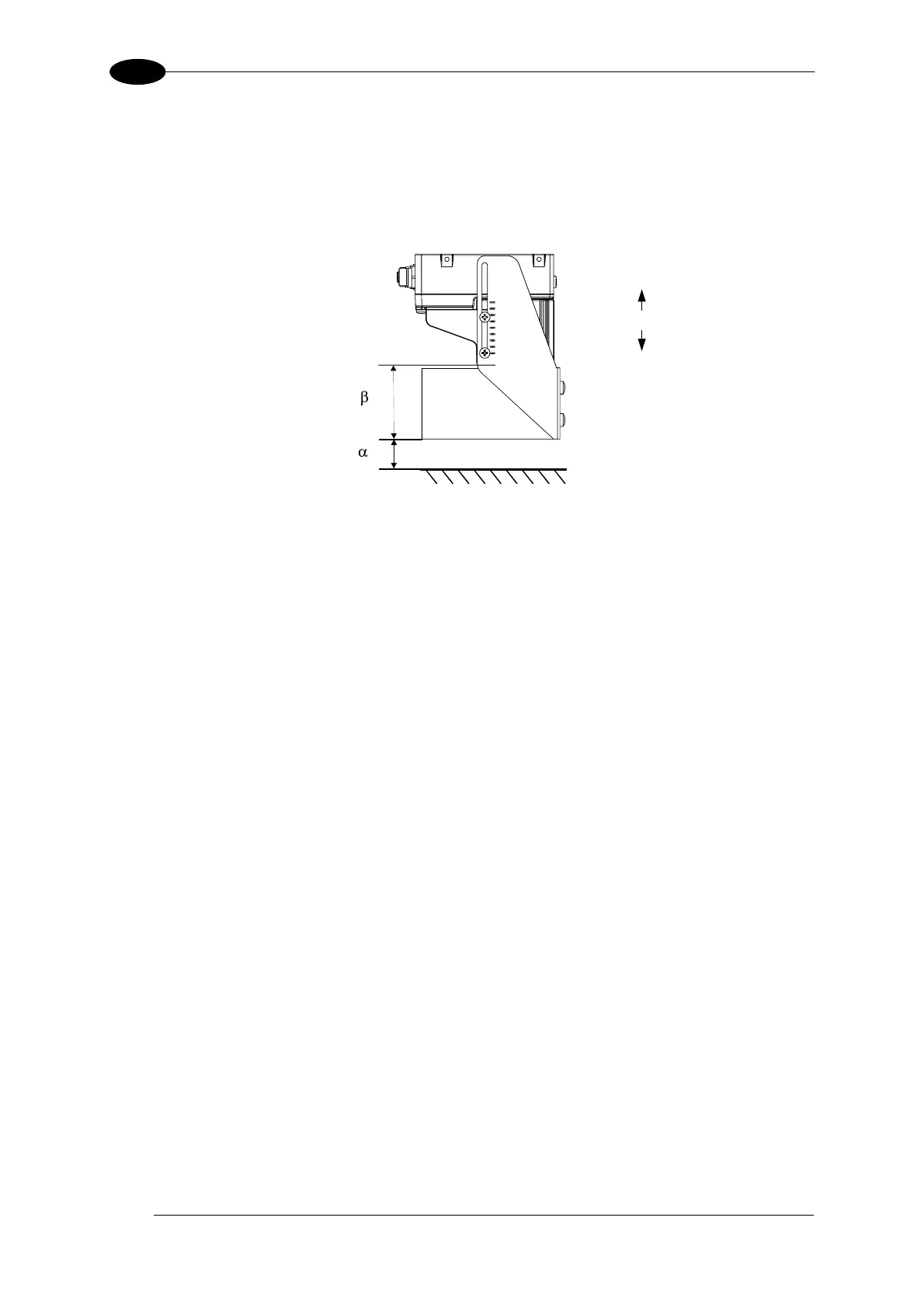

Focus distance = α + β
The best results for this illuminator are obtained when α is approximately 25 mm (1").
The positioning slots on the brackets allow adjustment to obtain the best results between the
reader optimal focus distance and the illuminator optimal working distance. You can verify
the reading performance through VisiSet™.
10
