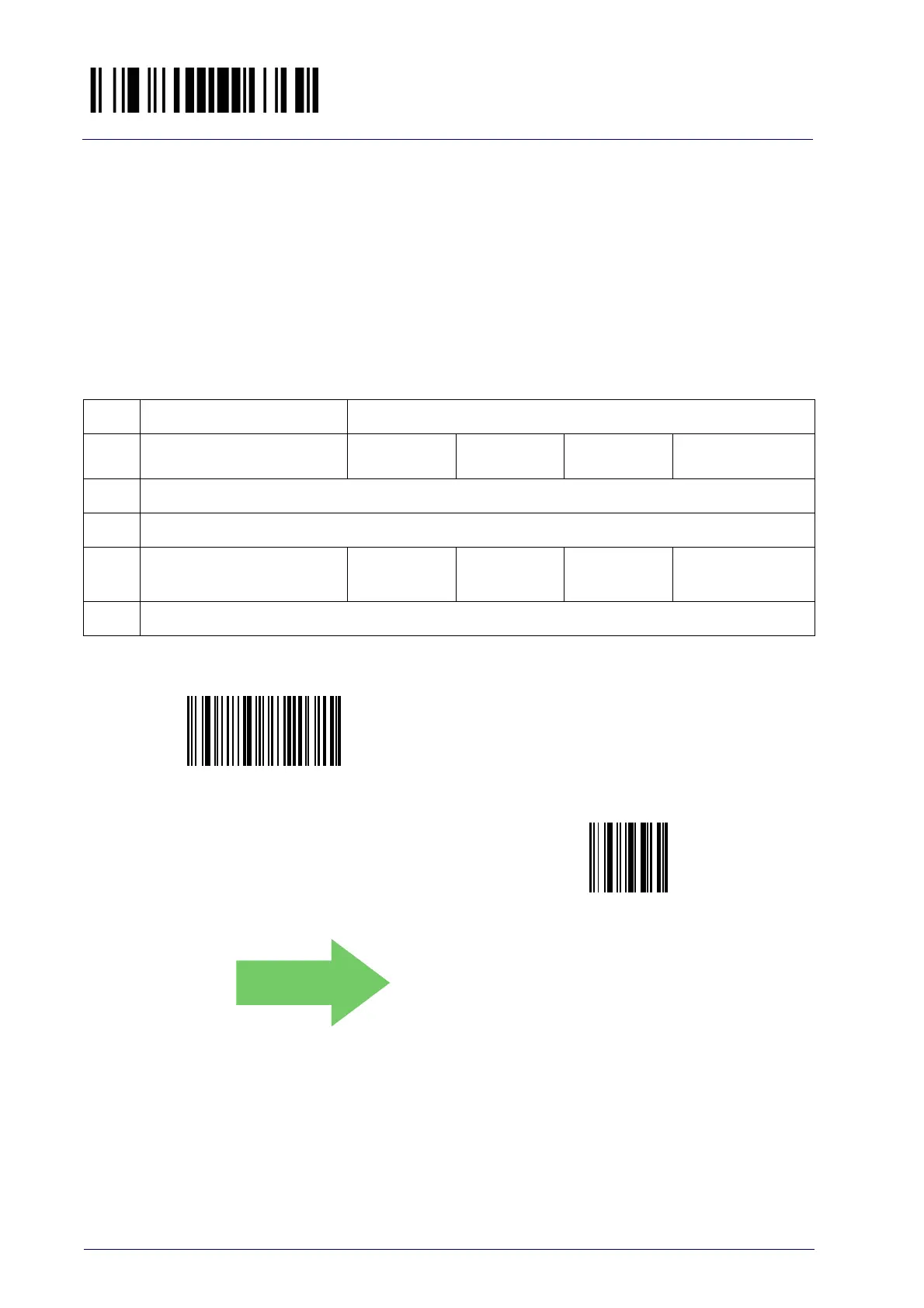

164

PowerScan™ PD9330/PBT9300/PM9300

GS1 DataBar™ Expanded Set Length 2

This feature specifies one of the bar code lengths for GS1 DataBar™

Expanded Length Control. Length 2 is the maximum label length if in Vari-

able Length Mode, or the second fixed l

ength if in Fixed Length Mode.

Length includes the bar code’s data charact

ers only. The length can be set

from 1 to 74 characters. A setting of 0 specifies to ignore this length (only

one fixed length).

Table 19 provides examples for setting Length 2. See page 267 for detailed

instructions on setting this feature.

Table 19. GS1 DataBar™ Expanded Length 2 Setting Examples

STEP ACTION EXAMPLES

1 Desired Setting

00 (ignore sec-

ond length)

07 Characters 52 Characters 74 Characters

2 Scan ENTER/EXIT PROGRAMMING MODE

3 Scan SELECT GS1 DataBar™ EXPANDED

LENGTH 2 SETTING

Scan Two Characters From

Appendix D, Keypad

‘0’ and ‘0’ ‘0’ and ‘7’ ‘5’ and ‘2’ ‘7’ and ‘4’

5 Scan ENTER/EXIT PROGRAMMING MODE

$CXBL2

Select GS1 DataBar™ Expanded Set Length 2 Setting

To configure this feature, scan the ENTER/EXIT bar

code above, then the bar code at left followed by dig-

its from the Alphanumeric characters in Appendix D,

eypad representing your desired character(s). End

by scanning the ENTER/EXIT bar code again.

Make a mistake? Scan the CANCEL bar code to abort

d not save the entry string. You can then start

again at the beginning.

CANCEL

DEFAULT

74 = Length 2 is 74 Characters
