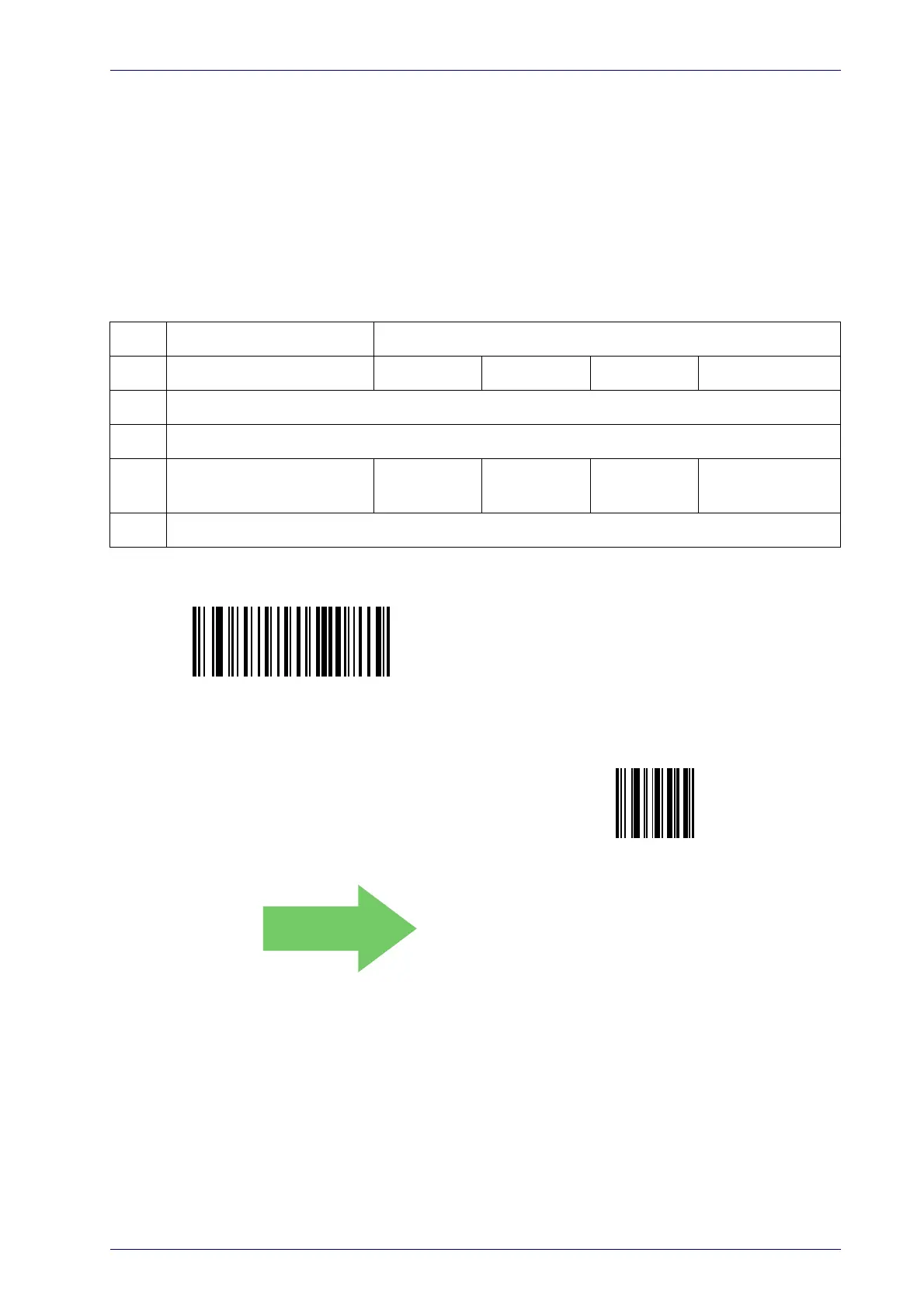

Product Reference Guide
175
Codablock F Set Length 2
This feature specifies one of the bar code lengths for Codablock F Length
Control. Length 2 is the maximum label length if in Variable Length Mode, or
the second fixed length if in Fixed Length Mode. Length includes the bar
code’s check, data, and full-ASCII shift characters. The length does not
include start/stop characters.
The length can be set from 3 to 255 char
acters. A setting of 00 specifies to
ignore this length (only one fixed length). See "Set Length 2" on page 241 for
more detailed programming instructions.
Table 23. Codablock F Length 1 Setting Examples
STEP ACTION EXAMPLES
1 Desired Setting
01 Characters 07 Characters 15 Characters 50 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT CODE 93 LENGTH 1 SETTING
4
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘1’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
Select Codablock F Set Length 2 Setting
To configure this feature, scan the ENTER/
EXIT bar code above, then the bar code at
left followed by digits from the Alphanu-
meric characters in Appendix D, Keypad
repres
enting your desired character(s). End
by scanning the ENTER/EXIT bar code
again.
Make a mistake? Scan the CANCEL bar code to abort
and not save the entry string. You can then start
again at the beginning.
CANCEL
DEFAULT
100 = Length 2 is 100 Characters
To Next Page
