Datalogic PowerScan PBT9500 Software Reference Guide

Setup
6 BC9180™ Base Station/Charger
BC9180 Configuration
The BC9180 configuration can be performed in several ways, by using:
• Datalogic Aladdin software
• Configuration Bar Codes
• Webserver Configuration
Datalogic Aladdin™ software
After connection, the BC9180 can be configured by sending configura-
tion strings from the Datalogic Aladdin™ via the Ethernet interface.

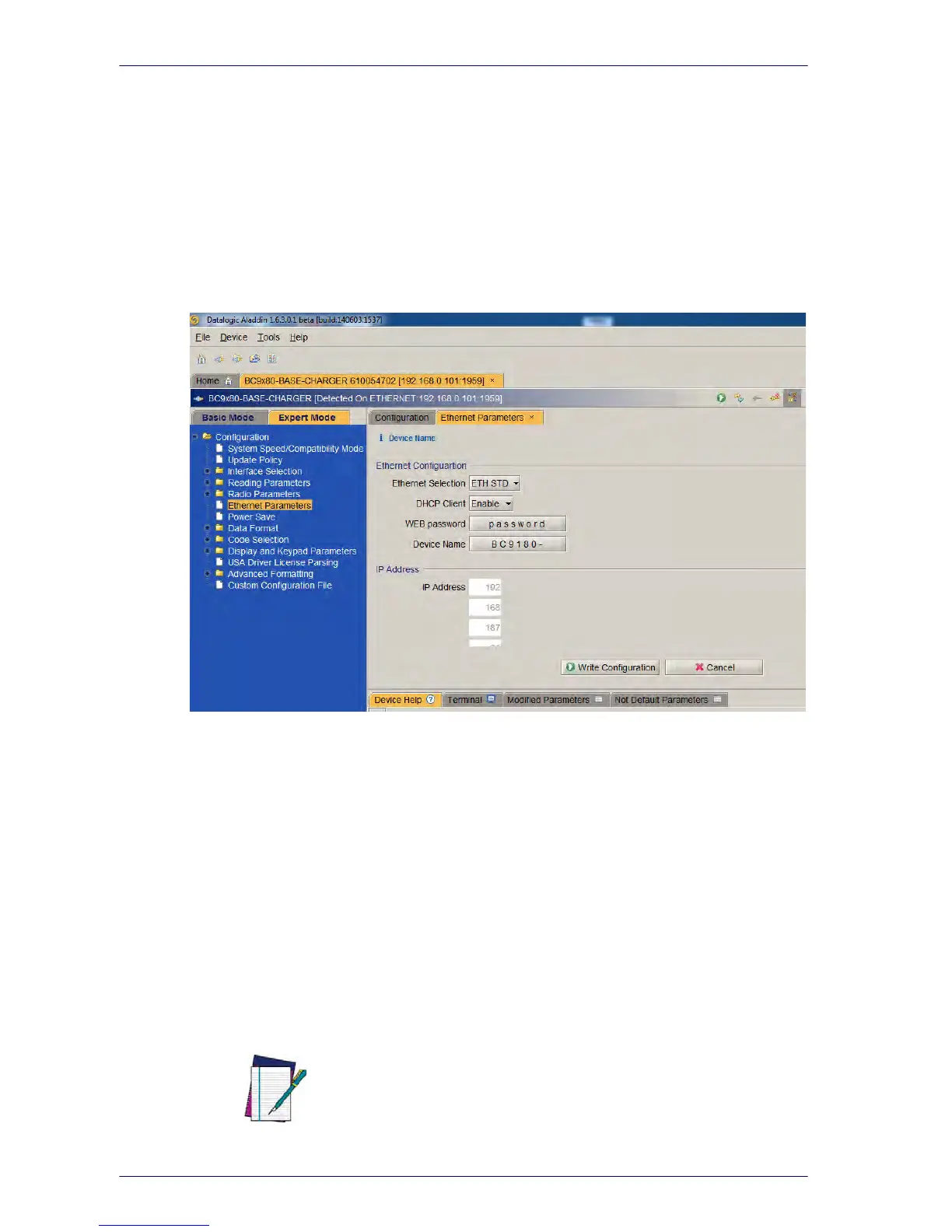

Figure 2. Datalogic Aladdin™ Configuration Screen
Configuration Bar Codes
Link the cradle and the reader using the procedures described in the
PowerScan
™
PM9500 or PBT9500 Quick Reference Guide (QRG). Once the
pairing is complete, you can configure the BC9xx0 cradle by scanning
configuration bar codes from this manual. See Ethernet Host Interface
Parameters Only, starting on page 15.
To configure the BC9180 using the PowerScan
™
9500 reader (paired to
the cradle with the Bind command), follow the procedure for the interface
selected.
Webserver Configuration
After successful connection to the Ethernet network, you can configure
the BC9180™ cradle parameter by using any commercial Web Browser
accessing the URL: http://<BC9180™_IP_Address>.
Then select Configuration from the
menu on the left.
NOTE
You can also use Aladdin software to obtain the IP address of the cradle
after the cradle is connected to the network.
Web Server configuration is always available when the BC9180
™ is con-
nected to the network, REGARDLESS of the interface selection.

Datalogic PowerScan PBT9500 Specifications

General

Type	Handheld bar code reader
Wavelength	680 nm
Sensor type	Laser
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 40 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
Battery life	10 h
Charging time	4 h
Battery capacity	2150 mAh
Power source type	Battery
Number of reads per charge	30000
Number of batteries supported	1
Wireless range	100 m
Operating frequency	2400 - 2480 MHz
Standard interfaces	USB, RS-232
Connectivity technology	Wired & Wireless
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Buzzer	Yes
Certification	IEC 62471 Class 1 LED
Product color	Black, Yellow
Protection features	Shock resistant, Water resistant
International Protection (IP) code	IP65
Cables included	RS-232

Weight and Dimensions

Depth	74 mm
Width	110 mm
Height	212 mm
Weight	380 g
