Datalogic PowerScan PBT9500 Software Reference Guide

ETHERNET/IP™: Industrial Protocol
40 BC9180™ Base Station/Charger
ConfiguringaCompactLogixtoCommunicateviaETHERNET/IP™
This section is meant as a quick start for adding your gateway to a Com-
pactLogix system. The process is applicable for all Rockwell
PLCs that
support I/O messaging to ETHERNET/IP™ Adapter devices.
This document assumes a certain level of knowledge of the Rockwell
Au
tomation environment and starts from a properly configured base
project for your PLC. It also assumes you have a valid connection to the
PLC (via RSLinx) to download the program.
This document also assumes the EDS file
was properly
imported into RSLogix5000
using the EDS Hardware Installation Tool
from Rockwell Automation.

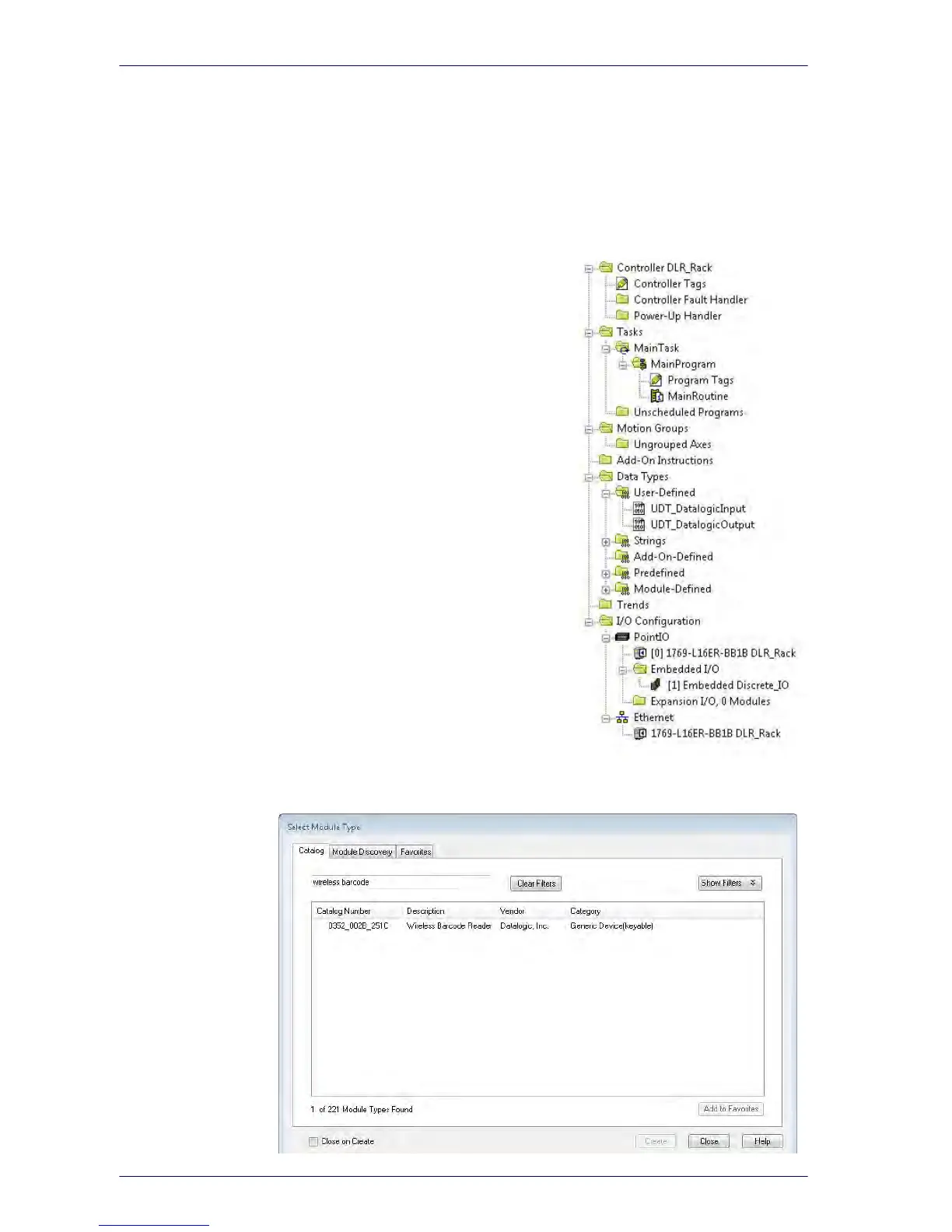

1. Browse to the I/O Configuration tree
for your Ethernet network within
RSLogix5000.
2. Right click on the “Ethernet” network
and select “New Module…”.
3. Type “wireless barcode” into the filter box. Double click on the
entry.

Datalogic PowerScan PBT9500 Specifications

General

Type	Handheld bar code reader
Wavelength	680 nm
Sensor type	Laser
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 40 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
Battery life	10 h
Charging time	4 h
Battery capacity	2150 mAh
Power source type	Battery
Number of reads per charge	30000
Number of batteries supported	1
Wireless range	100 m
Operating frequency	2400 - 2480 MHz
Standard interfaces	USB, RS-232
Connectivity technology	Wired & Wireless
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Buzzer	Yes
Certification	IEC 62471 Class 1 LED
Product color	Black, Yellow
Protection features	Shock resistant, Water resistant
International Protection (IP) code	IP65
Cables included	RS-232

Weight and Dimensions

Depth	74 mm
Width	110 mm
Height	212 mm
Weight	380 g
