ETHERNET/IP™ Object Model
Ethernet Software Reference Guide
41

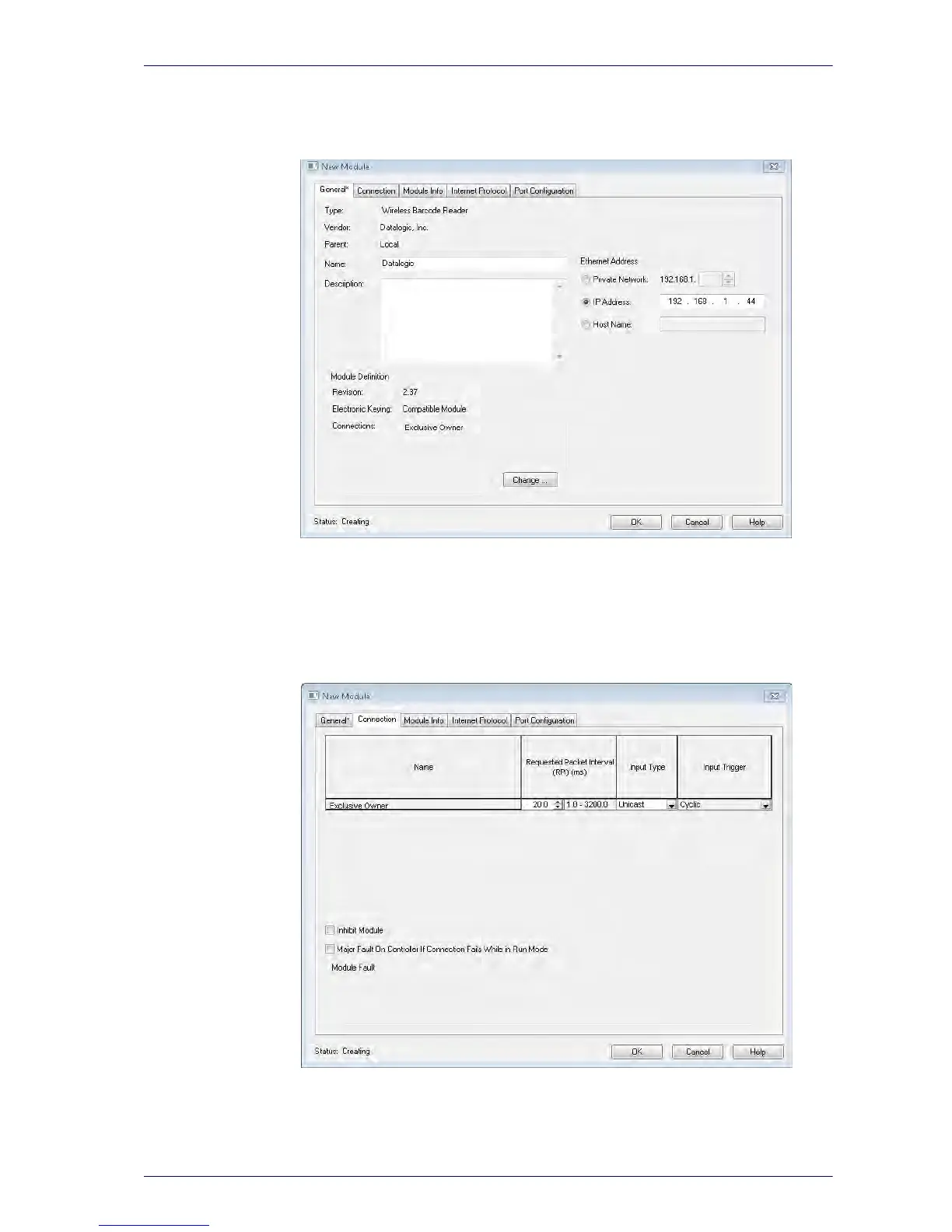

4. Enter the configuration shown below. Name is the value used to add
the tag in the controller variable list, and can be any value. Match
the IP address to your barcode reader.
5. Select the Connection tab and change the RPI. There is usually no
need to go faster than 20ms, since scanning a barcode has a certain
amount of overhead for processing. The other settings should
match the below settings. Press OK.
