Class Series 2 Programmer’s Manual 309
Appendix U

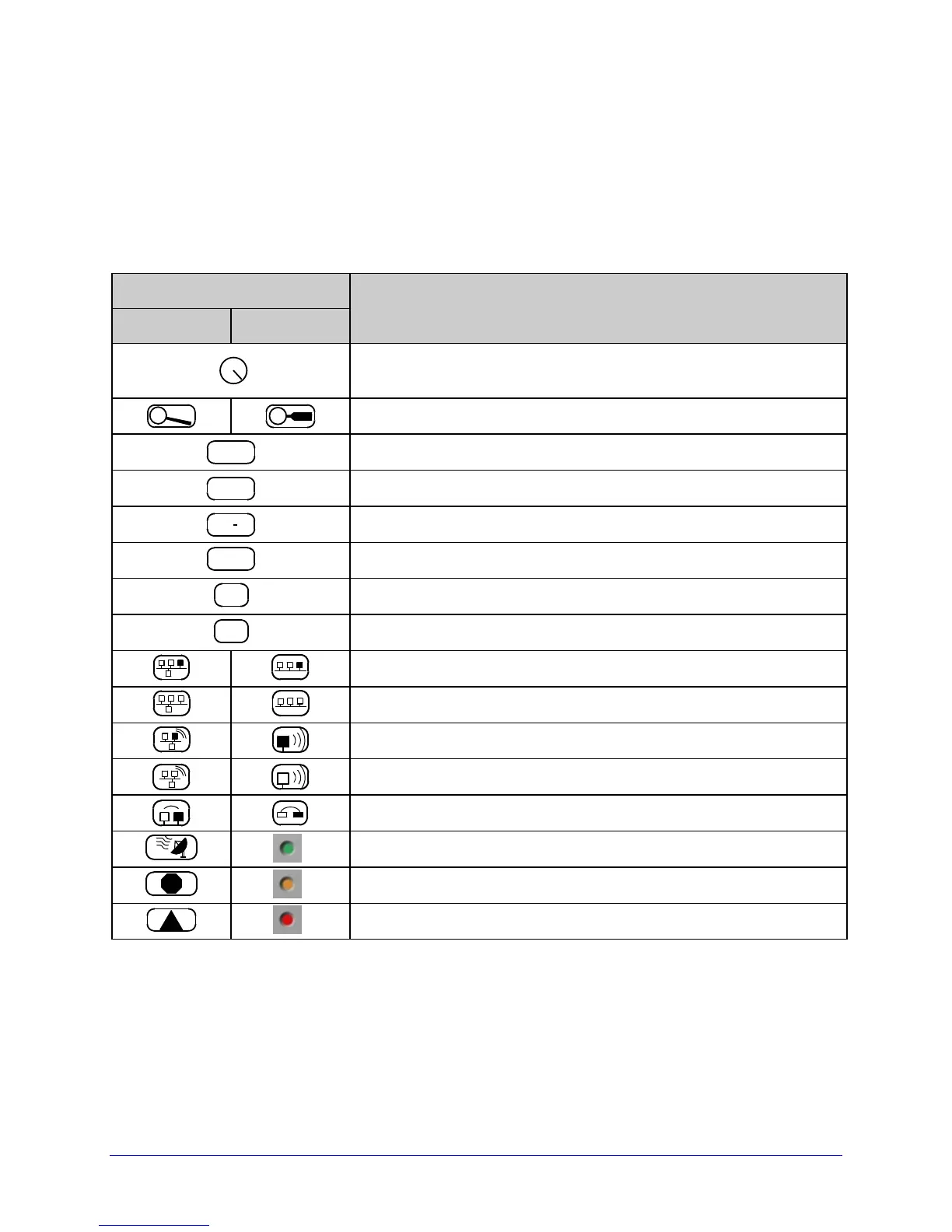

Graphics Display Icon Key
Display Size
Large Small
Description
Initialization, typically brief (but a damaged or invalid printhead
can delay the process).
M
ENU
Display large fonts; see Section 4.1.2.
DPL
Input Mode – DPL; see Section 4.2.4.
LINE
Input Mode – LINE; see Section 4.2.4.
PL Z
Input Mode – PL-Z; see Section 4.2.4.
RFID
RFID detected.
SD
SD memory card detected.
USB
HOST
USB memory (or keyboard) detected.
Wired network detected.
Server inaccessible.
WLAN associated with Access Point.
WLAN not associated with Access Point.
WLAN ADHOC Mode.
*
Receiving data.
STOP
*
Paused.
!
*
Faulted, see Section 6.1.2.
