4.5.3 Automation Buttons
The Automation Buttons screen shows existing buttons assigned to an Event. Information on the
associated event appears below each configured button.
Menu (System) > Automation > Buttons

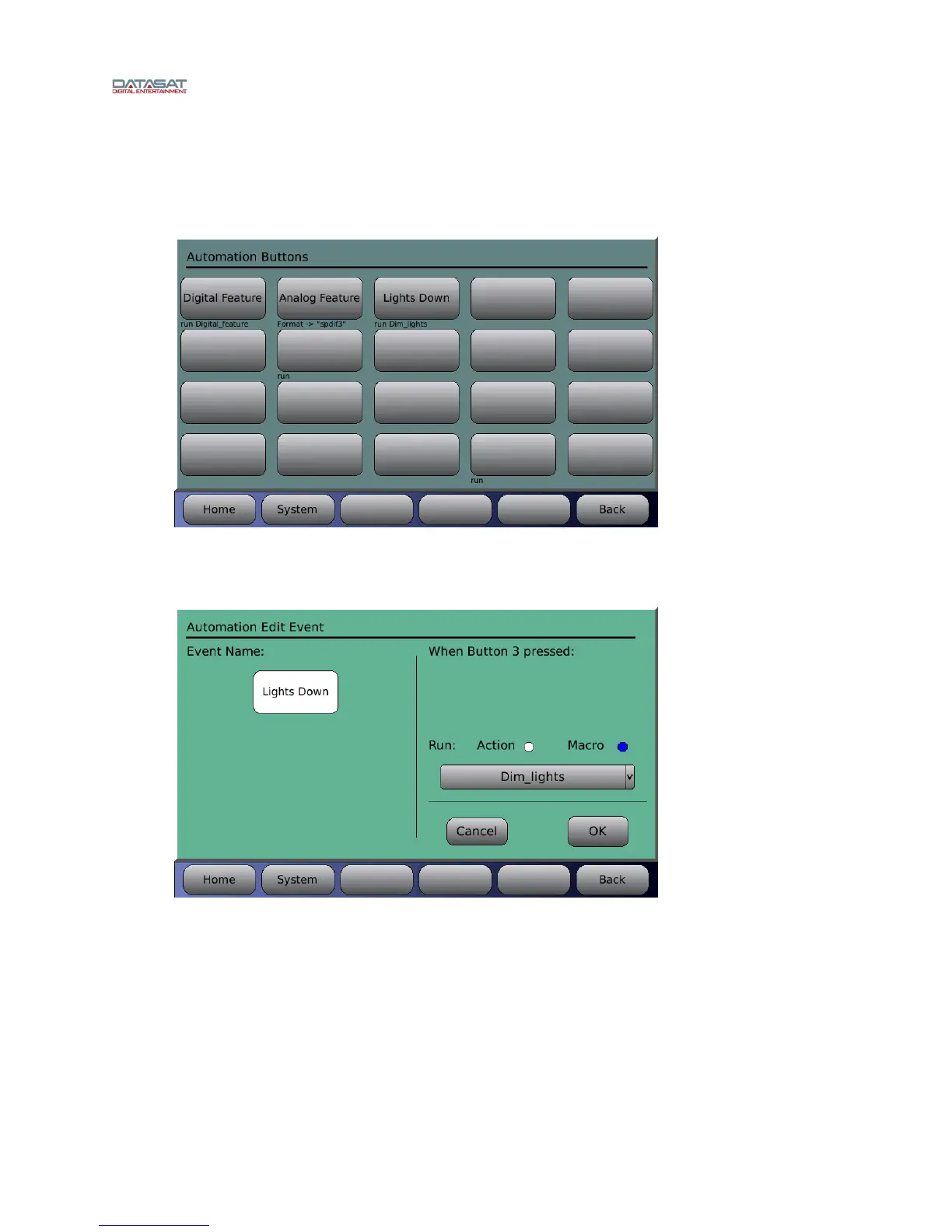

Figure 87. Automation Buttons
To configure a button, touch the button to select it.
A screen will open that allows both the button title and the event assignment to be configured.
Figure 88. Button Assignment
To enter or change the button title, touch the Event Name box to select. A keyboard screen
will open allowing you to type in a new title for this button.
To assign a macro to the button, select the Macro button, touch the Macro drop down list
and select from the listing. Touch OK when finished, or touch Cancel to cancel this task.
To assign an Action to the button, select the Action button and touch the white box that
appears below it. This will bring up the Automation Edit Action screen. See page 99
above.
Touch OK when finished,
or touch Cancel to cancel this task.
