AP20 Installation and Operating Guide Page 25
AP20 Installation & Operating Guide Document # 9301H39200 Ver. 1.25
2.0 Installation and Set Up
2.1 Installation Checklist
This checklist summarizes the installation and setup procedures for the AP20.

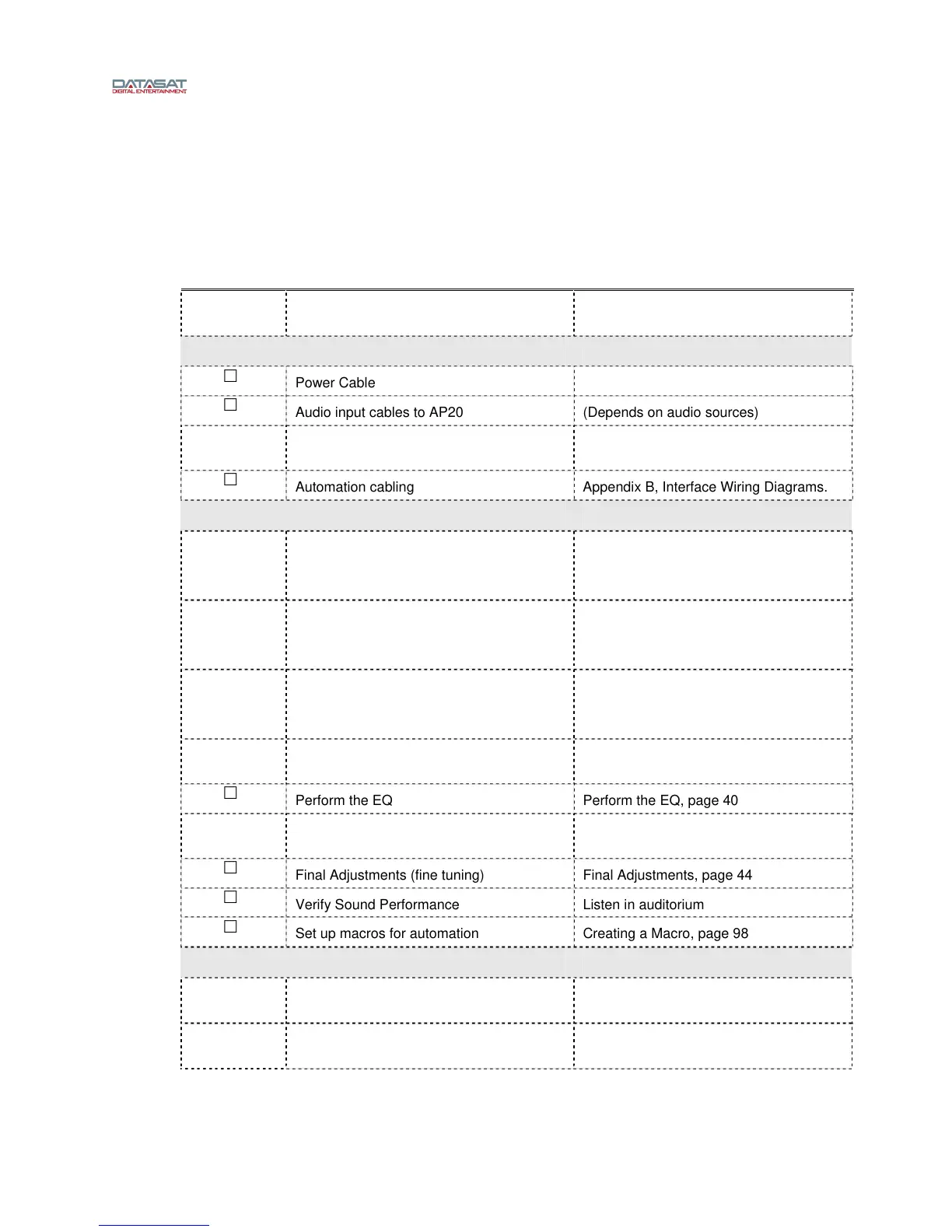

Table 2: AP20 Installation and Setup
Completed Task Description Refer to:
Install AP20 in Equipment Rack Chassis Rack Mounting and Connection,
page 28
CONNECT CABLING:
Power Cable
Audio input cables to AP20 (Depends on audio sources)
Audio output cable from AP20 Analog Out
to Audio Power Amps
Appendix B, Interface Wiring Diagrams.
Automation cabling Appendix B, Interface Wiring Diagrams.
ADJUST AND TEST
Theater Equipment Check Check speakers, amplifiers, auditorium
conditions
Theater Equipment Check, p
age 35
Assign channels On AP20: Menu (System) > Format >
Channel Profile > Channel Names
Assign Channels on AP20, page 35
Verify channel assignments Listen in auditorium
Verify Channel Assignments in
Auditor
ium, page 37
Set levels to establish a baseline Set levels to establish a baseline, page
39
Perform the EQ Perform the EQ, page 40
Perform Subwoofer Parametric EQ Subwoofer EQ – Parametric EQ, page
42
Final Adjustments (fine tuning) Final Adjustments, page 44
Verify Sound Performance Listen in auditorium
Set up macros for automation Creating a Macro, page 98
SYSTEM SECURITY
Save AP20 configuration to USB flash
drive
Saving and Restoring Configuration
Files, page 58
Set Password to Prevent Unauthorized
Access, if Appropriate.
Access Control, page 60
