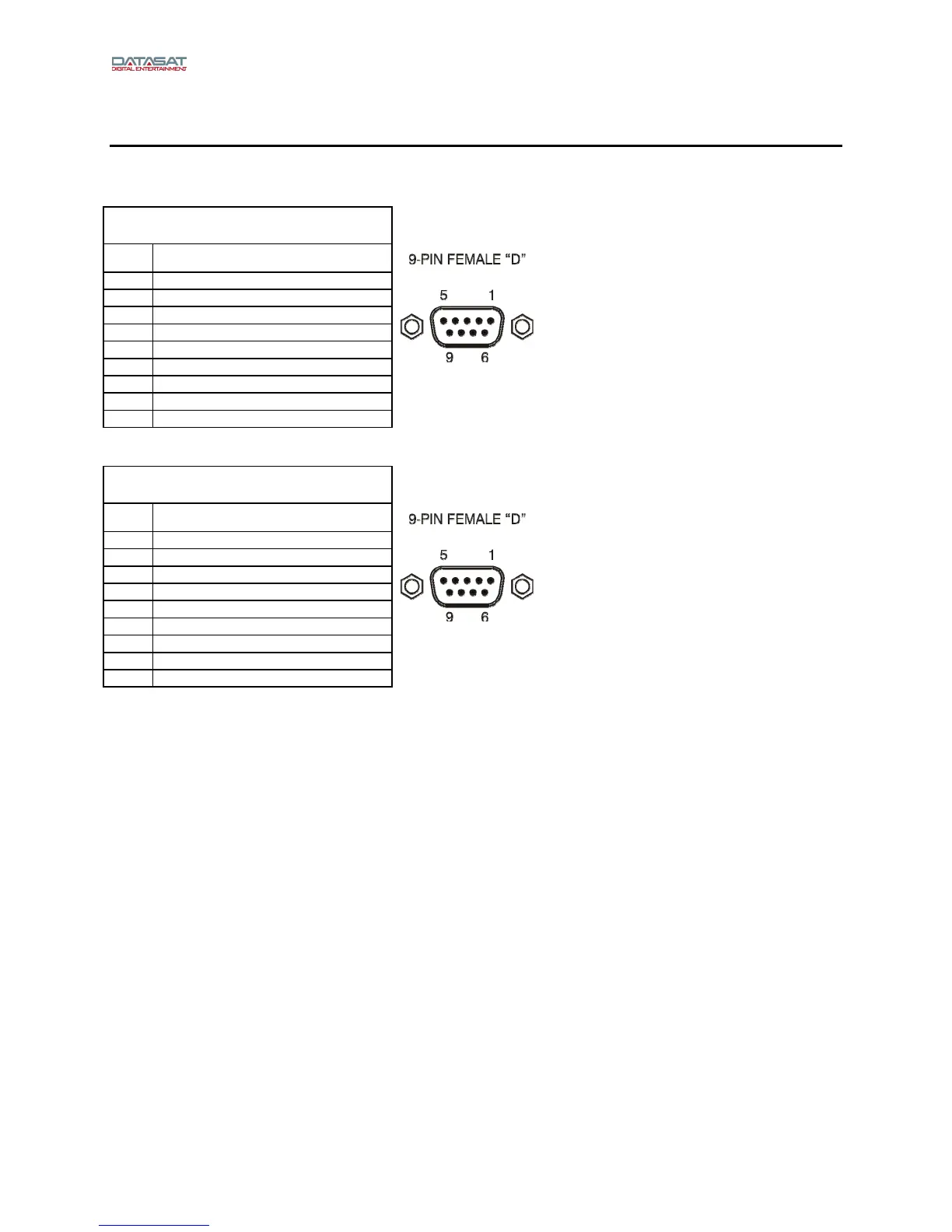

H338 Optical Film Card Option (Rear panel plug in board).
PROJECTOR 1 INPUT (Optional)–
DB9F
Pin Description
1 LT (+)
2 LT / RT (-)
3 LT/ RT (-)
4 RT (+)
5 LT / RT (-)
6 LT / RT Analog GND
7 N/C
8 N/C
9 LT / RT Analog GND
N/C = No connection
PROJECTOR 2 INPUT (Optional)–
DB9F
Pin Description
1 LT (+)
2 LT / RT (-)
3 LT / RT (-)
4 RT (+)
5 LT / RT (-)
6 LT / RT Analog GND
7 N/C
8 N/C
9 LT / RT Analog GND
N/C = No connection
