AP20 Installation and Operating Guide Version 1.25
Appendix E. 8-Channel AP20 E-1 Document #: 9301H39200 Ver. 1.25
Appendix E: 8-Channel AP20 Version and H332 Upgrade
Introduction
The 8-channel version of the AP20 (P/N MD10H33001) contains all features of the standard 16 channel version (P/N
MD10H33000) with the exception of Digital Audio channels 9-16 in and out, and Analog Audio channels 9-16 out.
The 8 channel AP20 may be upgraded to 16 channels by adding the H332 circuit card (P/N 9030H33200). See page
G5.
AP20 8-Channel Screens
The following screens differ from the standard 16-channel version. All other screens are the same as those in the
standard 16-channel version, and are described in the other sections of this manual.

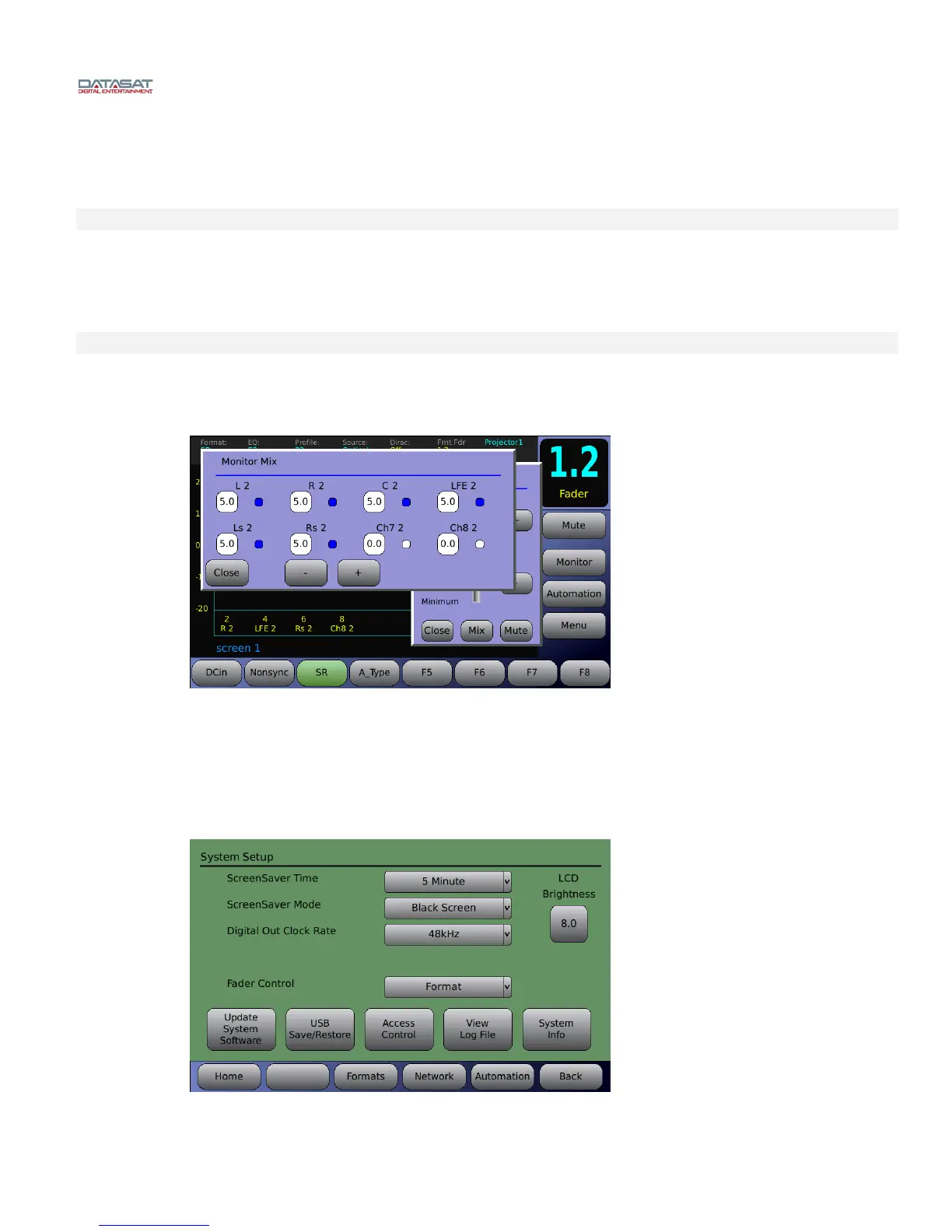

Home Screen – Monitor Mix
Figure 1 – Monitor Mix
Home → Monitor → Mix
Channel selection is limited to 8 channels.
System Screen - Output Mapping not available
Figure 2 – System Screen
The Output Mapping feature found on the System setup screen of the 16-channel AP20 (Menu (System) → Output
Mapping) is not available on the 8 channel version.
