Isometric Drawings and Parts Lists
Repl
acement Parts and Isometric Drawings
4 - 6
0070-10-0691
Accutorr Plus Service Manual

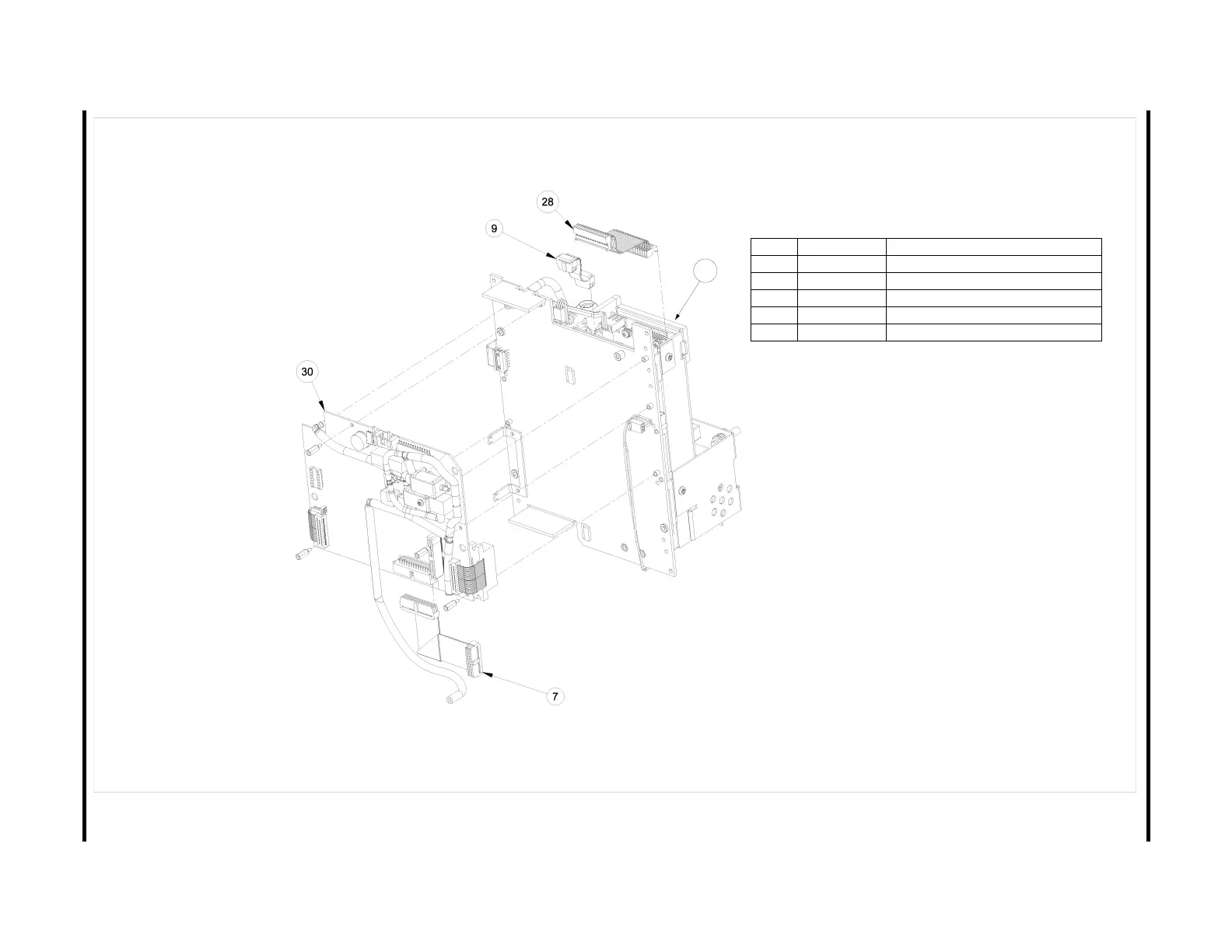

FIGURE 4-3
ITEM
P
ART NUMBER
DESCRIPTION
7
0012-00-1721
Cable, LCD Inter
face
9
0012-00-1690
Cable, S
pO2 to CPU/NIBP Interface
28
0012-00-1689
Cable, Power
Supply
to CPU/NIBP Interface
30
0670-00-0814-01
PCB, CPU/NIBP
31
0014-00-0083-02
Power Supply (Li-Ion)
31
65
67
