Accutorr Plus Service Manual 0070-10-0691 5 - 7
Calibration Service Diagnostics
5.5.3 Keypad Test
1. Press the Room Up arrow to change the Room Number to “1”.
2. Press the Start NIBP key to run the keypad test.
3. Press any key on the keyboard. A number will appear in the Patient Bed Letter
Display. This number is identified in Figure 5-1 on page 5-6. Verify that the correct
number appears in the Patient Bed Letter Display when each key is pressed.

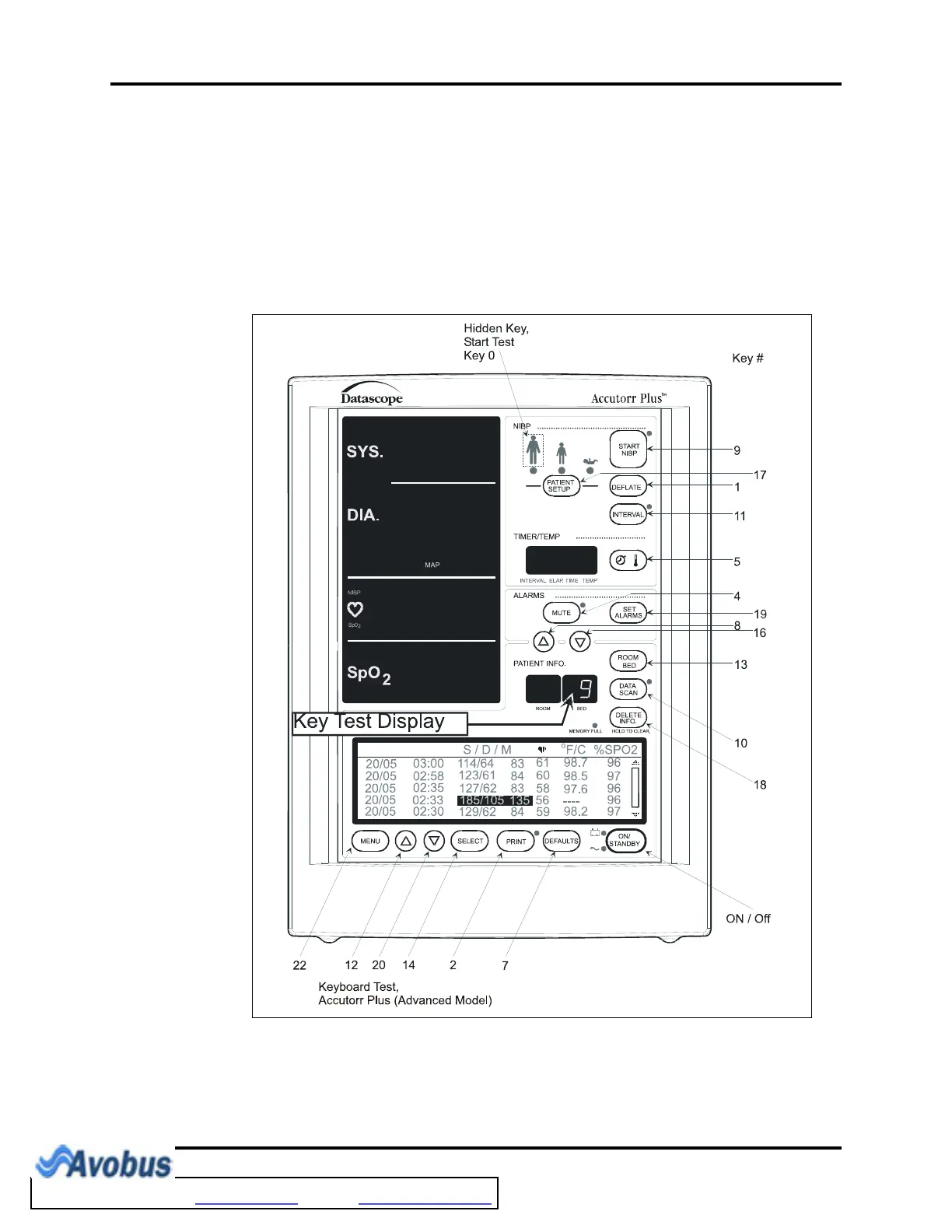

FIGURE 5-2
4. Press the DEFLATE key for 3 seconds to exit keypad test.
