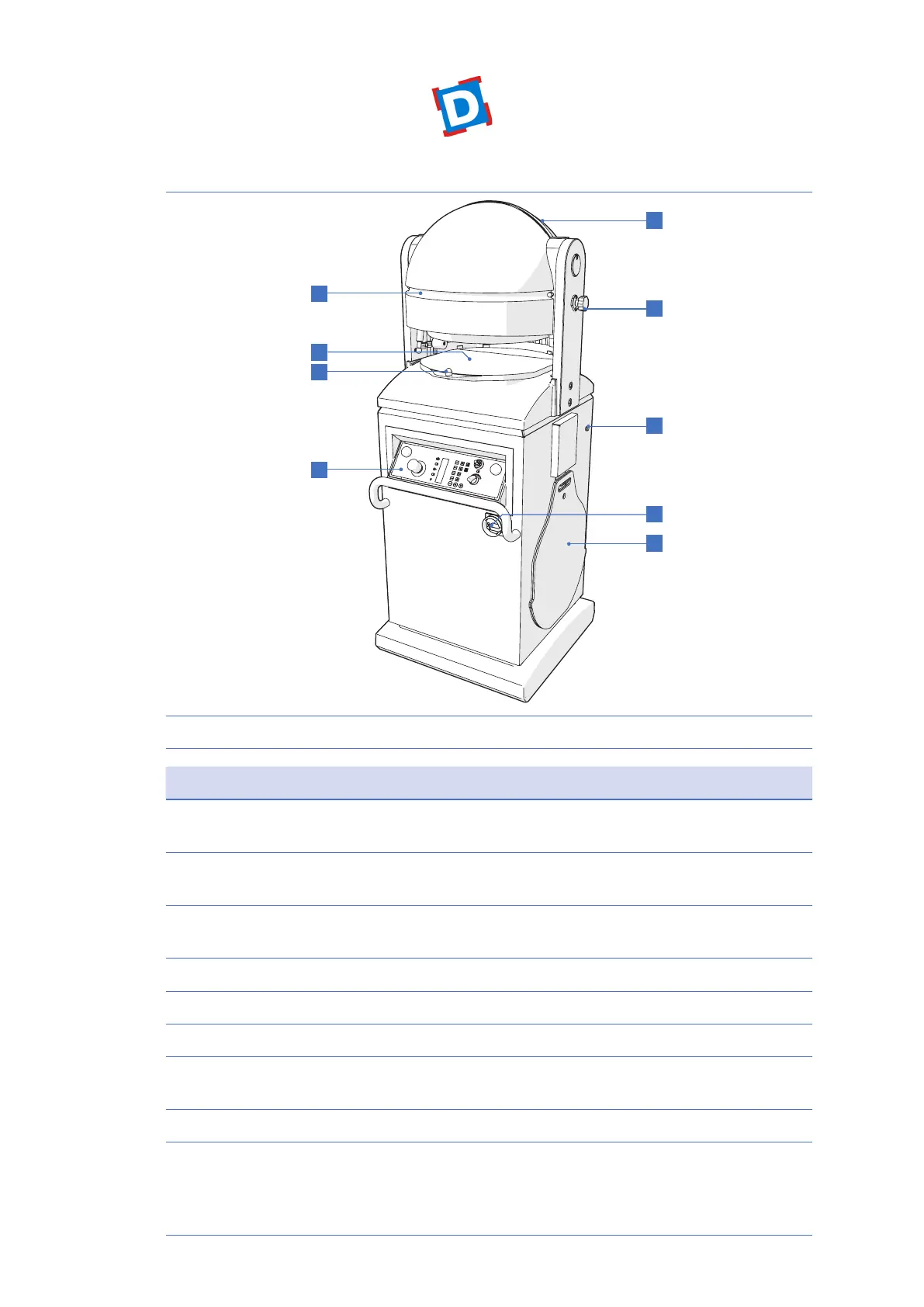

Figure 1 Main components
No. Component Function
1 Front cover The front cover shields the dividing disc and dividing
knife.
2 Rounding table The rounding table supports the rounding plate during
processing by the machine.
3 Centring pin The centring pin locks the rounding plate during
processing by the machine.
4 Control panel The machine is operated from the control panel.
5 Rear cover The rear cover shields the dividing disc and dividing knife.
6 Locking pin The locking pin locks the dividing disc.
7 Hex bolt for V-belt tension The tension of the V-belt can be adjusted using the
provided spanner.
8 Main switch Themainswitchturnsthemachineonando.
9 Rounding plate The rounding plate, with a spread-out piece of dough
on it, is placed on the rounding table. After processing,
the rounding plate is removed and the dough has been
divided and rounded.
