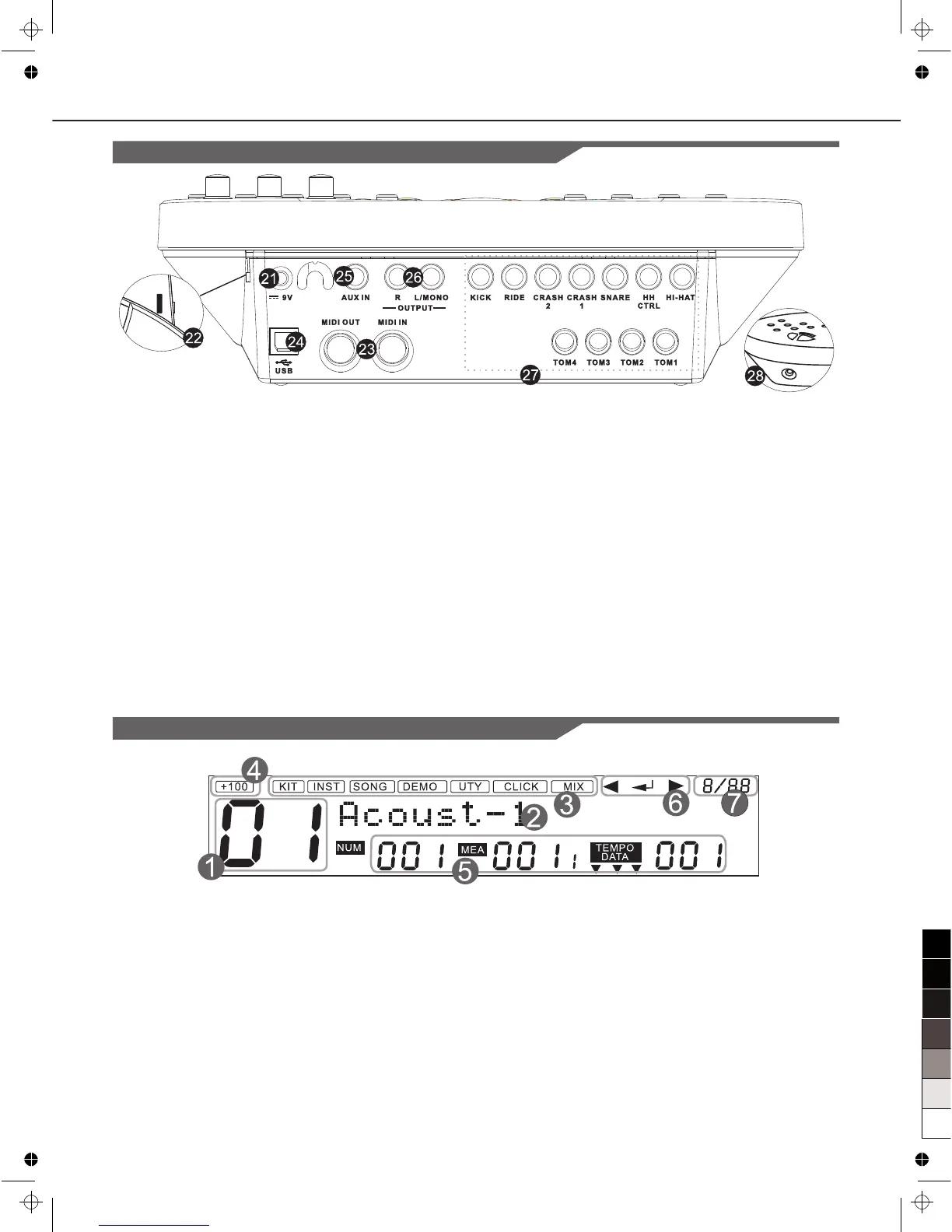

21. DC input
Connect for the DC 9V power adapter.
22. Power switch
This switch turns power on and off.
23. MIDI IN and MIDI OUT
These ports allow communication with other
products equipped with a MIDI interface or other
USB host devices with USB interface. Please see
the MIDI section of the advanced manual for
details.
24. USB port
This port is used to connect to a computer or a
USB host device (MIDI In/Out via USB).
Display
25. AUX IN
This stereo input jack is used for an external
sound source such as an MP3 or CD player.
26. Line output jacks
Stereo output connection to an audio system or
drum amplifier.
27. Pad input jacks
Input connections for Kick, Snare, Tom, Cymbal
pads and Hi-Hat control pedal.
28. Phone jack
This stereo jack is used to connect headphones.
1. Current Kit index
2. Main Display
A dot matrix that allows displaying variable size
fonts and icons.
The main part of this dot matrix is used to display
the current kit or song name, and all the various
Menus.
3. Mode icon
The top line of the LCD display current mode icon.
(“Kit” icon is always lightened)
4. Current Kit index
5. Song num, Measure, Beat, Tempo
(In menu pages, when selecting group, voice or pad
pattern index, the icon “DATA” is lightened,
indicates the current voice or song’s index)
6. These icons indicate that the
[PAGE-] / [SAVE/ENTER] / [PAGE+] is valid
7. The current time signature
