Upgrade Procedure
Step 4:
Remove
System Cover

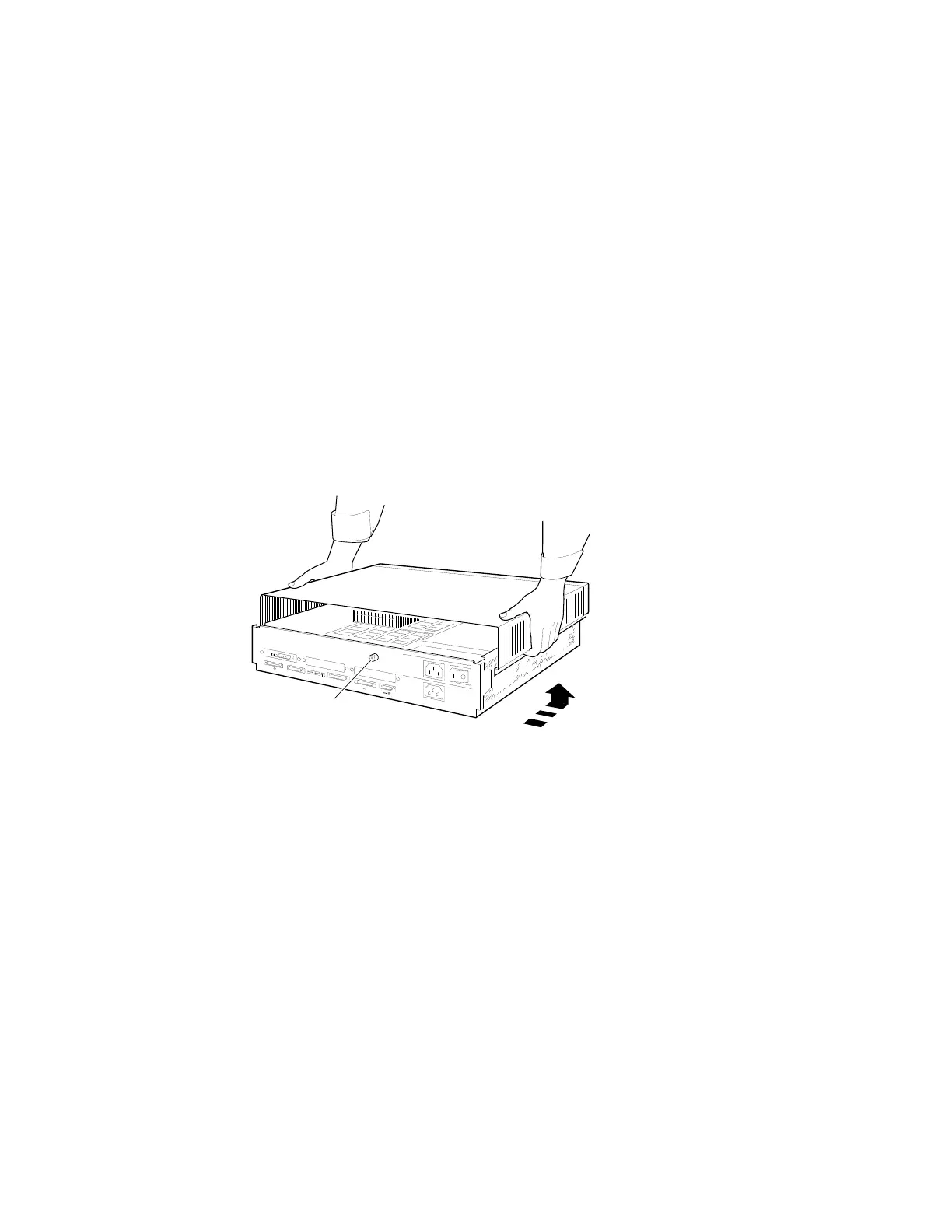

1. Loosen the captive screw on the back of the system unit.
This captive screw can be loosened but not removed.
2. Grasp each side of the cover with your hands, and pull the
cover straight toward the front about 5.5 cm (2 inches). Pull
the cover up and set it aside.
0
1
2
2
PMAG-C
V~100-120 A 3.0
V~220-240 A 1.7
V~100-120/220-240
A 7.9/4.2
Hz 50-60
W 359
MLO-010006
Captive
Screw
Upgrading a DECsystem 5000 Model 133/150 2–3
