Upgrade Procedure
RE_EN05177A_90

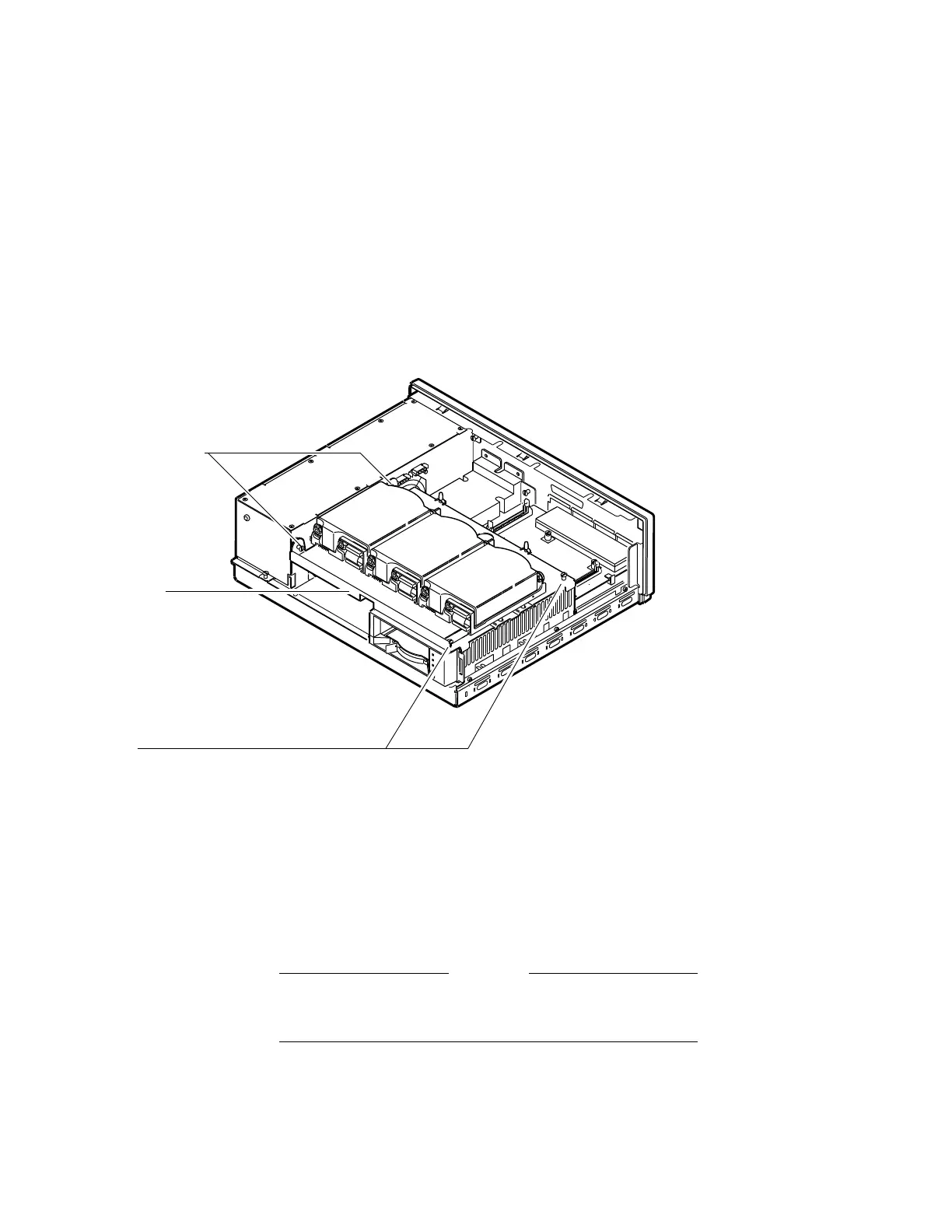

Captive Screws (2)
Upper Drive
Captive
Screws (2)
Mounting Panel
3. Lift the upper drive mounting panel from the lower drive
mounting panel and gently set it aside.
Step 6:
Remove EMI
Shield, If
Present
Your system may have an EMI shield located between the
upper and lower drive shelves. The shield has several "fingers"
touching the upper shelf.
Warning
Do not pull the EMI shield directly up out of the system.
This may cause injury.
