Upgrade Procedure

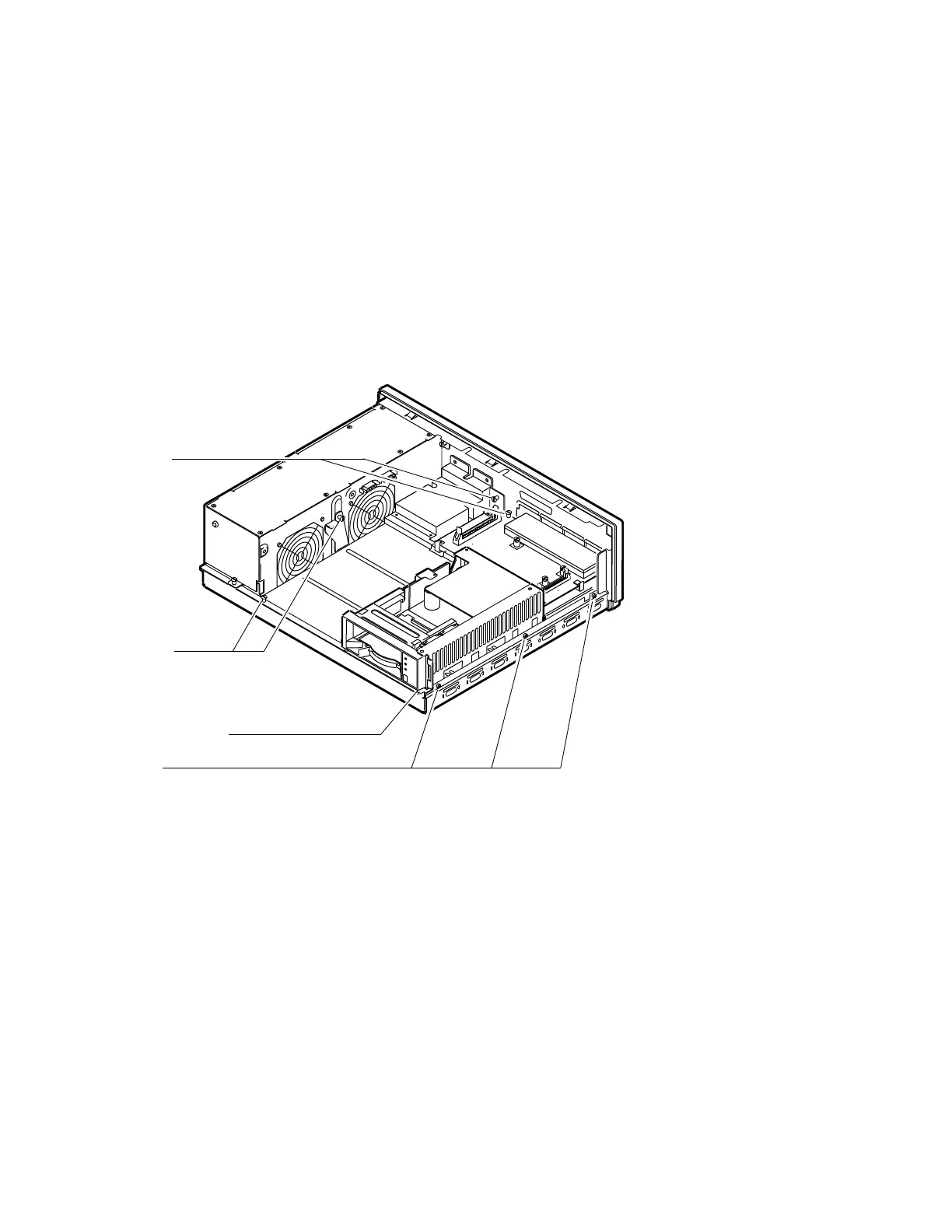

Figure 5–3 Drive Mounting Panel
RE_EN05181A_90
Captive Screws (2)
Lower Drive Mounting Panel
Captive Screws (2)
Panhead Screws
(3 Loosened)
Step 9:
Remove Device
To remove the device:
1. Turn the drive mounting panel over, and while supporting
the device with one hand, loosen the two screws in the
keyhold slots holding the device to the mounting panel.
Remove the other two screws.
2. Slide the device to one side and remove it from the mounting
panel.
3. Remove the drive mounting bracket by removing the screws
that secure the drive to the mounting bracket.
5–10 Upgrading a DECsystem 5100
