Upgrade Procedure
0
A
B
1
0
Captive
Screws
MLO-010737
Step 5:
Remove Fixed
Disk Drives
1. Press and hold the spring clip that locks the disk drive in
position.

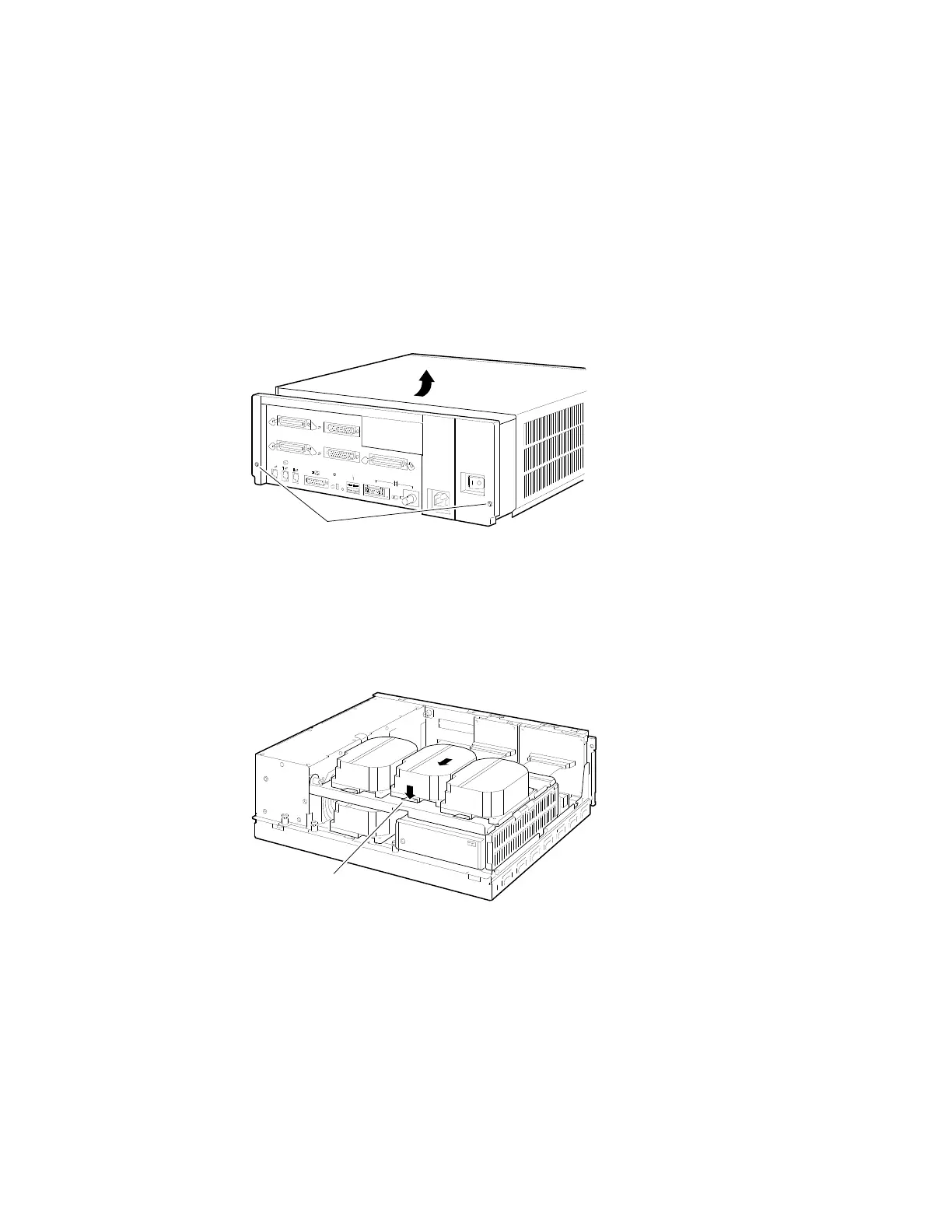

2. Refer to the figure. Push the disk drive towards the spring
clip until the rubber grommets on the bottom of the disk
drive release from the cutouts in the drive mounting shelf.
MLO-010738
Spring
Clip
3. Lift the disk drive up from the drive mounting shelf and
release the spring clip.
4. Disconnect the SCSI and power cables from the back of the
drive.
5. Remove all drive mounting brackets by removing the screws
that secure the drive to the mounting bracket.
6. Set the drive aside on an antistatic mat.
Upgrading a MicroVAX 3100 Model 40/80/90, VAX 4000 Model 100 10–3
