The quantity of heat (kWh value) can only be used for
checks carried out for personal reasons.
Flat solar panels
Solar panel
installation
Area (m
2
)
Number of
panels
Flow rate
(l/h)
Flow rate
(l/min)
3...5 1 or 2 400 6,7
6...8 3 or 4 300 5,0
8...10 4 or 5 250 4,1
8...10 2x2 750 12,5
12...15 2x3 670 11,2
16...20 2x4 450 7,5
12...15 3x2 850 14,2
18...23 3x3 800 13,4
24...30 3x4 650 10,9
16...20 4x2 1200 20,0
24...30 4x3 850 14,2

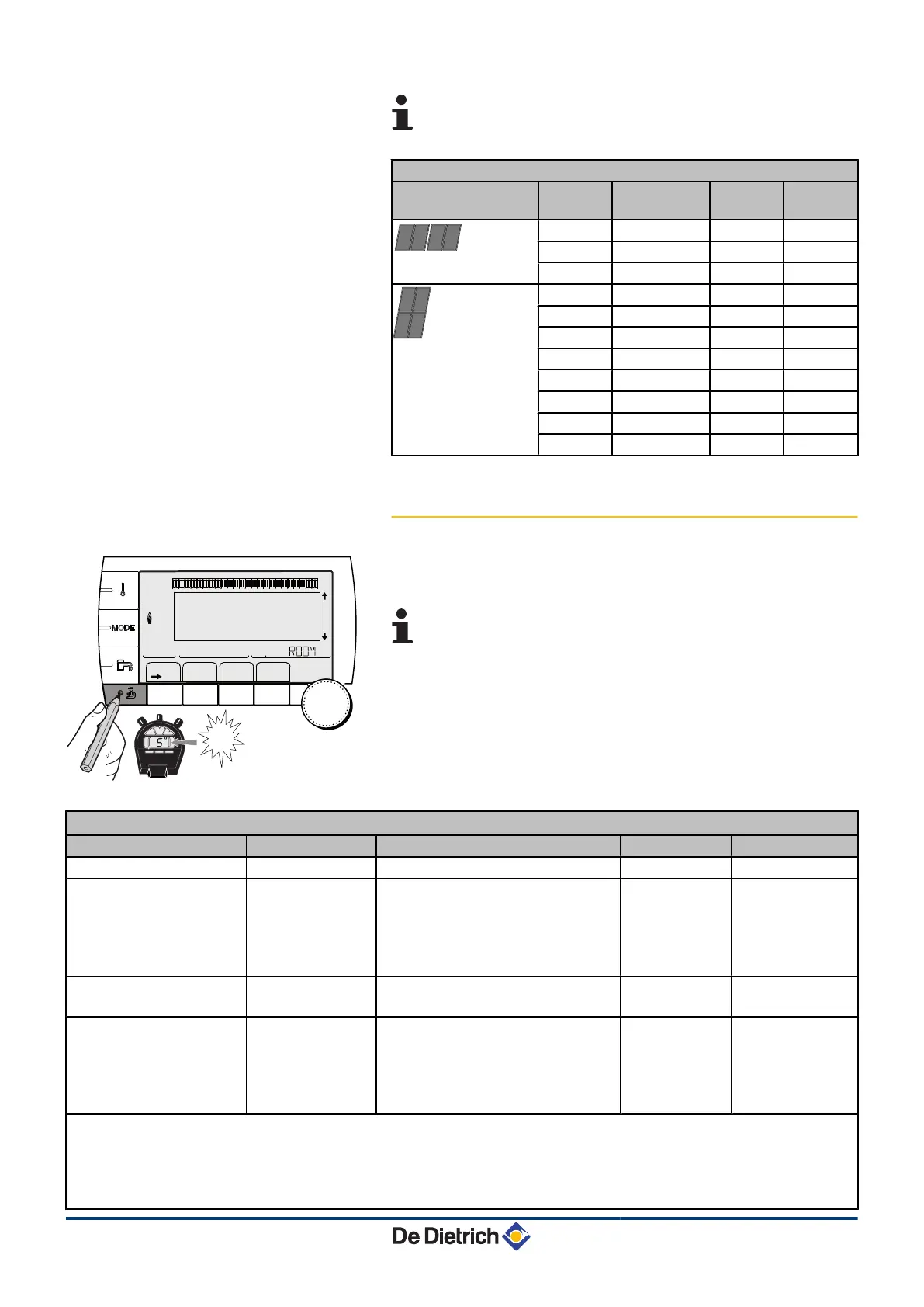

5.6.4. Configuring the network
1. Access the installer level: Press key
-
for around 5 seconds.
2. Select the menu #NETWORK.
4
Turn the rotary button to scroll through the menus or
modify a value.
4 Press the rotary button to access the selected menu
or confirm a value modification.
¼
For a detailed explanation of menu browsing, refer
to the chapter: "Browsing in the menus", page 75
3. Set the following parameters:
Installer level - Menu #NETWORK
(1)
Parameter Adjustment range Description Factory setting Customer setting
CASCADE:
ON / NO ON: System in cascade
NO
VM NETWORK
(2)
Specific menu: Enlist VMs in cascade
mode
¼ See chapter: "Connecting
VM iSystem in cascade", page
101
MASTER CONTROLLER
(3)
ON / NO Configure this control system as
master on the bus
ON
SYSTEM NETWORK
(4)
Specific menu: Enlist generators or
VMs in cascade mode
¼ See chapter: "Connecting
VM iSystem in cascade", page
101
(1) The menu is displayed only if the INSTALLATION parameter is set to EXTENDED
(2) The parameter is only displayed if CASCADE: is set to NO
(3) The parameter is only displayed if CASCADE: is set to ON
(4) The parameter is only displayed if MASTER CONTROLLER is set to ON
(5) The parameter is only displayed if FUNCT is set to PARALLEL
(6) The parameter is only displayed if MASTER CONTROLLER is set to OFF
1
1
2
2
r
c
STD
(
'
t
v
0 2 4 6 8 10 12 14 16 18 22 2420
p
b
AUTO
x
c
r
j
M
g
m
SUNDAY 11:45
5
"
TEMP.: 68°
C002235-F-04
